High Speed Vertical Form Fill Seal Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Commodity, Food
Packaging Type:
Bags
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Fresh Noodle Packing Machine (HL-300S)NegotiableMOQ: 1 Set -
Dog Food Packing MachineNegotiableMOQ: 1 Set
-
YS800/1E Automatic Multifunctional Pillow Compression Packing MachineNegotiableMOQ: 1 Set
-
DXDK-320 for Automatic Multi-line Packaging Machine, Coffee Filling Packaging MachineUS$ 2,000 - 5,000MOQ: 1 Set
-
Series Automatic Pillow Style Daily Commodity Packing Machine for CommodityNegotiableMOQ: 1 Set
Condition
New
Application
Commodity, Food
Packaging Type
Bags
Packaging Material
Plastic
Automatic Grade
Automatic
Driven Type
Electric
Voltage
230V
Power
3.5KW
Place of Origin
Zhejiang, China
Brand Name
Huili
Model Number
NHK-26
Weight
1800kg
Dimension(L*W*H)
2300x1650x1700mm
Certification
CE/ISO
After-sales Service Provided
Engineers available to service machinery overseas

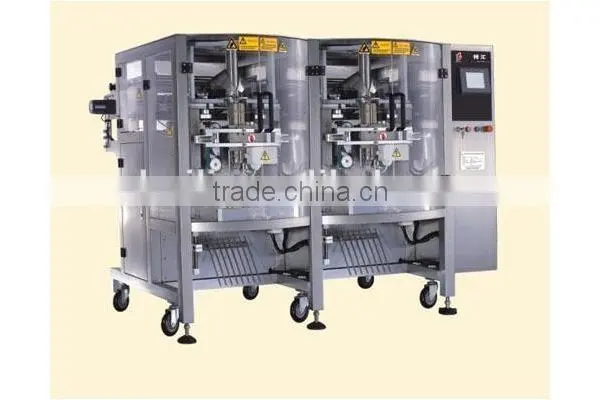

NHK-Twin High Speed Vertical Form Fill Seal Machine (Servo driven)
High Speed Vertical Form Fill Seal Machine (Servo driven) NHK series is our new vertical form fill seal wrapper for pillow pack bags starting from a flat reel of heat-sealable packing film.
The machines is driven by servo motors, controlled by PLC and interfaced by touch screen. The particular hardware configuration allows the machine to achieve up to 110 bags per min.
Combined with NHK 14 or 16 multihead weigher the NHK Vertical Form Fill Seal Machine is suitable for packing Dry Processed Food and Fresh Food: Sank Foods, Seeds (Pulses), Coffee (granules/beans), Tea, Sugar, Grated Cheese, Bakery Products, Candies & Confectionery, Rice, Nuts & Dried Fruits, Spices, Small Pasta pieces, Pet Food (pellets) etc.
Combined with NHK 14 or 16 multihead weigher the NHK Vertical Form Fill Seal Machine is suitable for packing Non Food: Bolts, Washers, Nuts, Auto parts, Electrical parts, Plumbing Parts and furniture assembly parts etc.
Main Features:
Panasonic Servo-drive film transport system.
Panasonic Servo-drive intermittent motion end seal jaws.
Omron PLC and touch screen operation interface with choice of languages and access restriction feature.
Full synchronization for printers and feed systems.
Simple and fast bag size changeover with one-piece forming sets.
Exact alerting to prevent product to be jammed between the jaws.
Photocell for centering of printing.
Stainless steel as standard version for excellent durability and sanitation.
Optional Elements:
Gas flushing (Air or Nitrogen gas), Tear notch, Gusseted device, Air expeller, Hole punch device, Material stopper, Bag support, Polyethylene Ropex pulse sealing system with water cooling and Vacuum bag system
-
NHK-26 Twin VFFS Packaging machines
Bag style: Pillow bag, gusseted bag, etc.
Bag Width 75mm to 240mm on pillow bag
Bag length Up to 300mm
Packing speed: Max. 200 bpm
Power supply: 230VAC 3.5KW
Compressed air: 0.2Ml/min, 0.6Mpa
Wooden-case: Size: 2300x1650x1700mm
Weight: Net 1500 Kg Gross 1800 Kg
-
NHK-27 Twin VFFS Packaging machines
Bag style: Pillow bag, gusseted bag, etc.
Bag Width 75mm to 300mm on pillow bag
Bag length Up to 500mm
Packing speed: Max. 200 bpm
Power supply: 230VAC 4.5KW
Compressed air: 0.2Ml/min, 0.6Mpa
Wooden-case: Size: 2400x1750x1800mm
Weight: Net 1700 Kg Gross 2000 Kg
High Speed Vertical Form Fill Seal Machine (Servo driven) NHK series is our new vertical form fill seal wrapper for pillow pack bags starting from a flat reel of heat-sealable packing film.
The machines is driven by servo motors, controlled by PLC and interfaced by touch screen. The particular hardware configuration allows the machine to achieve up to 110 bags per min.
Combined with NHK 14 or 16 multihead weigher the NHK Vertical Form Fill Seal Machine is suitable for packing Dry Processed Food and Fresh Food: Sank Foods, Seeds (Pulses), Coffee (granules/beans), Tea, Sugar, Grated Cheese, Bakery Products, Candies & Confectionery, Rice, Nuts & Dried Fruits, Spices, Small Pasta pieces, Pet Food (pellets) etc.
Combined with NHK 14 or 16 multihead weigher the NHK Vertical Form Fill Seal Machine is suitable for packing Non Food: Bolts, Washers, Nuts, Auto parts, Electrical parts, Plumbing Parts and furniture assembly parts etc.
Main Features:
Panasonic Servo-drive film transport system.
Panasonic Servo-drive intermittent motion end seal jaws.
Omron PLC and touch screen operation interface with choice of languages and access restriction feature.
Full synchronization for printers and feed systems.
Simple and fast bag size changeover with one-piece forming sets.
Exact alerting to prevent product to be jammed between the jaws.
Photocell for centering of printing.
Stainless steel as standard version for excellent durability and sanitation.
Optional Elements:
Gas flushing (Air or Nitrogen gas), Tear notch, Gusseted device, Air expeller, Hole punch device, Material stopper, Bag support, Polyethylene Ropex pulse sealing system with water cooling and Vacuum bag system
-
NHK-26 Twin VFFS Packaging machines
Bag style: Pillow bag, gusseted bag, etc.
Bag Width 75mm to 240mm on pillow bag
Bag length Up to 300mm
Packing speed: Max. 200 bpm
Power supply: 230VAC 3.5KW
Compressed air: 0.2Ml/min, 0.6Mpa
Wooden-case: Size: 2300x1650x1700mm
Weight: Net 1500 Kg Gross 1800 Kg
-
NHK-27 Twin VFFS Packaging machines
Bag style: Pillow bag, gusseted bag, etc.
Bag Width 75mm to 300mm on pillow bag
Bag length Up to 500mm
Packing speed: Max. 200 bpm
Power supply: 230VAC 4.5KW
Compressed air: 0.2Ml/min, 0.6Mpa
Wooden-case: Size: 2400x1750x1800mm
Weight: Net 1700 Kg Gross 2000 Kg
