2016 new design crank motor 26 inch electric moutain bicycle 36v
Detailed Specification
| Motor | 36V 200W brushless Mid Drive Linear Torque Sensor | |
| Controller | KM 350 Standard | |
| Battery | battery type | in-frame Lithium battery |
| capacity | 36V 8.8Ah | |
| recharge time | 4-5 hours | |
| discharge cycles | 600 | |
| Performance | max speed | 25-30km/h |
| input voltage | 90-240v | |
| output voltage | 36V | |
| running range | 60kms | |
| loading | 75kgs | |

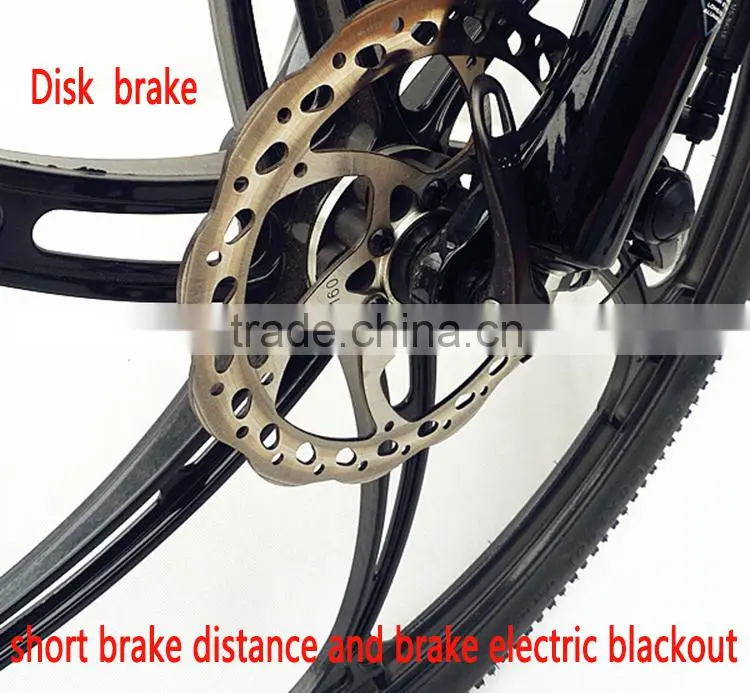

| Components | brakes system | Front/disk & Rear/shimano brake |
| speed system | Shimano 8 speed | |
| wheel/rim | 26 inch; Double wall magnesium alloy one body | |
| tires | Front & rear 26 x 1.75 inch | |
| certificate | CE | |
| Dimensions | L x W x H | 169 x 63 x 95cm |
| G.W./N.W. | 27kgs/25kgs | |
| wheelbase | 1000mm | |
| package & size | With carton; 140x 20 x 76cm | |
|
Container loading |
20’FCL | 132 pcs |
| 40’HQ | 321 pcs | |
| Features | ||
| 1.Application fields:urban casual ,daily ride instead of walk ,etc. | ||
| 2.whole frame is aluminium alloy , wheel rim is magnesium material . | ||

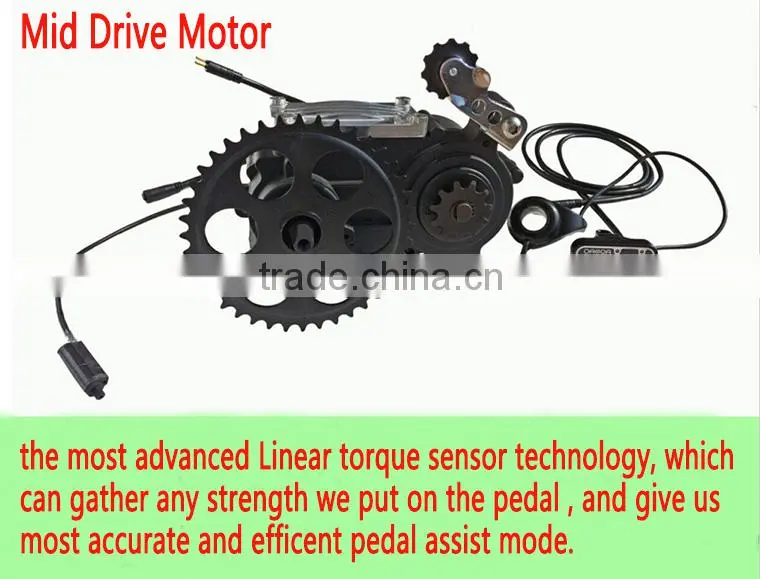

| 3. world advanced mid-drive motor with linear torque sensor system . | ||
| 4.motor type of this bicycle is high speed and energy saving . | ||
| uction gear ratio is 1:7 . | ||
| 6.motor rotate speed is 430r/min . | ||
| 7.Color for plastic outer frame is available with Black color, Shinning-silver color, Golden Color, cream-white color; Color Is Optional. | ||
| 8.Chain is KMC , very durable . | ||
| 9.there two modes to start bicycle without throttle . biycle mode with pedal , pure electric with sensor . |

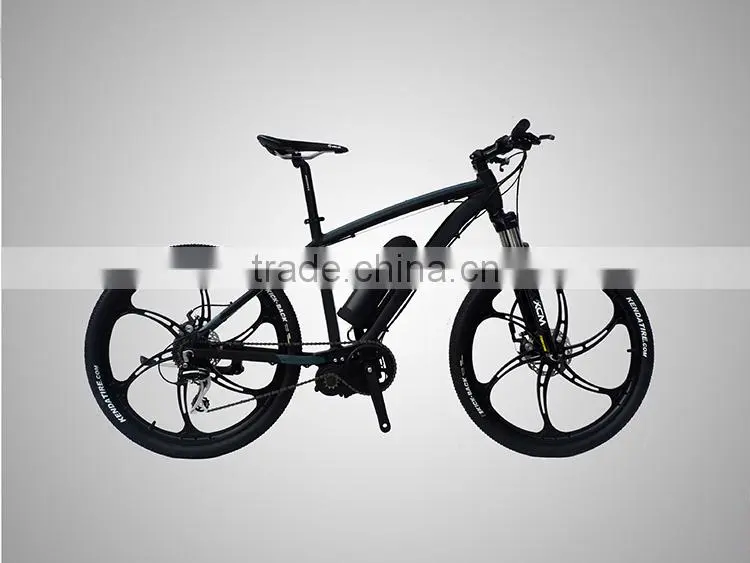

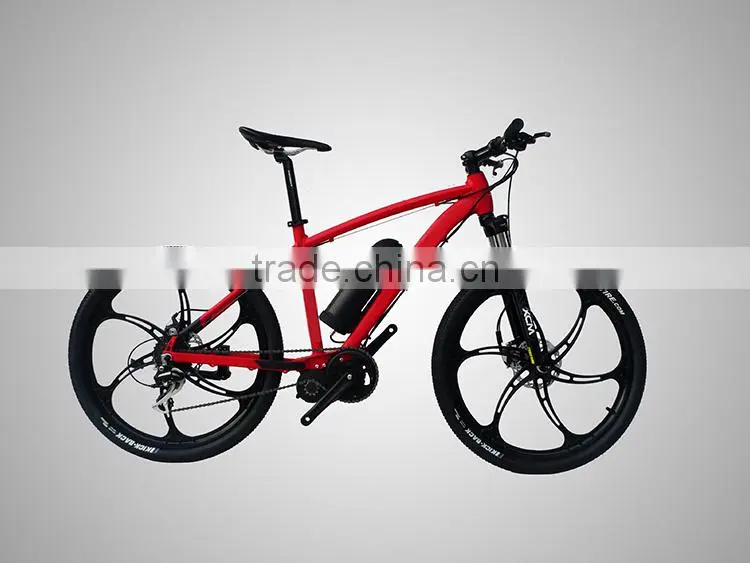

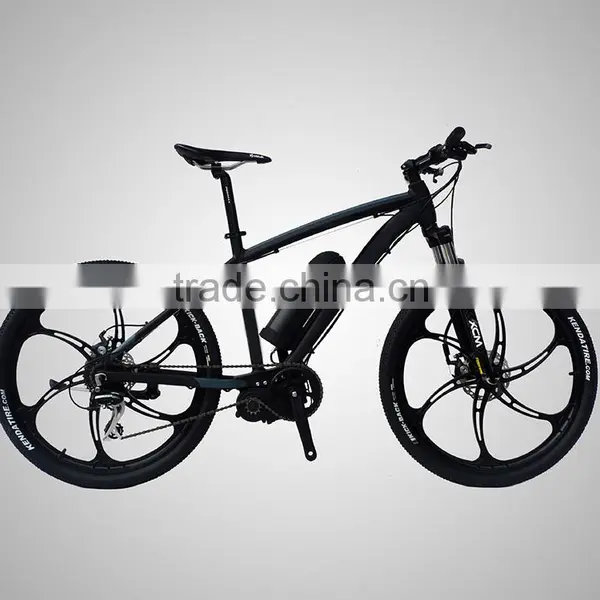

Bicycle showing
1)Loading Quantity
| LCL | 20 GP | 40 HQ | |
| Quantity | optional | 132 pcs | 321 pcs |
| Remarks | optional | take out front wheel,basket,pedal | take out front wheel,basket,pedal |
2) Packaging
LCL : wooden packaging
FCL: carton packaging
3) Packaging show
4) Loading show
1) production ability
2 production lines , 50 workers , 3000 pieces bike /month .
2) afer sales service
2016 new design crank motor 26 inch electric moutain bicycle 36v
|
whole bike spare parts after sale service |
Items | body parts | electric parts | |||||||
| parts name |
brake/ F&R hub cover |
plastic parts/rear mirror/ electroplate parts |
seat/rear carrier/ tires |
F/R shocker absorber/ crank |
frame/ rear fork/ fork/ front wheel/ handbar |
brake cable/ screws/ pedal |
fuse |
controller/ charger/ display /throttle/brake/ mainwires/ converter/ alarm/flash |
horn/ turning light/light assembly /rear light/ switch |
|
| problem | cracking | fade/cracking | fracture |
out of shape/ cracking |
cracking/ desoldering |
bad contact(can't use normally) | ||||
| wrranty time(month) | 12 | 6 | 6 | 12 | 24 | easy damaged parts ,not included | 12 | 6 | ||
|
whole bike spare parts after sale service |
Items | motor | battery |
|
||||||
| parts name | motor | hall/bearing | lead acid battery | lithium battery | ||||||
| problem |
burned/ demagne-tizm |
noisy/hall burned | no storage electric/ no recharging | |||||||
| wrranty time(month) | 24 | 6 | 12 | 24 | ||||||
& Basic information
| Products/service(we sell) | Electric bicycle/electric scooter/electric motorcycle |
| Brands | Ruiling |
| Number of employees | 50-100 peoples |
& Trade Market
| Main markets |
North Europe,South America,Mid East,Africa,South Asia West Europe,North America |
| Total Annual Sales | USD 10 Millions~ USD 30 Millions |
| Export percentage | 17-20% |
& Factory information
| Factory size | 4000-5000 square meters |
| Factory location | Floor 4-5, Building 8, Changxing Technology Park, Shayi Community, Shajing St., Bao'an District ,Shenzhen |
| Production lines | 2 |
| Number of R&D staff | 2 |
| Manufacturing type | EM Service Offered Design Service Offered Buyer Label Offered |
Factory show
Do I have to take some time to get used new bikes ?
No, you don’t . In contrast to ordinary petrol-powered scooters, you can immediately start riding the way you feel most comfortable – nice and easy or fast and furious.
How can I get best performance from the batteries?
Before you begin riding, it is best if you fully charge the batteries. It is perhaps also useful to know that your battery pack can attain the maximum capacity – and therefore the maximum range – after being fully charged and then drained five to ten times.
How often do I have to charge the batteries?
As often as you want! The batteries can be recharged even if they aren’t completely empty, so you can recharge your batteries whenever it is convenient for you.
How long does it take to fully charge the batteries?
That depends on how full they are. Completely empty batteries will take 4 to 6 hours to charge with a standard charger.
Is it true that the action radius is shorter in winter?
That depends on the type of battery you choose. An Absorbed Glass Mat battery has less capacity when the outside temperature falls below 15 degrees, and can fall by up to 25% at temperatures below freezing.
I don’t ride in winter, what should I do with the batteries?
If you prevent the batteries from remaining empty for longer periods of time, they will last much longer. So be sure to charge your batteries at least once per month.
How can I get more kilometers from my bike ?
Your bike most efficient when you ride slowly,turn off the lights, keep your tyre pressure at 2.5 bar for comfort or 3.0 bar for extra range.
Can I make my bike drive faster ?
Your bike has been design to legal norms and regulations. If you choose to tune your scooter to ride faster, then the warranty is immediately void. Plus, tuning reduces your action radius.
