GCL/GCT 0.5T-10T Capacity Manual Machinery Trolley

Specifications

Manual Trolley
1. Capacity from 0.5ton to 5T
2. Adjustable to fit most standard flange widths
3. SGS, TUV , CE, ISO

 GCL/GCT 0.5T-10T Capacity Manual Machinery Trolley

♣1. The Introduction of GCL/GCT 0.5T-10T Capacity Manual Machinery Trolley

1.Heavy duty trolleys designed for flexibility of installation.                                              2.Usable on straight or curved track.

3.Easy adjustment to the size of the steel beam using crank;

4.Simply remove end nut and adjust spacers.

5.Can be installed or removed from any point in the track.

6.Movement is achieved through pushing



♣2. The Parameters of GCL/GCT 0.5T-10T Capacity Manual Machinery Trolley



Capacity(T)	I-Beam width(MM)	Net weight(KG)	Rated load(KN)	Dimensions(MM)
				A	B	C	H
0.5T	68-126	7.8	6.25	283	213	200	150
1T	80-146	11.2	12.5	317	260	253	170
2T	80-168	13	25	360	300	310	180
3T	88-168	27	37.5	380	345	357	190
5T	100-180	39	62.5	400	395	400	210

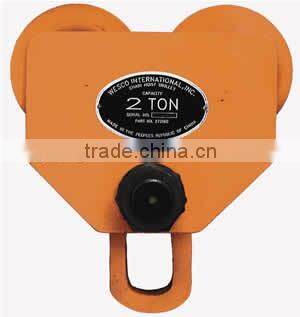

 ♣3.The picture show









  We are professional hoist manufacturer with more than 20 years experience since 1992. If you have any interest about our product , please contact us at any time!
