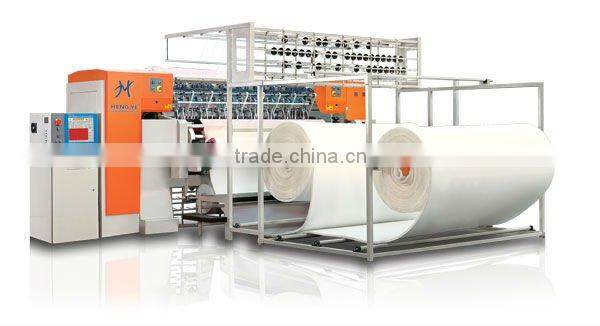

Help CenterHigh Speed Computerized Single Needle Quilting Machine
Related Products
-
Computerized Lock Stitch Multi-needle Quilting Machine (multi-span)NegotiableMOQ: 1 Set -
Computerized Panel Cutter MachineUS$ 15,000 - 16,000MOQ: 1 Set
-
Computerized Panel Cutter MachineUS$ 24,000 - 25,000MOQ: 1 Set
-
High Speed Bobbin Winder MachineNegotiableMOQ: 1 Set
-
Computerized Chain Stitch Multi-functional Quilting MachineNegotiableMOQ: 1 Set
Specifications

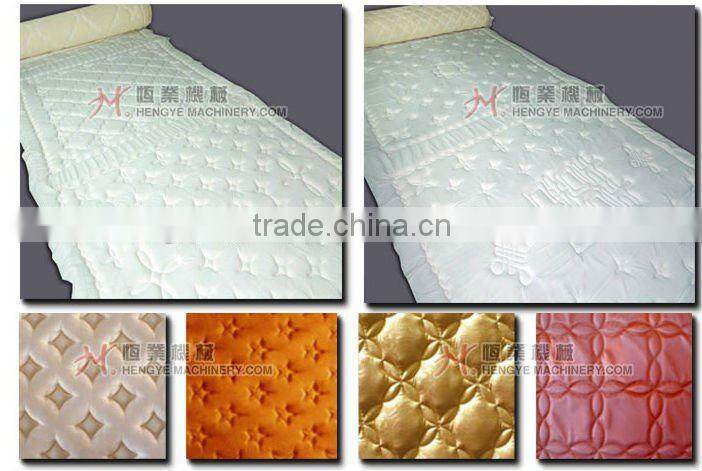

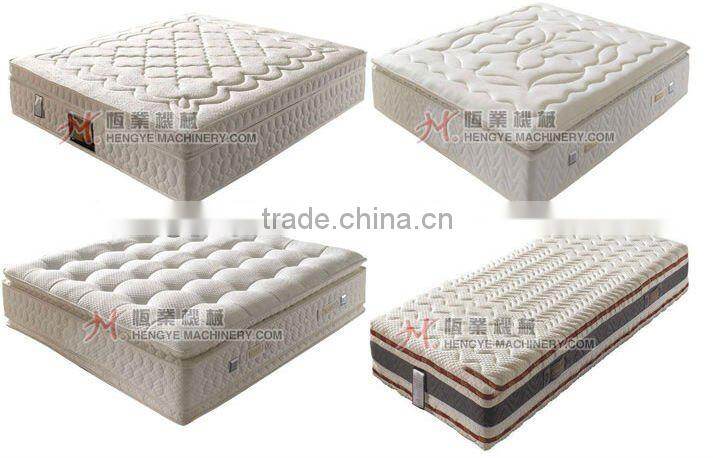

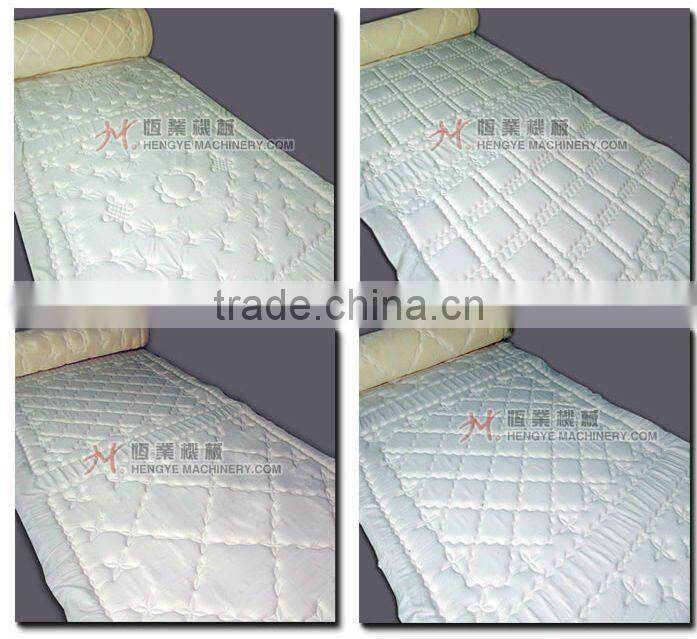

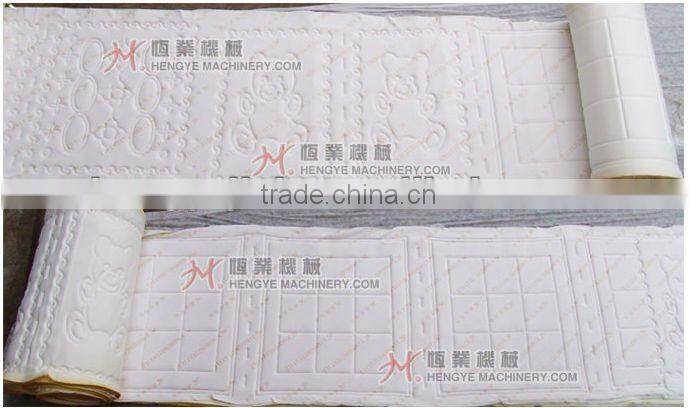

Applications:Mattress panel, mattress pads, bedspreads, comforters, bedding, upholstery, and more.
Detail information:
l • Based on the Multi-needle Quilting Machines and with all the functions of Multi-needle Quilting Machine, at the same time also with the functions of single needle quilting .
•With much more output comparing with Single Needle Quilting Machines and with more patterns comparing with Multi-needle Quilting Machines.
•Adopting Chain stitch quilting mechanism, avoiding frequently replacing bottom thread, and making the quilting stitches much firmer.
• Needle bar and press plate are controlled by a double- swinging device without cam avoiding lubrication and dirtying of material
• Automatic stop motion control in case the top thread or the bottom thread breaks,automatic needle-lifting and CNC speed adjustment
• CE Certificate
•CNC precision control system, no need to adjust the press plate’s position when the thickness of quilting material varies
• Strong functions of pattern-combining and Tack & Jump quilting to enable you to quilt different patterns in same row of the mattresses
• Fault detection function for ease of determining the running state of the machine at any given tim

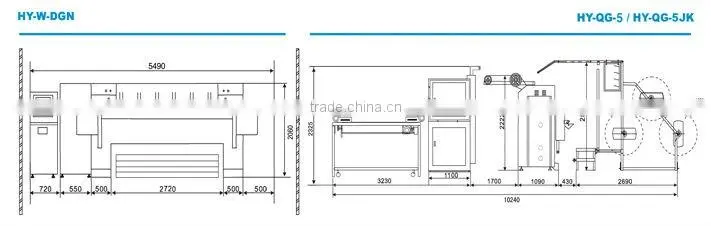

Parameter Unit ( mm )
Dimension(L×W×H) 4820×1650×2060
Quilting width 2450
Space between needle rows 76.2,76.2,152.4(6”)
Space between needles 25.4
X-axis movement displacement 535
Thickness of quilting ≤60(for all patterns)
Stitch length 3~8
Speed of operation 60~230(m/hour)
Model of needle 24/180 23/160 22/140 21/130
Quilting speed 200~980(RPM)
Total power required 7KW
Voltage 380V/50HZ 220V/60HZ
Gross weight 5000kg
