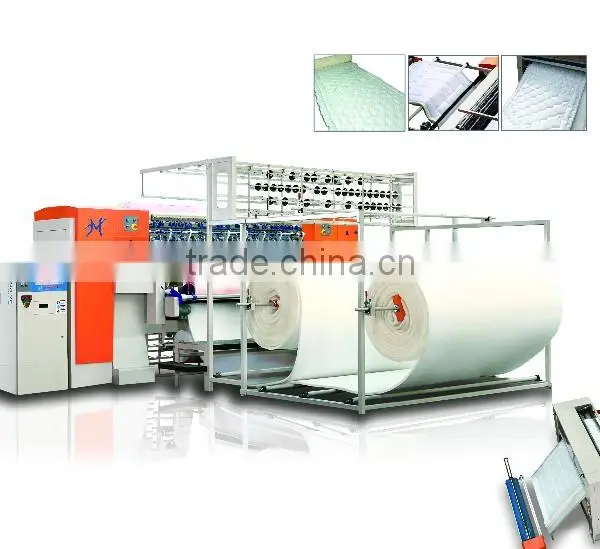

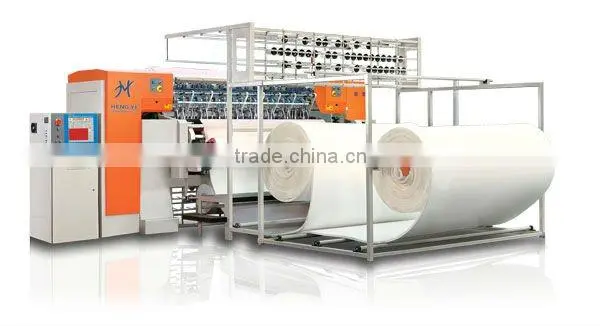

Help CenterComputerized Chain Stitch Multi-Needle Quilting Machine HY-W-DGN
Related Products
-
New Fast Speed Computerized Chain Multi-needle Quilting Machine HY-W-SJNegotiableMOQ: 1 Unit -
Computerized Panel Cutter Machine HY-QG-6,HY-QG-6LNegotiableMOQ: 1 Unit
-
Computerized Lock Stitch Multi-Needle Quilting Machine HY-94-3ANegotiableMOQ: 1 Unit
-
Computerized Lock Stitch Multi-Needle Quilting Machine HY-128-3ANegotiableMOQ: 1 Unit
-
Computerized Chain Stitch Multi-Needle Quilting Machine HY-W-DGNNegotiableMOQ: 1 Unit
Purpose:It is widely used for quilting high-quality mattresses, quilt covers, and household ornaments. Different patterns are available.
Parameter(Unit mm):

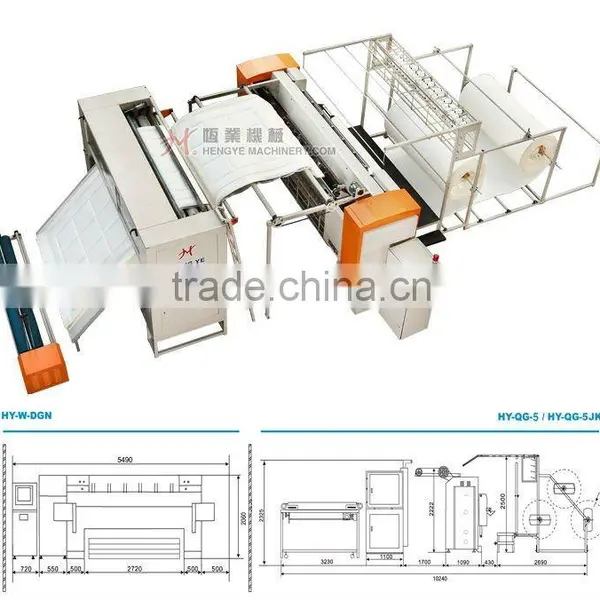

Dimension(L×W×H) :4820×1650×2060
Quilting width:2450
Space between needle rows: 76.2,76.2,152.4(6”)
Space between needles:25.4
X-axis movement displacement:535
Thickness of quilting≤60(for all patterns)
Stitch length:3-8
Speed of operation:60~230(m/hour)
Model of needle:24/180 23/160 22/140 21/130
Quilting speed:200~980(RPM)
Total power required:7KW
Voltage :380V/50HZ 220V/60HZ
Gross weight:5500kg
Detail Information:
• Based on the Multi-needle Quilting Machines and with all the functions of Multi-needle Quilting Machine, at the same time also with the functions of single needle
quilting .
• With much more output comparing with Single Needle Quilting Machines and with more patterns comparing with Multi-needle Quilting Machines.
• Adopting Chain stitch quilting mechanism, avoiding frequently replacing bottom thread, and making the quilting stitches much firmer.
• Needle bar and press plate are controlled by a double- swinging device without cam avoiding lubrication and dirtying of material
• Automatic stop motion control in case the top thread or the bottom thread breaks,automatic needle-lifting and CNC speed adjustment
• CE Certificate
• CNC precision control system, no need to adjust the press plate’s position when the thickness of quilting material varies
• Strong functions of pattern-combining and Tack & Jump quilting to enable you to quilt different patterns in same row of the mattresses
• Fault detection function for ease of determining the running state of the machine at any given time.
