termin Block 3.50mm PCB Screwless Terminal Block With Plug Double Levels 300V 8A

Product Description

Detailed Product Description

Type:	Screwless Terminal Block,Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connecto	Pitch:	5.08
Number Of Contacts:	2P-22P	Wire Range:	12-30
Rated Voltage:	300V	Rated Current:	18A
Color:	Green	Applications:	PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control





Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..


Plug, Female, Pitch: 5.08mm, 300V 18A, 2P-22P, Pluggable Terminal Blocks, Plug-in Terminal Blocks

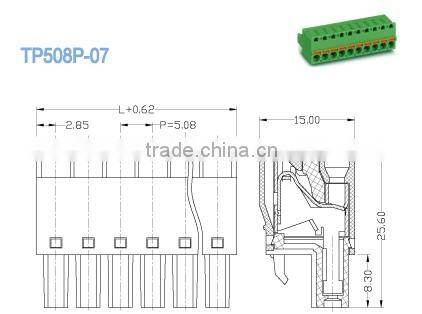

Parameter and Drawing Specifications:


UL Technical Data	B	C	D
Rated Voltage / Current              V/A	300 / 18
Wire Range                       AWG	12-30
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current              V/A	250 / 18	320 / 18	630 / 18
Rated Surge Voltage                 KV	4	4	4
Rated Connecting Capacity           mm2	2.5
Material
Insulation Material / Inflammability Class	PA66 / UL94, V-0
Spring Clamp	Stainless Steel
Terminal / Plating	Phosphor Bronze / Tin Plated
Other Data
Stripping Length                    mm	10















Certification

Pitch  14.50mm  600V  40A 4-14P Barrier Terminal block

Automatic Production:

Application:

1. 1.    Trade term: FOB, EXW;
2. 2.    Lead time: 3-10 days for sample order, 7-25 days for mass production order
3. 3.    Port: Hong Kong, Shenzhen, Shekou, etc.
4. 4.    Shipment: By air, by sea or by express
5. 5.    Payment condition: T/T, Paypal, or others.

Professional in designing, manufacturing and marketing all sorts of terminal blocks,

Headquarter located in Shenzhen, founded in 2003,

Set up the sub-branch in Suzhou City in 2014,

Total more than 800 workers,

 Have gained UL, cUL, CQC, CE, VDE, TUV , ISO9001, ISO14001, etc.

All products comply with ROHS, REACH standards

Key customers: EMERSON, BOSCH, ABB, PHILIPS, HUAWEI, ZTE, OMRON, SANTAK, SANKENLD, INOVANCE and INVT, etc.

All your inquiries and orders will be taken care by us, we looking forward to your good advice and trade cooperation chances.

1. Your inquiry will be replied within 8 hours;

2. Excellent design team with designers of more than 10 years experiences, can offer professional advice for practical application;

3. Good OEM & ODM business ability, 31 production lines meet your shipping requirement;

4. 800 workers, more than 10KK poles mounthly production capacity, the products export to North America, Europe, South America, Asia, etc;

5. Good OEM & ODM business ability, 31 production lines meet your shipping requirement;

6. Location in Shenzhen city and transportation is very convenience, 1-2 hours to Hong Kong or Guangzhou;

7. Discount offered is based on qty;

8. High quality component and material, various of choices depend on your needs;

9.Your order will be dealt with promptly by a friendly and conscientious team, committed to providing a  high level of service.

Dear, thanks for your visiting, here SCED is on your service. Will you send me an enquiry for more details?

1. Are you a manufacturer or a trader?

We are a terminal block factory.

2. What kind of certificates do you have?

UL, CUL, VDE, CE, CQC

3. What kind of terminal blocks are offered?

They are 10 main series: Euro, Spring, Barrier, Pluggable, High Current Barrier, Through Panel, Feed Through, Perforation, Din Rail, Accessories.

4. What’s the payment?

We accept bank transfer, TT, Paypal & L/C, or others method.

5. What is lead time?

5-25 working days after receipt of deposit.

6. Is small order available?

Yes, we do not only supply MOQ order, but also small order for trial test or small projects.

7. If we can put my company logo on products?

We supply OEM service, it's fine to send goods with your company logo, but need to tool up the new inserts and apply the Multiple-Listing for the certificates.

8. Is all your products comply with RoHS?

 Yes.

9. Do you have your own lab?

 Yes, we have professional laboratory meets UL, VDE standards.
