Electrical Feedthroughs Terminal Block Connector With Pitch 8.10mm

Name: Electrical Feedthroughs Terminal Block Connector With Pitch 8.10mm
Brand: SCED
SKU: 100652995
Availability: InStock

Electrical Feedthroughs Terminal Block Connector With Pitch 8.10mm thumbnail-1

Electrical Feedthroughs Terminal Block Connector With Pitch 8.10mm thumbnail-2

Electrical Feedthroughs Terminal Block Connector With Pitch 8.10mm photo-1

Electrical Feedthroughs Terminal Block Connector With Pitch 8.10mm photo-2

Negotiable MOQ: 500 Poles (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

SCED

Model Number:

TR-4N-05

Contact Supplier Request Quote Chat Now

Shenzhen Sced Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name SCED

Model Number TR-4N-05

Type Other, Feed Through Terminal Block

Through Panel PCB Terminal Block Connector For Industry Control TR-4N-05

Product Description

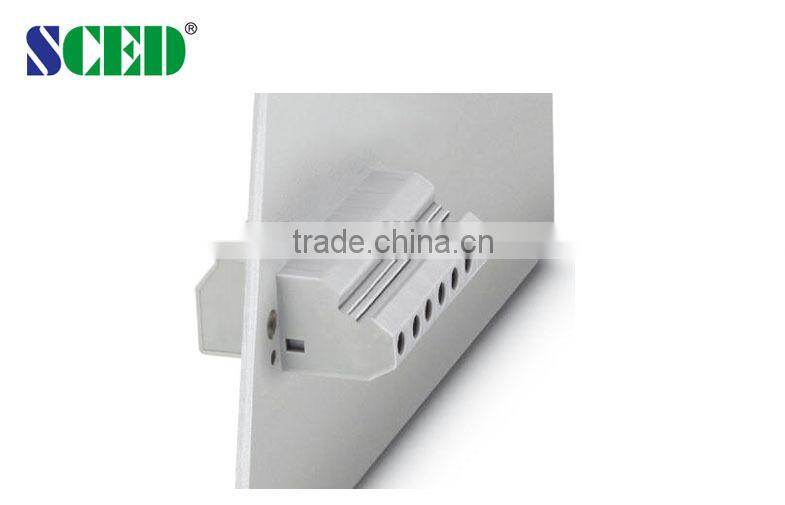

Product Photo

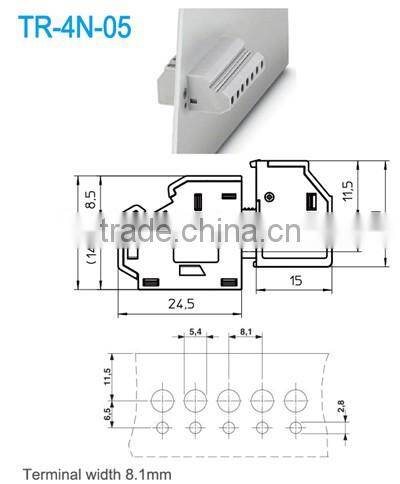

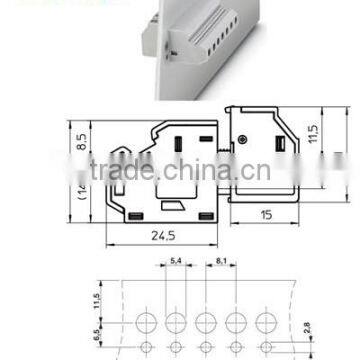

Drawing Descripition:

Parameters:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	300 / 30		300 / 10
Wire Range AWG	10-30		10-30
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	400 / 32	630 / 32	800 / 32
Rated Surge Voltage KV	6	6	6
Rated Connecting Capacity mm²	4
Material
Insulation Material / Inflammability Class	PA66 / UL94, V-0
Clamp Cage / Plating	Brass / Nickel Plated
Conduction Board / Plating	Brass / Nickel Plated
Screw / Plating	Steel / Zinc Plated
Other Data
Stripping Length mm	9
Screw / Torque / lbf.in	M3 / 5.3-7

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,
Military, Elevator, etc

Packaging & Shipping

1. Trade term: FOB, EXW;

2. Lead time: 3-10 days for sample order, 7-25 days for mass production order

3. Port: Hong Kong, Shenzhen, etc.

4. Shipment: By air, by sea or by express

5. Payment condition: T/T, Paypal , or others.

Our Services

1.Good OEM & ODM business ability, 31 production lines meet your shipping requirement;

2. Your order will be dealt with promptly by a friendly and conscientious team, committed to providing a high level of service;

3. Discount offered is based on qty.

Company Information

1.Professional in designing, manufacturing and marketing all sorts of terminal blocks,

2.Headquarter located in Shenzhen, founded in 2003,

3.Set up the sub-branch in Suzhou City in 2014,

4.Total more than 800 workers,

5.Have gained UL, cUL, CQC, CE, VDE, TUV , ISO9001, ISO14001, etc. All products comply with ROHS, REACH standards

6.Key customers: EMERSON, BOSCH, ABB, PHILIPS, HUAWEI, ZTE, OMRON, SANTAK, SANKENLD, INOVANCE and INVT, etc.

FAQ

1. Are you a manufacturer or a trader?

We are a terminal block factory.

2. What kind of certificates do you have?

UL, CUL, VDE, CE, CQC

3. What kind of terminal blocks are offered?

There are 10 main series: Euro, Spring, Barrier, Pluggable, High Current Barrier, Through Panel, Feed Through, Perforation, Din Rail, Accessories.

4. What’s the payment?

We accept bank transfer, TT, Paypal & L/C, or others method.

5. What is lead time?

5-25 working days after receipt of deposit.

6. Is small order available?

Yes, we do not only supply MOQ order, but also small order for trial test or small projects.

7. If we can put my company logo on products?

We supply OEM service, it's fine to send goods with your company logo, but need to tool up the new inserts and apply the Multiple-Listing for the certificates.

8. Is all your products comply with RoHS?

Yes.

9. Do you have your own lab?

Yes, we have professional laboratory meets UL, VDE standards.
