Pitch 15.10mm 600V 115A High Current Through Panel Terminal Block

Pitch 15.10mm 600V 115A High Current Through Panel Terminal Block thumbnail-1
Pitch 15.10mm 600V 115A High Current Through Panel Terminal Block photo-1
US$ 1.99 - 4.68 MOQ: 200 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SCED
Model Number:
TR-35N-04
Contact Supplier Request Quote Chat Now
Shenzhen Sced Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name SCED
Model Number TR-35N-04

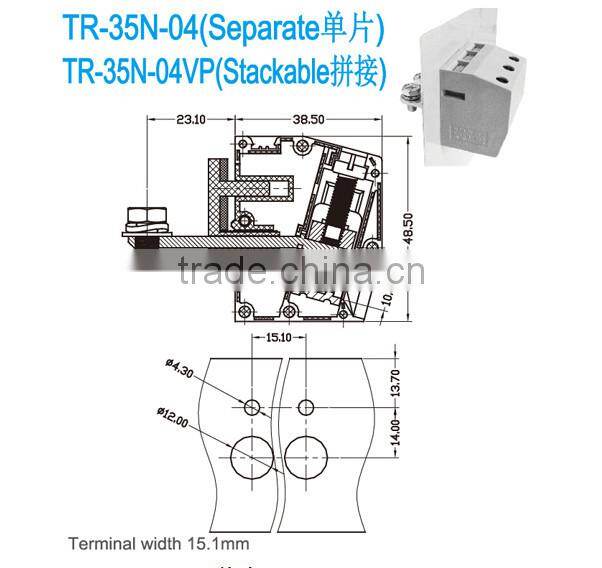

Drawing and spec.:







   Pitch 15.10mm 600V 115A High Current Through Panel Terminal Block








UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 115



600 / 5

Wire Range                       AWG

2-8



2-8

IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

630 / 125

800 / 125

1000 / 125

Rated Surge Voltage                 KV

6

6

6

Rated Connecting Capacity           mm2

25

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Steel / Nickel Plated

Conduction Board / Plating

Copper / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

19

Screw / Torque                    / lbf.in

M5 / 22-25








Certification

 Pitch 15.10mm 600V 115A High Current Through Panel Terminal Block





Automatic Production:



 Pitch 15.10mm 600V 115A High Current Through Panel Terminal Block

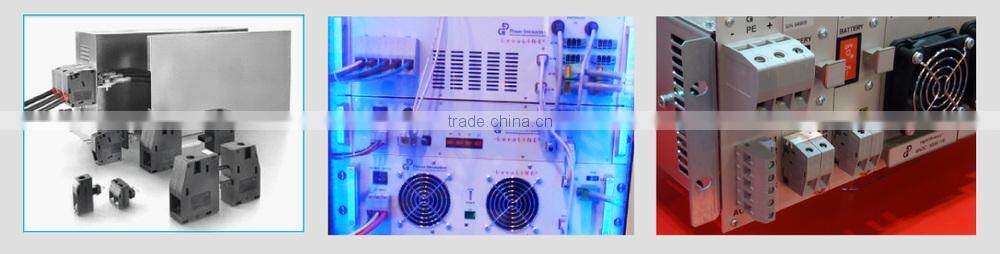

Application:



 Pitch 15.10mm 600V 115A High Current Through Panel Terminal Block





Packaging & Shipping

  1. 1.    Trade term: FOB, EXW;
  2. 2.    Lead time: 3-10 days for sample order, 7-25 days for mass production order
  3. 3.    Port: Hong Kong, Shenzhen, Shekou, etc.
  4. 4.    Shipment: By air, by sea or by express
  5. 5.    Payment condition: T/T, Paypal, or others.





Company information

Professional in designing, manufacturing and marketing all sorts of terminal blocks,

Headquarter located in Shenzhen, founded in 2003,

Set up the sub-branch in Suzhou City in 2014,

Total more than 800 workers,

 Have gained UL, cUL, CQC, CE, VDE, TUV , ISO9001, ISO14001, etc.

All products comply with ROHS, REACH standards

Key customers: EMERSON, BOSCH, ABB, PHILIPS, HUAWEI, ZTE, OMRON, SANTAK, SANKENLD, INOVANCE and INVT, etc.



All your inquiries and orders will be taken care by us, we looking forward to your good advice and trade cooperation chances.

 Pitch 15.10mm 600V 115A High Current Through Panel Terminal Block





Our Services

1. Your inquiry will be replied within 8 hours;

2. Excellent design team with designers of more than 10 years experiences, can offer professional advice for practical application;

3. Good OEM & ODM business ability, 31 production lines meet your shipping requirement;

4. 800 workers, more than 10KK poles mounthly production capacity, the products export to North America, Europe, South America, Asia, etc;

5. Good OEM & ODM business ability, 31 production lines meet your shipping requirement;

6. Location in Shenzhen city and transportation is very convenience, 1-2 hours to Hong Kong or Guangzhou;

7. Discount offered is based on qty;

8. High quality component and material, various of choices depend on your needs;

9.Your order will be dealt with promptly by a friendly and conscientious team, committed to providing a  high level of service.

Dear, thanks for your visiting, here SCED is on your service. Will you send me an enquiry for more details?





FAQ

1. Are you a manufacturer or a trader?

We are a terminal block factory.

2. What kind of certificates do you have?

UL, CUL, VDE, CE, CQC

3. What kind of terminal blocks are offered?

They are 10 main series: Euro, Spring, Barrier, Pluggable, High Current Barrier, Through Panel, Feed Through, Perforation, Din Rail, Accessories.

4. What’s the payment?

We accept bank transfer, TT, Paypal & L/C, or others method.

5. What is lead time?

5-25 working days after receipt of deposit.

6. Is small order available?

Yes, we do not only supply MOQ order, but also small order for trial test or small projects.

7. If we can put my company logo on products?

We supply OEM service, it's fine to send goods with your company logo, but need to tool up the new inserts and apply the Multiple-Listing for the certificates.

8. Is all your products comply with RoHS?

 Yes.

9. Do you have your own lab?

 Yes, we have professional laboratory meets UL, VDE standards.
