Panel Mount Terminal Connector 21mm Different Types Wire Connector

Panel Mount Terminal Connector 21mm Different Types Wire Connector thumbnail-1
Panel Mount Terminal Connector 21mm Different Types Wire Connector thumbnail-2
Panel Mount Terminal Connector 21mm Different Types Wire Connector thumbnail-3
Panel Mount Terminal Connector 21mm Different Types Wire Connector thumbnail-4
Panel Mount Terminal Connector 21mm Different Types Wire Connector thumbnail-5
Panel Mount Terminal Connector 21mm Different Types Wire Connector thumbnail-6
Panel Mount Terminal Connector 21mm Different Types Wire Connector photo-1
Panel Mount Terminal Connector 21mm Different Types Wire Connector photo-2
Panel Mount Terminal Connector 21mm Different Types Wire Connector photo-3
Panel Mount Terminal Connector 21mm Different Types Wire Connector photo-4
Panel Mount Terminal Connector 21mm Different Types Wire Connector photo-5
Panel Mount Terminal Connector 21mm Different Types Wire Connector photo-6
Negotiable MOQ: 200 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SCED
Model Number:
TD180-01-C
Contact Supplier Request Quote Chat Now
Shenzhen Sced Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name SCED
Model Number TD180-01-C
Type Screw Terminal

Panel mount terminal connector 21mm Different types wire connector         TD180-01-C



Product Description

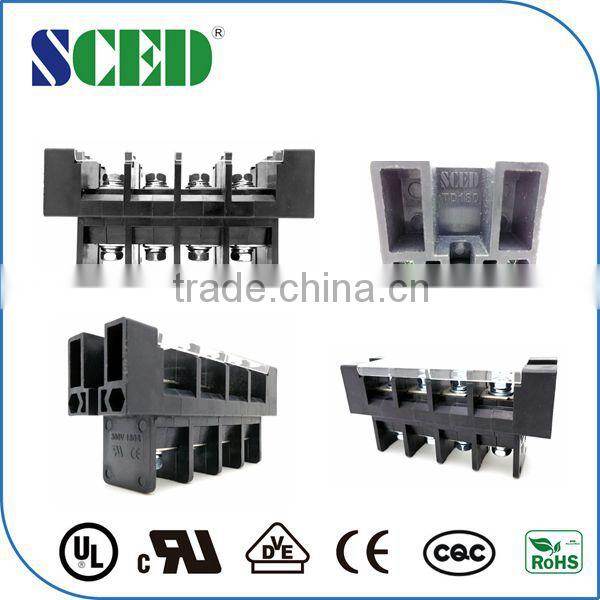

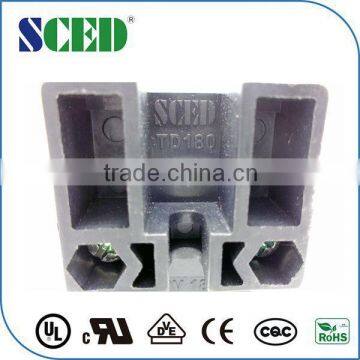

Product Photo



Panel mount terminal connector 21mm Different types wire connector

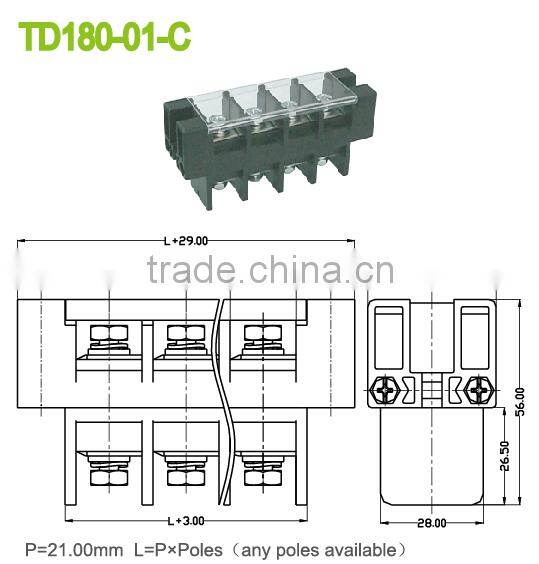

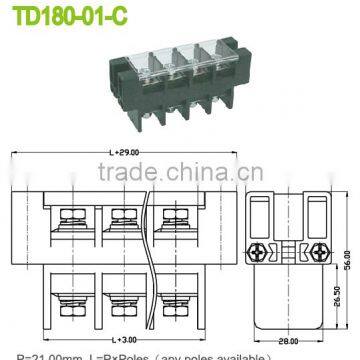

Drawing Descripition:



 Panel mount terminal connector 21mm Different types wire connector

Parameters:





UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 180

300 / 180

300 / 10

Wire Range                       AWG

20-1/0

20-1/0

4-20

IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

630 / 180

800 / 180

1000 / 180

Rated Surge Voltage                 KV

6

6

6

Rated Connecting Capacity           mm2

8

Material



Insulation Material / Inflammability Class

PBT / UL94, V-0

Conduction Board / Plating

Copper / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

14-18

Screw / Torque                    / lbf.in

M6 / 20-22





Applications:





PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,
Military, Elevator, etc




Packaging & Shipping



1. Trade term: FOB, EXW;

2. Lead time: 3-10 days for sample order, 7-25 days for mass production order

3. Port: Hong Kong, Shenzhen, etc.

4. Shipment: By air, by sea or by express

5. Payment condition: T/T, Paypal , or others.



Our Services



1.Good OEM & ODM business ability, 31 production lines meet your shipping requirement;

2. Your order will be dealt with promptly by a friendly and conscientious team, committed to providing a  high level of service;

3. Discount offered is based on qty.



Company Information



1.Professional in designing, manufacturing and marketing all sorts of terminal blocks,

2.Headquarter located in Shenzhen, founded in 2003,

3.Set up the sub-branch in Suzhou City in 2014,

4.Total more than 800 workers,

5.Have gained UL, cUL, CQC, CE, VDE, TUV , ISO9001, ISO14001, etc. All products comply with ROHS, REACH standards

6.Key customers: EMERSON, BOSCH, ABB, PHILIPS, HUAWEI, ZTE, OMRON, SANTAK, SANKENLD, INOVANCE and INVT, etc.

Panel mount terminal connector 21mm Different types wire connector



Panel mount terminal connector 21mm Different types wire connector





FAQ

1. Are you a manufacturer or a trader?

We are a terminal block factory.

2. What kind of certificates do you have?

UL, CUL, VDE, CE, CQC

3. What kind of terminal blocks are offered?

There are 10 main series: Euro, Spring, Barrier, Pluggable, High Current Barrier, Through Panel, Feed Through, Perforation, Din Rail, Accessories.

4. What’s the payment?

We accept bank transfer, TT, Paypal & L/C, or others method.

5. What is lead time?

5-25 working days after receipt of deposit.

6. Is small order available?

Yes, we do not only supply MOQ order, but also small order for trial test or small projects.

7. If we can put my company logo on products?

We supply OEM service, it's fine to send goods with your company logo, but need to tool up the new inserts and apply the Multiple-Listing for the certificates.

8. Is all your products comply with RoHS?

 Yes.

9. Do you have your own lab?

 Yes, we have professional laboratory meets UL, VDE standards.
