16.00mm Pitch Panel Mount Terminal Block 4 Pin Connectors

16.00mm Pitch Panel Mount Terminal Block 4 Pin Connectors thumbnail-1
16.00mm Pitch Panel Mount Terminal Block 4 Pin Connectors thumbnail-2
16.00mm Pitch Panel Mount Terminal Block 4 Pin Connectors thumbnail-3
16.00mm Pitch Panel Mount Terminal Block 4 Pin Connectors thumbnail-4
16.00mm Pitch Panel Mount Terminal Block 4 Pin Connectors thumbnail-5
16.00mm Pitch Panel Mount Terminal Block 4 Pin Connectors photo-1
16.00mm Pitch Panel Mount Terminal Block 4 Pin Connectors photo-2

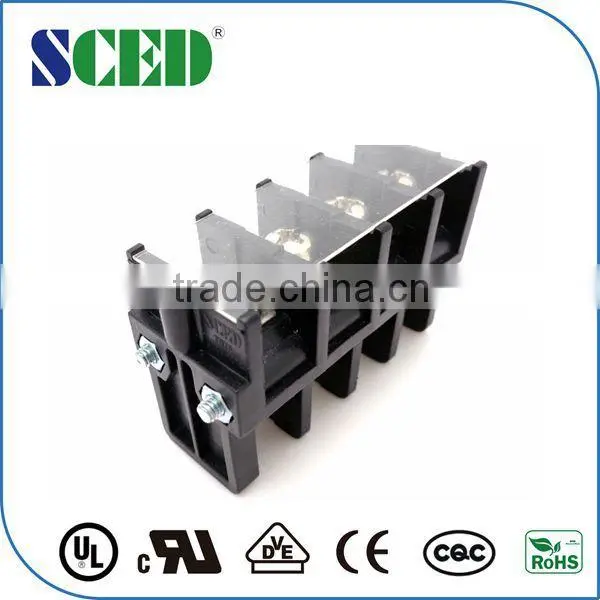

16.00mm Pitch Panel Mount Terminal Block 4 Pin Connectors photo-3
16.00mm Pitch Panel Mount Terminal Block 4 Pin Connectors photo-4
16.00mm Pitch Panel Mount Terminal Block 4 Pin Connectors photo-5
Negotiable MOQ: 200 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SCED
Model Number:
TD75-02-C
Contact Supplier Request Quote Chat Now
Shenzhen Sced Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name SCED
Model Number TD75-02-C
Number of Contacts 11 - 20
Conductor Size 11 - 20 AWG
Type Power Distribution

16.00mm Pitch Panel mount terminal block 4 pin connectors TD75-02-C



Product Description

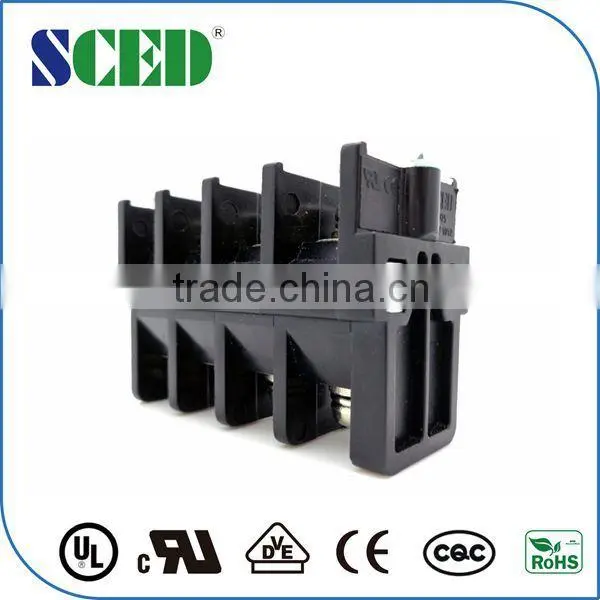

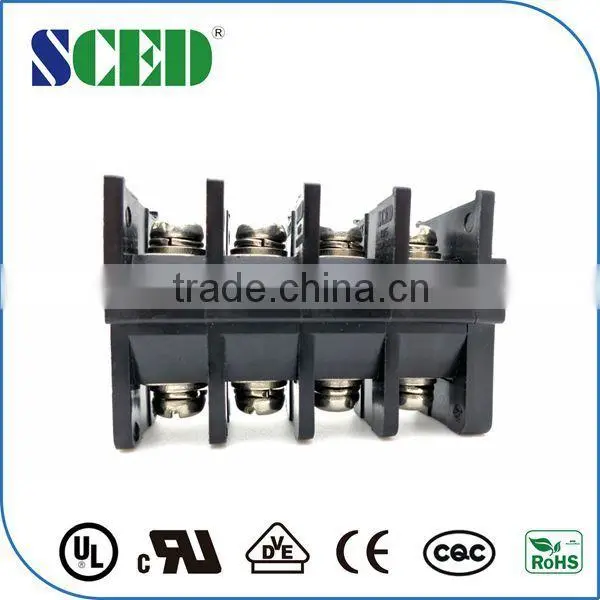

Product Photo

16.00mm Pitch Panel mount terminal block 4 pin connectors

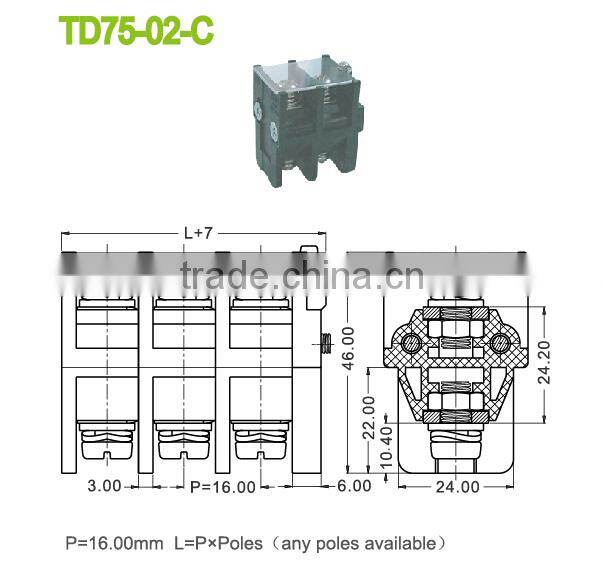

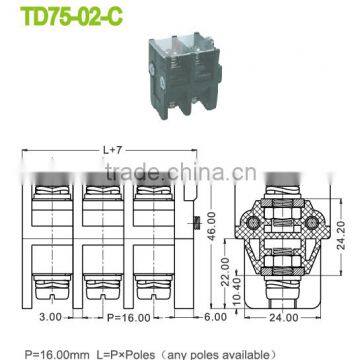

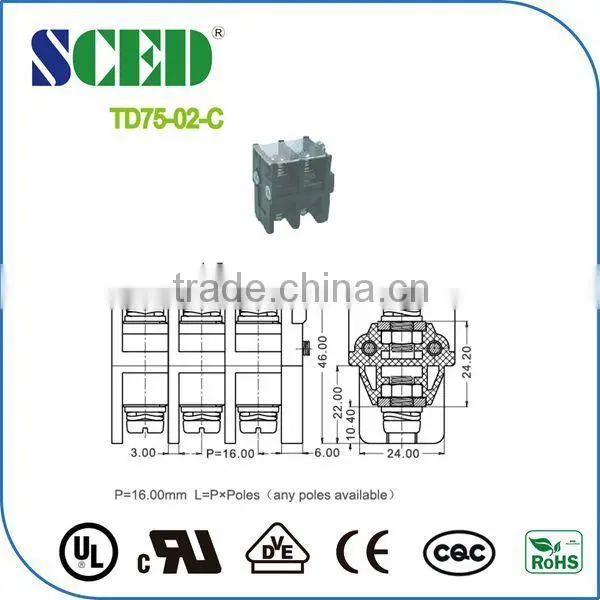

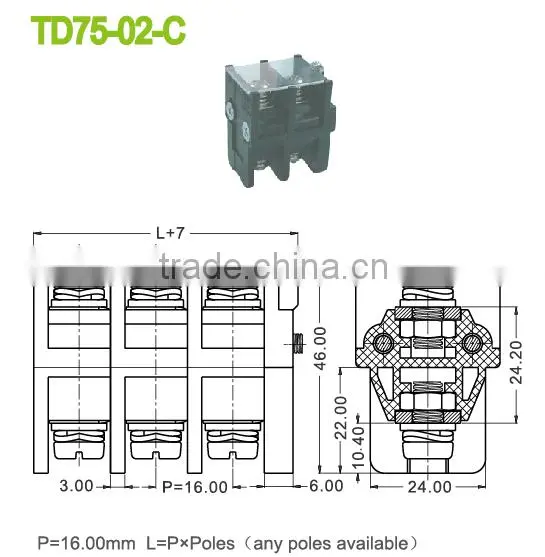

Drawing Descripition:



 16.00mm Pitch Panel mount terminal block 4 pin connectors

Parameters:





UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300/101



300/10

Wire Range                       AWG

2-10



2-10

IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

320/101

400/101

630/101

Rated Surge Voltage                 KV

4

4

4

Rated Connecting Capacity           mm2

22

Material



Insulation Material / Inflammability Class

PBT / UL94, V-0

Terminal / Plating

Brass /Tin Plated

Screw / Plating

Steel / Nickel Plated

Other Data





Stripping Length                    mm

12-13

Screw / Torque                    / lbf.in

M6 / 20-22





Applications:





PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,
Military, Elevator, etc




Packaging & Shipping



1. Trade term: FOB, EXW;

2. Lead time: 3-10 days for sample order, 7-25 days for mass production order

3. Port: Hong Kong, Shenzhen, etc.

4. Shipment: By air, by sea or by express

5. Payment condition: T/T, Paypal , or others.



Our Services



1.Good OEM & ODM business ability, 31 production lines meet your shipping requirement;

2. Your order will be dealt with promptly by a friendly and conscientious team, committed to providing a  high level of service;

3. Discount offered is based on qty.

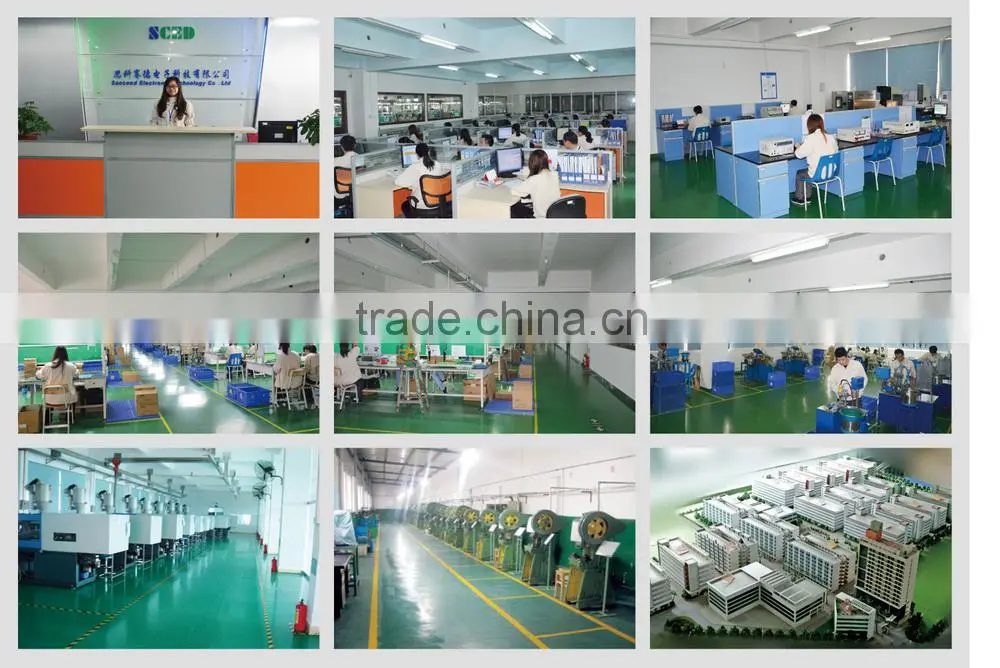

Company Information



1.Professional in designing, manufacturing and marketing all sorts of terminal blocks,

2.Headquarter located in Shenzhen, founded in 2003,

3.Set up the sub-branch in Suzhou City in 2014,

4.Total more than 800 workers,

5.Have gained UL, cUL, CQC, CE, VDE, TUV , ISO9001, ISO14001, etc. All products comply with ROHS, REACH standards

6.Key customers: EMERSON, BOSCH, ABB, PHILIPS, HUAWEI, ZTE, OMRON, SANTAK, SANKENLD, INOVANCE and INVT, etc.

16.00mm Pitch Panel mount terminal block 4 pin connectors



16.00mm Pitch Panel mount terminal block 4 pin connectors





FAQ

1. Are you a manufacturer or a trader?

We are a terminal block factory.

2. What kind of certificates do you have?

UL, CUL, VDE, CE, CQC

3. What kind of terminal blocks are offered?

There are 10 main series: Euro, Spring, Barrier, Pluggable, High Current Barrier, Through Panel, Feed Through, Perforation, Din Rail, Accessories.

4. What’s the payment?

We accept bank transfer, TT, Paypal & L/C, or others method.

5. What is lead time?

5-25 working days after receipt of deposit.

6. Is small order available?

Yes, we do not only supply MOQ order, but also small order for trial test or small projects.

7. If we can put my company logo on products?

We supply OEM service, it's fine to send goods with your company logo, but need to tool up the new inserts and apply the Multiple-Listing for the certificates.

8. Is all your products comply with RoHS?

 Yes.

9. Do you have your own lab?

 Yes, we have professional laboratory meets UL, VDE standards.
