Home > Electrical & Electronics > Connector & Terminals > Terminals > Special Through Panel Terminal Block With 12.7mm Pitch 600V 60A

Special Through Panel Terminal Block With 12.7mm Pitch 600V 60A

Name: Special Through Panel Terminal Block With 12.7mm Pitch 600V 60A
Brand: SCED
SKU: 100649737
Availability: InStock

Special Through Panel Terminal Block With 12.7mm Pitch 600V 60A thumbnail-1

Special Through Panel Terminal Block With 12.7mm Pitch 600V 60A thumbnail-2

Special Through Panel Terminal Block With 12.7mm Pitch 600V 60A photo-1

Special Through Panel Terminal Block With 12.7mm Pitch 600V 60A photo-2

Negotiable MOQ: 200 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

SCED

Model Number:

TD60-00

Contact Supplier Request Quote Chat Now

Shenzhen Sced Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name SCED

Model Number TD60-00

Type Crimp Terminal

Special Through Panel Terminal block with 12.7mm pitch 600V 60A TD60-00

Product Description

1. Perforation terminal block is widely used in Industrial Control, Power Supply, Energy Saving, etc.
2. It can be stackable to be different poles, easy to be mounted on PCB or control board,
3. It has very good mechanical properties and electrical properties,
4. It can realize a variety of ways to entered more into the line of, such as into line, up and down into
the line before and after, a into a,
5. You can configure the article identifies the short, protective cover plate, sheet in the attachment.

6. Current: 60A Pitch: 12.7mm

Product Photo

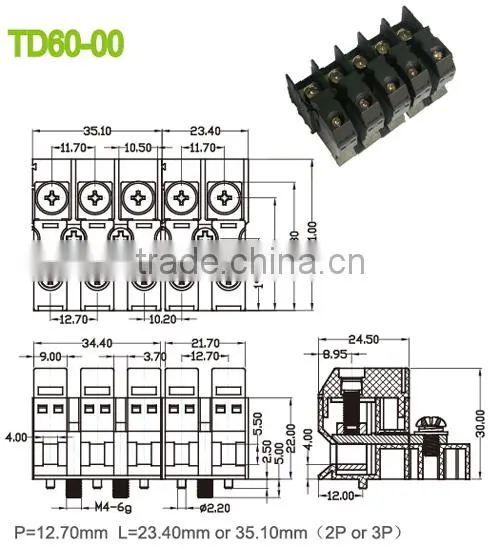

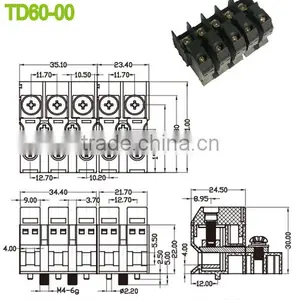

Drawing Descripition:

Parameters:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	600/40	600/40	600/5
Wire Range AWG	8-22	8-22	8-22
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	800/40	1000/40	1000/40
Rated Surge Voltage KV	8	8	8
Rated Connecting Capacity mm2	8
Material
Insulation Material / Inflammability Class	PBT/ UL94, V-0
Conduction Board/ Plating	Brass / Nickel Plated
Screw / Plating	Steel / Nickel Plated
Other Data
Stripping Length mm	9-10
Screw / Torque /lbf.in	M4/ 10.6-13

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,
Military, Elevator, etc

Packaging & Shipping

1. Trade term: FOB, EXW;

2. Lead time: 3-10 days for sample order, 7-25 days for mass production order

3. Port: Hong Kong, Shenzhen, etc.

4. Shipment: By air, by sea or by express

5. Payment condition: T/T, Paypal , or others.

Our Services

1.Good OEM & ODM business ability, 31 production lines meet your shipping requirement;

2. Your order will be dealt with promptly by a friendly and conscientious team, committed to providing a high level of service;

3. Discount offered is based on qty.

Company Information

1.Professional in designing, manufacturing and marketing all sorts of terminal blocks,

2.Headquarter located in Shenzhen, founded in 2003,

3.Set up the sub-branch in Suzhou City in 2014,

4.Total more than 800 workers,

5.Have gained UL, cUL, CQC, CE, VDE, TUV , ISO9001, ISO14001, etc. All products comply with ROHS, REACH standards

6.Key customers: EMERSON, BOSCH, ABB, PHILIPS, HUAWEI, ZTE, OMRON, SANTAK, SANKENLD, INOVANCE and INVT, etc.

FAQ

1. Are you a manufacturer or a trader?

We are a terminal block factory.

2. What kind of certificates do you have?

UL, CUL, VDE, CE, CQC

3. What kind of terminal blocks are offered?

There are 10 main series: Euro, Spring, Barrier, Pluggable, High Current Barrier, Through Panel, Feed Through, Perforation, Din Rail, Accessories.

4. What’s the payment?

We accept bank transfer, TT, Paypal & L/C, or others method.

5. What is lead time?

5-25 working days after receipt of deposit.

6. Is small order available?

Yes, we do not only supply MOQ order, but also small order for trial test or small projects.

7. If we can put my company logo on products?

We supply OEM service, it's fine to send goods with your company logo, but need to tool up the new inserts and apply the Multiple-Listing for the certificates.

8. Is all your products comply with RoHS?

Yes.

9. Do you have your own lab?

Yes, we have professional laboratory meets UL, VDE standards.
