Home > Products > High Current Terminal Blocks > Panel mount High Voltage Terminal connectors Pitch 27.0mm 600V 150A

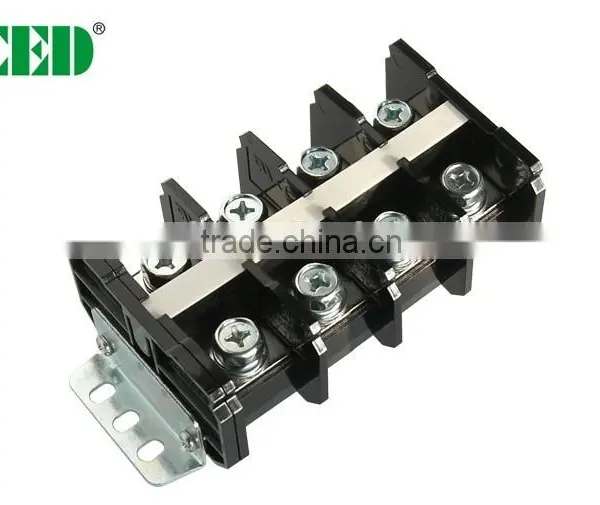

Panel mount High Voltage Terminal connectors Pitch 27.0mm 600V 150A
- 100000 Pole / Poles per Month
- Shenzhen
- T/T
Product Details
Place of Origin: | Guangdong, China | Brand Name: | SCED | Model Number: | TR150-01-BM0 |
Product Description

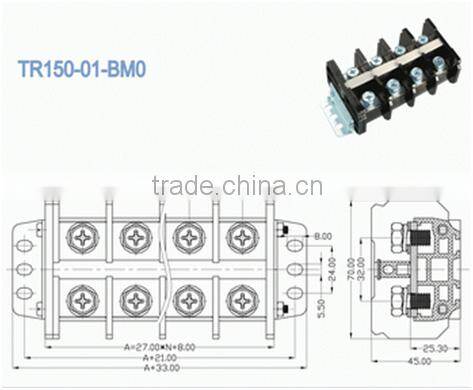

Drawing and spec.:
UL Technical Data | B | C | D |
Rated Voltage / Current V/A | 600 / 150 | 600 / 150 |
|
Wire Range AWG | 2/0-20 | 2/0-20 |
|
IEC Technical Data |
| ||
Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
Contamination Class | 3 | 2 | 2 |
Rated Voltage / Current V/A | 800 / 150 | 1000 / 150 | 1000 / 150 |
Rated Surge Voltage KV | 8 | 8 | 8 |
Rated Connecting Capacity mm2 | 60 | ||
Material |
| ||
Insulation Material / Inflammability Class | PC / UL94, V-0 | ||
Terminal / Plating | Brass / Nickel Plated | ||
Screw / Plating | Steel / Zinc Plated | ||
Other Data |
| ||
Stripping Length mm | 12-14 | ||
Screw / Torque / lbf.in | M8 / 31-40 |
Certification
Automatic Production:
Application:
Packaging & Shipping
- 1. Trade term: FOB, EXW;
- 2. Lead time: 3-10 days for sample order, 7-25 days for mass production order
- 3. Port: Hong Kong, Shenzhen, Shekou, etc.
- 4. Shipment: By air, by sea or by express
- 5. Payment condition: T/T, Paypal, or others.
Company information
Professional in designing, manufacturing and marketing all sorts of terminal blocks,
Headquarter located in Shenzhen, founded in 2003,
Set up the sub-branch in Suzhou City in 2014,
Total more than 800 workers,
Have gained UL, cUL, CQC, CE, VDE, TUV , ISO9001, ISO14001, etc.
All products comply with ROHS, REACH standards
Key customers: EMERSON, BOSCH, ABB, PHILIPS, HUAWEI, ZTE, OMRON, SANTAK, SANKENLD, INOVANCE and INVT, etc.
All your inquiries and orders will be taken care by us, we looking forward to your good advice and trade cooperation chances.
Our Services
1. Your inquiry will be replied within 8 hours;
2. Excellent design team with designers of more than 10 years experiences, can offer professional advice for practical application;
3. Good OEM & ODM business ability, 31 production lines meet your shipping requirement;
4. 800 workers, more than 10KK poles mounthly production capacity, the products export to North America, Europe, South America, Asia, etc;
5. Good OEM & ODM business ability, 31 production lines meet your shipping requirement;
6. Location in Shenzhen city and transportation is very convenience, 1-2 hours to Hong Kong or Guangzhou;
7. Discount offered is based on qty;
8. High quality component and material, various of choices depend on your needs;
9.Your order will be dealt with promptly by a friendly and conscientious team, committed to providing a high level of service.
Dear, thanks for your visiting, here SCED is on your service. Will you send me an enquiry for more details?
FAQ
1. Are you a manufacturer or a trader?
We are a terminal block factory.
2. What kind of certificates do you have?
UL, CUL, VDE, CE, CQC
3. What kind of terminal blocks are offered?
They are 10 main series: Euro, Spring, Barrier, Pluggable, High Current Barrier, Through Panel, Feed Through, Perforation, Din Rail, Accessories.
4. What’s the payment?
We accept bank transfer, TT, Paypal & L/C, or others method.
5. What is lead time?
5-25 working days after receipt of deposit.
6. Is small order available?
Yes, we do not only supply MOQ order, but also small order for trial test or small projects.
7. If we can put my company logo on products?
We supply OEM service, it's fine to send goods with your company logo, but need to tool up the new inserts and apply the Multiple-Listing for the certificates.
8. Is all your products comply with RoHS?
Yes.
9. Do you have your own lab?
Yes, we have professional laboratory meets UL, VDE standards.
Thanks for visiting our website,
Enjoy your shopping!
