2016 Led Matrix Moving Head Light

2016 Led Matrix Moving Head Light photo-1
2016 Led Matrix Moving Head Light photo-2
2016 Led Matrix Moving Head Light photo-3
2016 Led Matrix Moving Head Light photo-4
Negotiable MOQ: 2 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
LED Light Source:
CREE
Type:
Matrix Light
Input Voltage(V):
AC100-240V 50/60Hz
Payment & Shipping
Payment Methods:
Port of Shipment:
GuangZhou
Delivery Detail:
Delivery time depends on order quantity.
LED Light Source CREE
Type Matrix Light
Input Voltage(V) AC100-240V 50/60Hz
Lamp Power(W) 240
Lamp Luminous Flux(lm) 7950
Lamp Luminous Efficiency(lm/w) 85
Color Temperature(CCT) Other
Working Temperature(℃) -20, 40
Working Lifetime(Hour) 50000
IP Rating Other, IP20
Certification CE, EMC
Place of Origin Guangdong, China
Brand Name EV Light
Model Number EV MB336
Emitting Color ww
EV MB336 Matrix moving head light

Comes with the features of diverse effects, convenient stitching, Energy Conservation, Environmental Protection, EV-MB336 is highly favored by consumers. It is used for making stage special effect.

It is also ideal for entertainment places as KTV, disco, clubs etc. It is the best choice for creating atmosphere.

Product Details:

Photometrics
Light source: CREE XPE 3W 2800K LED
Lens Angle: 4.5°
Field Angle: 7°
Output: 6650 LUX @ 5 meters
Key Features
Pixel matrix: 6x6
Strobe: 0-30 HZ
Dimming mode: 16-bits dimming
I/O
Power connections: Seetronic / Neutrik (optional)
Data connections: 3-pin and 5-pin XLR DMX
Control
Protocol: DMX512
DMX Channels: 1/8/14/40/44
Built-in programs: Yes
Display: LCD display
Housing
Material: Plastic
Finish: rubberized coating
IP rate: IP20
Power
Mains: 100-240 VAC, 50/60 Hz
Consumption: 150W/220V
Thermal
Cooling: Fan
Max. Amblent: 40°C
Min. Amblent: -20°C
Max. Housing: 50°C
Physical
Dimensions: 372x230x440mm
Weight: 11 KG
Options
Power Cord: seetronic/Neutrik(optional) powerCon
Hanging device: optional

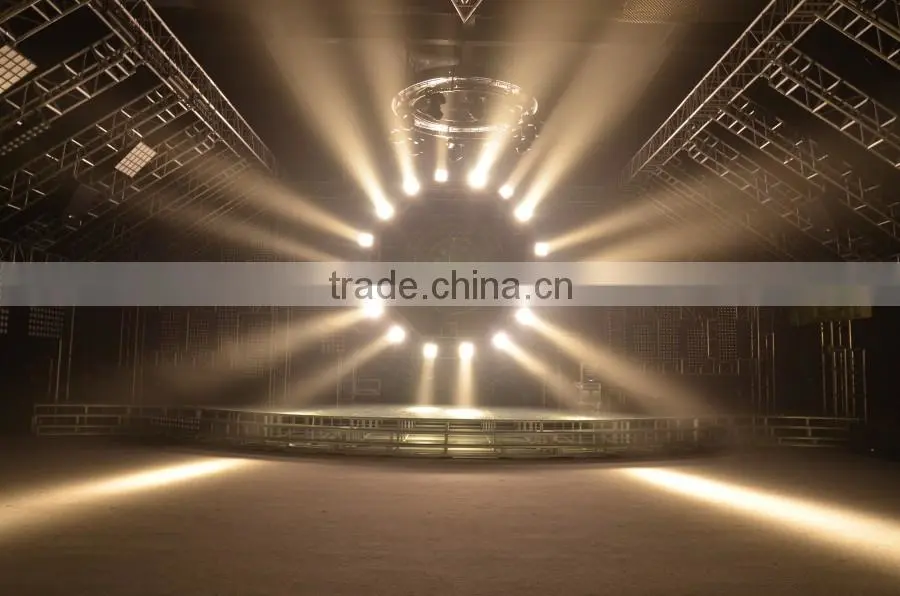

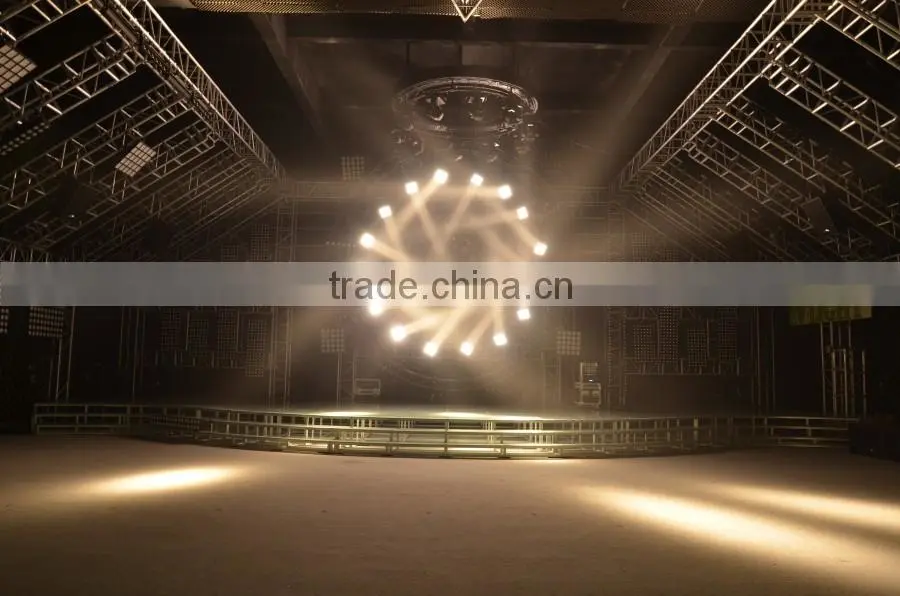

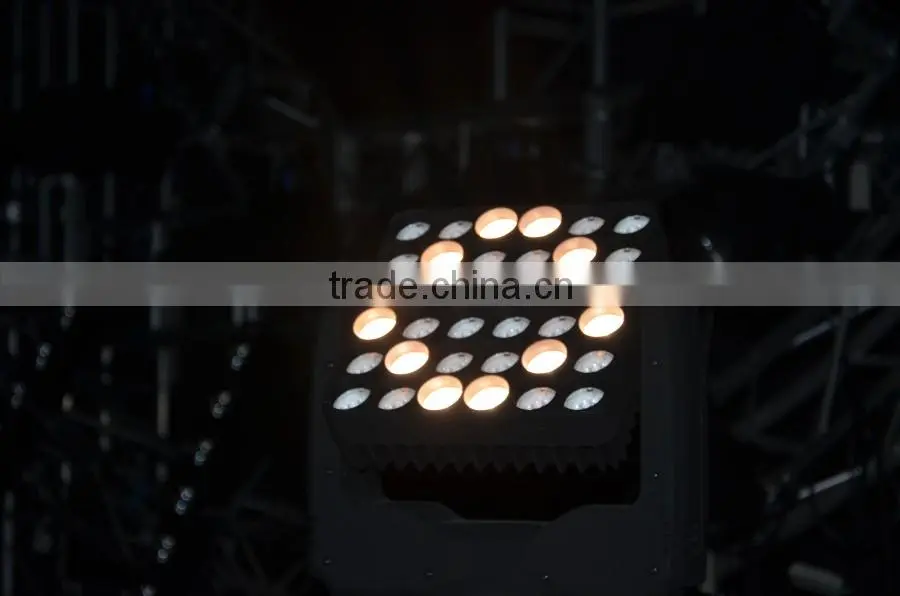

Light effect:
