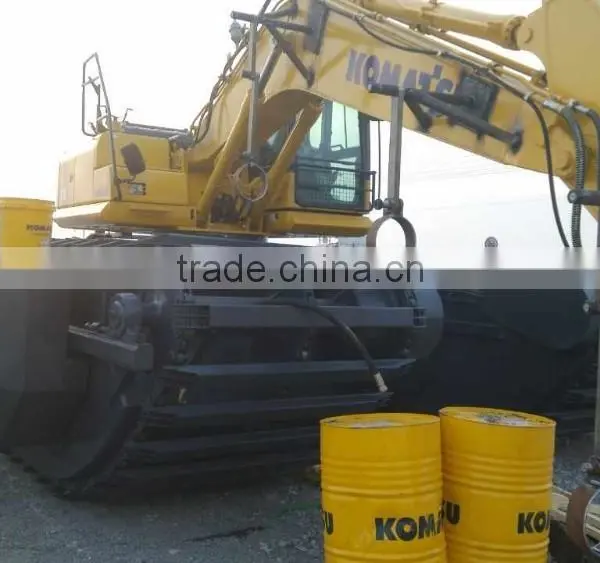

Brand New Amphibious Excavator With Side Pontoons GET210 Applicable in Max 5m Water Dredging Excavator photo-2
Brand New Amphibious Excavator With Side Pontoons GET210 Applicable in Max 5m Water Dredging Excavator photo-3
Brand New Amphibious Excavator With Side Pontoons GET210 Applicable in Max 5m Water Dredging Excavator photo-4

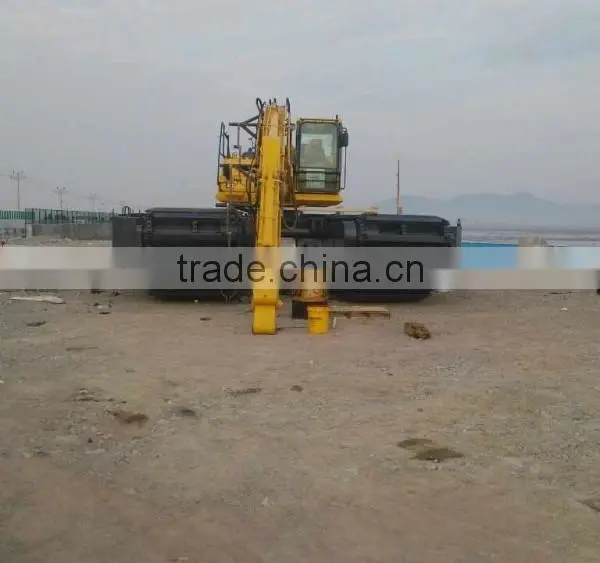

Brand New Amphibious Excavator With Side Pontoons GET210 Applicable in Max 5m Water Dredging Excavator photo-5
Brand New Amphibious Excavator With Side Pontoons GET210 Applicable in Max 5m Water Dredging Excavator photo-6
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Anhui, China
Brand Name:
GET
Model Number:
GET210
Contact Supplier Request Quote Chat Now
Hefei Get Engineering Equipment Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Anhui, China
Brand Name GET
Model Number GET210
Condition New
Moving Type Crawler Excavator
Operating Weight 33000 kg
Bucket capacity 0.9 m³
Maximum Digging Height 11400 mm
Maximum Digging Depth 7015 mm
Machine Weight 33000 kg
Max Digging Radius 11240 mm
Rated Speed 112/1950 kw/r
Certification CE&ISO9001: 2000
After-sales Service Provided Engineers available to service machinery overseas

Company intro

Hefei Get Engineering Equipment Manufacturing Co.,Ltd is a factory located in Feixi county Anhui, our star product is AMPHIBIOUS EXCAVATOR, besides, we also produce amphibious excavator undercarriage--pontoons, parts and other attachment. We have been in amphibious excavator fabrication field for over 6 years, we have a whole series of amphibious excavator, models like GET80, GET150, GET210,GET240 etc. We are going to move into our new factory site in HITACHI factory, I believe, our amphibious excavator manufacturing skills will be improved a lot under HITACHI system. If you are a contractor, dredging company, machinery dealer, I believe our amphibious excavator interests you.



Product intro

Amphibious excavator belongs to the catagory of construction machinery, excavator, it is a special kind of excavator which meets the demand of soft land excavation like swampland,silt,shallow water, river bank,pond,seashore etc.

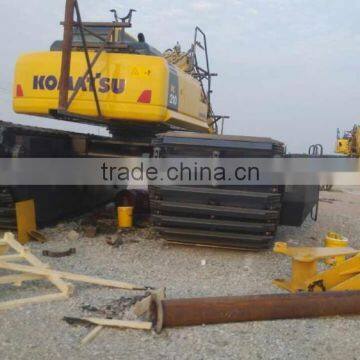

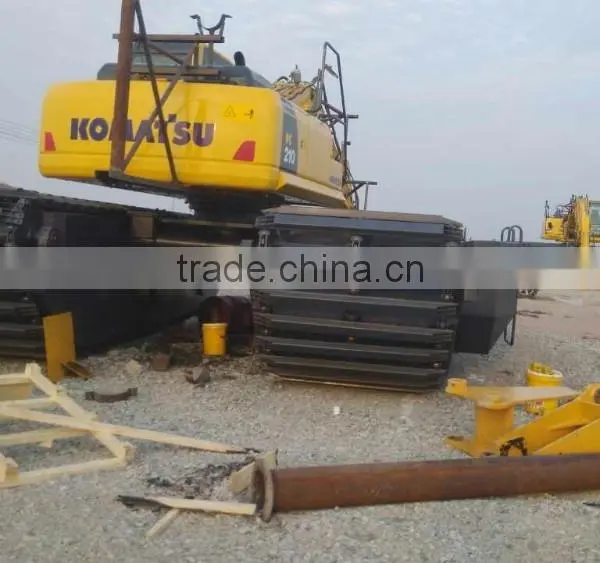

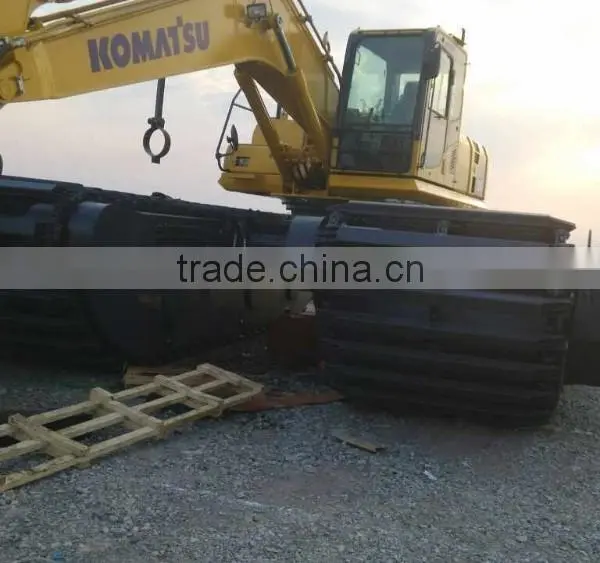

The amphibious excavator shown in the above pictures are specially designed amphibious excavator with side pontoons, in some certain working condtions where water depth is more than 1 meter and more buoyancy is required for better efficiency, side pontoons can provide larger buoyancy for amphibious excavator.

Main parameters

Brand new amphibious excavator with side pontoons GET210 applicable in max 5m water dredging excavator

Brand new amphibious excavator with side pontoons GET210 applicable in max 5m water dredging excavator



Specifications



Unit

GET210

Bucket Capacity

m3

0.9

Operating Weight

kg

33000

Power/Swing Speed

kW/r

112/1950

Number of Chains

Row

3

Ground Pressure

kg/cm2

0.13

Grade Ability

degree

30

Max. Travel Speed

km/h

3.3

Hydraulic System Pressure

MPa

34.3

Fuel Tank Capacity

L

400



Dimension



     Unit:mm

A Length of Pontoon

       8648

B Length of Pontoon on Ground

       5594

C Counter Weight Ground Clearance

       1904

D Length of Rear Upper Structure

       2850

E Overall Width of Upper Structure

       2735

F Cab Height

       3845

G Min.Ground Clearance

       1180

H Width of Pontoon

       1810

I Overall Width of Undercarriage

       5795

J Height for transportation

       3460

K Height of Pontoon

       1770

M Space between Pontoons

       1920

N Overall Length for transportation

       12070



Working Range



Unit: mm

A Max. Digging Reach

11240

A’ Max. Digging Reach

(on Ground)

10918

B Max. Digging Depth

7015

C Max. Digging Height

11400

D Max. Unloading Height

8541



Optional Attachments

1. Options for Bucket :Dredging Bucket, Strengthen Bucket, Customized Bucket

2. Side Pontoons

3. Deep Water Spuds

4. Option for 10M standard arm and 12.5M long arm



Paint feature of pontoons

Step1: Surface cleaning

Brand new amphibious excavator with side pontoons GET210 applicable in max 5m water dredging excavator

Step2: Chemical treatment

Brand new amphibious excavator with side pontoons GET210 applicable in max 5m water dredging excavator

Step3: First polishing

Brand new amphibious excavator with side pontoons GET210 applicable in max 5m water dredging excavator

Step4: Base paint

Brand new amphibious excavator with side pontoons GET210 applicable in max 5m water dredging excavator

Step5: Second polishing

Brand new amphibious excavator with side pontoons GET210 applicable in max 5m water dredging excavator

Step6: Coat paint

Brand new amphibious excavator with side pontoons GET210 applicable in max 5m water dredging excavator

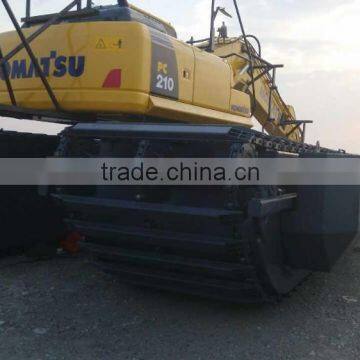

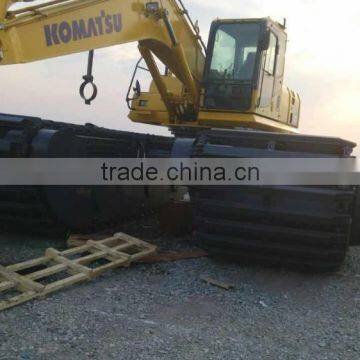

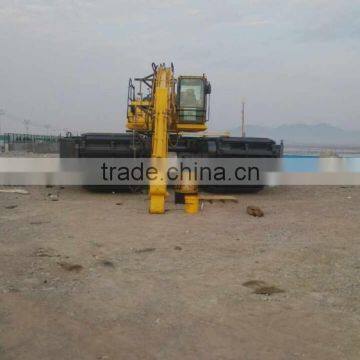

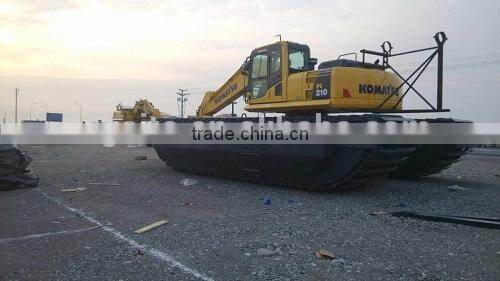

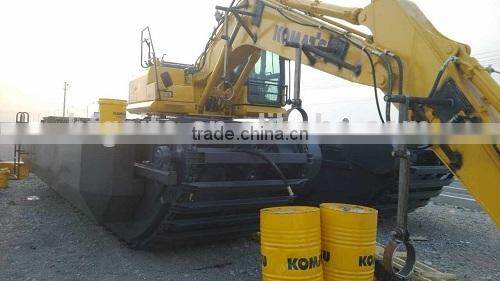

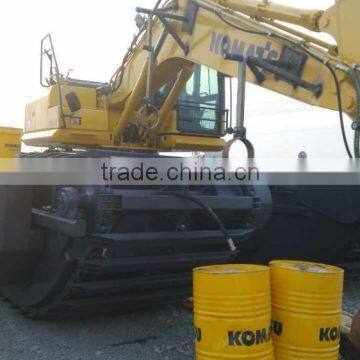

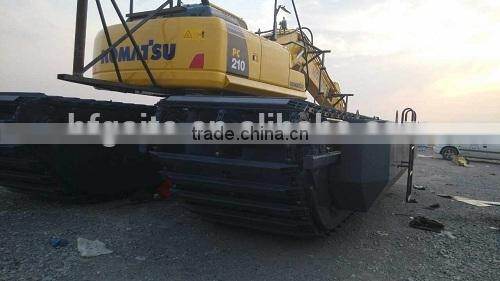

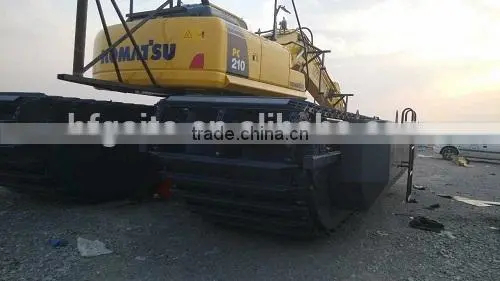

Amphibious excavator

Brand new amphibious excavator with side pontoons GET210 applicable in max 5m water dredging excavatorBrand new amphibious excavator with side pontoons GET210 applicable in max 5m water dredging excavatorBrand new amphibious excavator with side pontoons GET210 applicable in max 5m water dredging excavatorBrand new amphibious excavator with side pontoons GET210 applicable in max 5m water dredging excavator

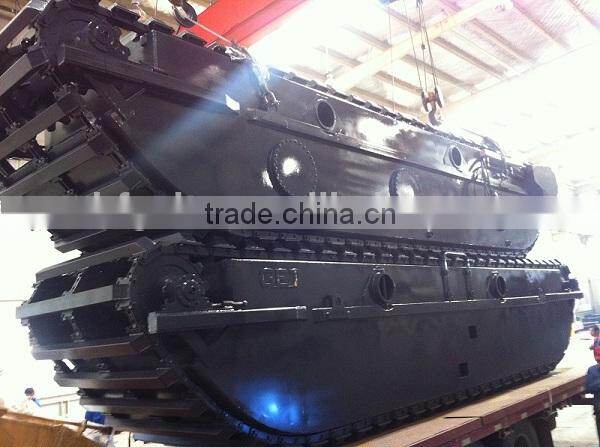

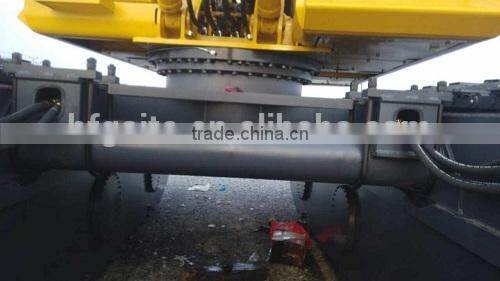

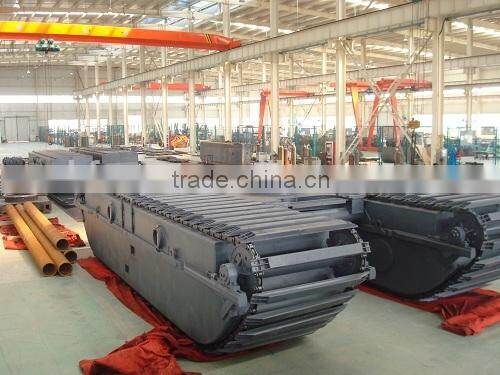

Amphibious excavator pontoons



Brand new amphibious excavator with side pontoons GET210 applicable in max 5m water dredging excavator

Brand new amphibious excavator with side pontoons GET210 applicable in max 5m water dredging excavator

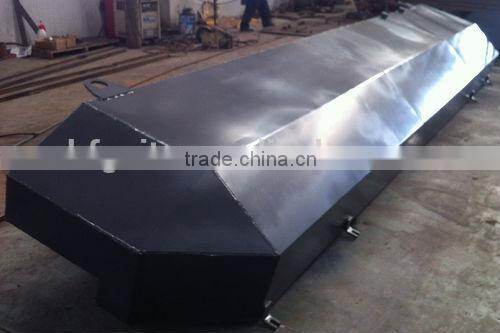

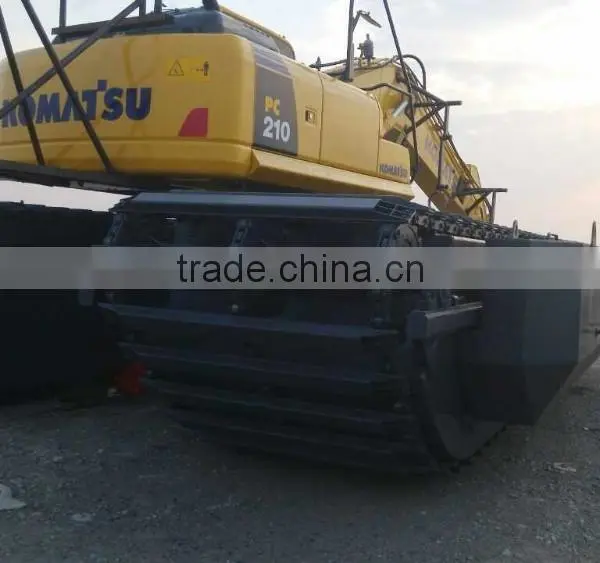

Amphibious excavator side pontoons

Brand new amphibious excavator with side pontoons GET210 applicable in max 5m water dredging excavator
