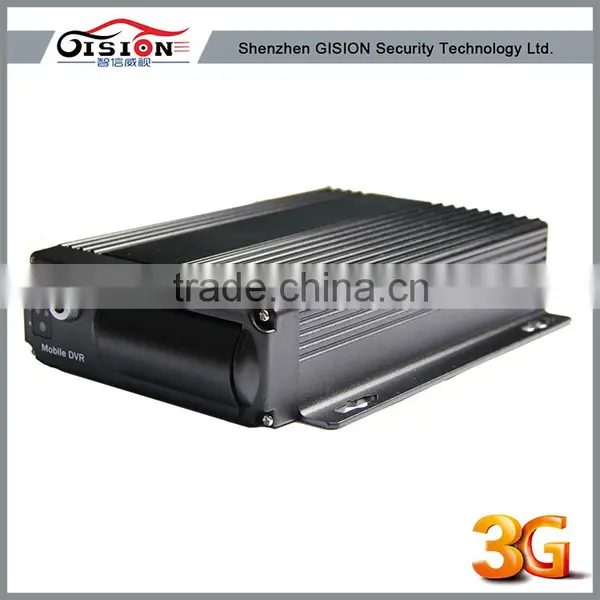

high quality factory price watchdog 3g mobile dvr

Project

Specification

Feature

System

Host processor

Hi3512

Operate System

Linux

Language

Chinese/English

User interface

GUI ,support USB mouse

Password

User password, administrator

 password two management

Video

Video Standard

PAL(625TVL,50F/S);NTSC(525TVL,60F/S)

Image Coding

H.264(Main Profile)

Monitoring quality

D1

Video resolution

CIF/D1

Coding

4CH  real time

Decoding

2CH D1 real time

Video Input

4 Channel Video Input

Video Output

2 Channel Video Output

Display

Support 1/4; support alarm screen

 automatically switches

Audio

Audio compression

ADPCM

Audio Input

4 Channel Audio Input

Audio Output

1 Channel RCA Audio Output

Recording mode

Sound and video recording Synchronously

Voice intercom

Support

Video and playback

Recording mode

Manual, time, alarm, loop recording

Video bit rate

64Kbps~1.5Mbps,6 level optional

Audio bit rate

8KB/s

Storage

Support 2pcs SD Card up to 128G

Video Search

By channel, time, recording type

Local Playback

file playback; 4-channel playback

ON/OFF

Boot mode

ACC, TIME

Shutdown mode

ACC delay shutdown, time off, hard disk lock off

Software Upgrade

Upgrade Mode

Manual upgrade, powered automatic upgrade

Upgrade Method

SD card; wireless network

Interface

Video Input

4 Channel Aviation

Video Output

1 Channel RCA

Audio Input

4 Channel Aviation

Audio Output

1 Channel RCA

Hard disk interface

1pcs SATA interface

USB Mouse

support

Ignition signal

1

Alarm Input

4

Alarm output

1

RS485

1

RS232

1

GPS

GPS

3G

WCDMA   EVDO   CDMA2000

Supporting software

PC Playback Software

video files playingback on the PC side,

 parsing the video file IO signal superimposed

, GPS information, etc.

CMS

Remote video preview through a wireless network,

 GPS upload, alarm and central command issued

 to upload, configuration parameters, and other functions

Others

Power Input

DC:8V~36V

Power Output

+12V@2A;+5V@2A

Operating Temperature

-20 --- 60℃

Power consumption

Empty 3.6W,full 20W

Size

180mm*147mm*41mm;
