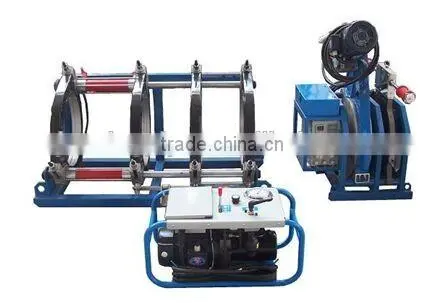

HDPE pipe hydraulic pressure butt welder
| Model No. | QL63-630 four rings manual |
| Material | aluminum alloy casting, 45# steel |
| Welding level(Φ, mm) | 90, 110, 125, 140, 160, 180, 200, 225, 250 280 315 400 450 500 630 |
| Docking deviation | ≤0.3mm |
| Working temperature | 220°c |
| Total power consumption | 3.5KW |
| Electric current | 15.9A |
| Temperature deviation | ±3°c |
| Environment temperature | -5……40°c |
| Time required to reach soldering temoerature | <20min |
| Materials can be welded | PE PP PB PVDF HDPE |
| Packing | plywood case |
| MOQ | 1 PCS |
| Delivery Port | FOB Ningbo/Shanghai, China |
| Payment Term | full T/T with 30% deposit |
| Lead Time | within 5 days |
| Sample | available |
| Certificate | ISO9001: 2008 |
We are manufacturing PE water supply pipe and gas supply pipe from DN20mm to DN 1600mm. Our PE pipe is widely used in the following areas:
1. Water supply system.
2. Industrial such as ducts for ventilation and air conditioning.
3. Environmental protection such as waste treatment plant pipes.
4. Agriculture such as Sprinkler piping for irrigation.
5. Others,such as Telecommunication cable ducting.
6. Transport sand/mud/slurry for dredger in dredging projects or sand suction.
7. Water transportation,slurry transportation,Vaccum,ocean filth transportation.
8. Floating cable casting lines.
9. Our pipe is suitable for gas transportation on condition that working tempreture is among -20 to 40 degree, and long-term maximum working pressure is not more than 0.7MPa. Juxing polyethylene gas pipe is suitable for gas distribution network both dometic and industrial consumption.
HDPE water supply pipe Specification:
Nominal Diameter(mm) |
SDR26 | SDR21 | SDR17 | SDR13.6 | SDR11 |
| PN6 | PN8 | PN10 | PN12.5 | PN16 | |
| Thickness | Thickness | Thickness | Thickness | Thickness | |
| 20 | 2 | 2 | 2 | 2 | 2 |
| 25 | 2 | 2 | 2.3 | 2.3 | 2.3 |
| 32 | 2 | 2.3 | 2.3 | 2.3 | 3 |
| 40 | 2.3 | 2.3 | 2.5 | 3 | 3.7 |
| 50 | 2.3 | 2.5 | 3 | 3.7 | 4.6 |
| 63 | 2.9 | 3 | 3.7 | 4.7 | 5.8 |
| 75 | 3 | 3.7 | 4.5 | 5.6 | 6.8 |
| 90 | 3.7 | 4.3 | 5.4 | 6.7 | 8.2 |
| 110 | 4.2 | 5.3 | 6.6 | 8.1 | 10 |
| 125 | 4.8 | 6 | 7.4 | 9.2 | 11.4 |
| 140 | 5.4 | 6.7 | 8.3 | 10.3 | 12.7 |
| 160 | 6.2 | 7.7 | 9.5 | 11.8 | 14.6 |
| 180 | 6.9 | 8.6 | 10.7 | 13.3 | 16.4 |
| 200 | 7.7 | 9.6 | 11.9 | 14.7 | 18.2 |
| 225 | 8.6 | 10.8 | 13.4 | 16.6 | 20.5 |
| 250 | 9.6 | 11.9 | 14.8 | 18.4 | 22.7 |
| 280 | 10.7 | 13.4 | 16.6 | 20.6 | 25.4 |
| 315 | 12.1 | 15 | 18.7 | 23.2 | 28.6 |
| 355 | 13.6 | 16.9 | 21.1 | 26.1 | 32.2 |
| 400 | 15.3 | 19.1 | 23.7 | 29.4 | 36.3 |
| 450 | 17.2 | 21.5 | 26.7 | 33.1 | 40.9 |
| 500 | 19.1 | 23.9 | 29.7 | 36.8 | 45.4 |
| 560 | 21.4 | 26.7 | 33.2 | 41.2 | 50.8 |
| 630 | 24.1 | 30 | 37.4 | 46.3 | 57.2 |
| 710 | 27.2 | 33.9 | 42.1 | 52.2 | 64.5 |
| 800 | 30.6 | 38.1 | 47.4 | 58.8 | 72.6 |
| 900 | 34.4 | 42.9 | 53.3 | 66.2 | 81.7 |
| 1000 | 38.2 | 47.7 | 59.3 | 72.5 | 90.2 |
| 1200 | 45.9 | 57.2 | 67.9 | 88.2 | - |
| 1400 | 53.5 | 66.7 | 82.4 | 102.9 | - |
| 1600 | 61.2 | 76.2 | 94.1 | 117.6 | - |
HDPE gas pipe Specificaiton:
Product Name |
Size(mm) |
Product Name |
Size(mm) |
|
HDPE pipe for gas supply SDR17.6, PN10 |
20x2.3 |
HDPE pipe for gas supply SDR11, PN16 |
20x3.0 |
25x2.3 |
25x3.0 |
||
32x2.3 |
32x3.0 |
||
40x2.3 |
40x3.7 |
||
50x2.9 |
50x4.6 |
||
63x3.6 |
63x5.8 |
||
75x4.3 |
75x6.8 |
||
90x5.2 |
90x8.2 |
||
110x6.3 |
110x10.0 |
||
125x7.1 |
125x11.4 |
||
140x8.0 |
140x12.7 |
||
160x9.1 |
160x14.6 |
||
180x10.3 |
180x16.4 |
||
200x11.4 |
200x18.2 |
||
225x12.8 |
225x20.5 |
||
250x14.2 |
250x22.7 |
||
280x15.9 |
280x25.4 |
||
315x17.9 |
315x28.6 |
||
355x20.2 |
355x32.3 |
||
400x22.8 |
400x36.4 |
||
450x25.6 |
450x40.9 |
||
500x28.4 |
500x45.5 |
||
560x31.9 |
560x50.9 |
||
630x35.8 |
630x57.3 |
PE water supply pipe:
Junxing polyetheylene pipes are a safe,long lasting and cost effictive solution for portable water supply,irrigation,telecom and gas distribution&slurry transport application with diameter from Dn20mm to1600mm. Juxing HDPE pipes are manufacturered from imported Basel virgin raw material with the help of the state of art manufacturing facilities.
PE dredging pipe:
Junxing HDPE dredging pipes have unique features for a long term,corrosion free abrasion resistance&low maintenance performance in the seas,lakes and all other water bodies. Our high density PE pipes are fitted with welded stub-ends&steel flanges. It's made from virgin compounded HDPE materials for high performance. Higher abrasion resistant varieties also available.
Our Main Products:
1. PE Pipes: PE water supply pipe, HDPE dredging pipe,PE Gas Pipe,PE Geothermal Pipe, PE-KM pipe for mines.
2. HDPE Double Wall Corrugated Pipe.
3. Pipes for floor heating: PB Pipe, PB/EVOH Pipe, PEX Pipe,PE-RT Pipe,PE-RT/EVOH Pipe.
4. Butt welding Aluminum-Plastic Composite Pipes: PERT-AL-PERT Pipe(RPAP5), PEX-AL-PET Pipe(DXPAP2),PERT-AL-PERT Pipe(RDPAP 7),PE-AL-PE Pipe.
5. PPR Pipes: PPR Hot/Cold Water Pipe, PPR-FB-PPR Pipe, PPR-AL-PPR Pipe,Nano Anti-bacterial PPR Pipe(βPPR)
6. Relative Pipe Fittings for above pipes: Tee/Valve/Elbow/Union/melt machines/bend/cross/coupling
