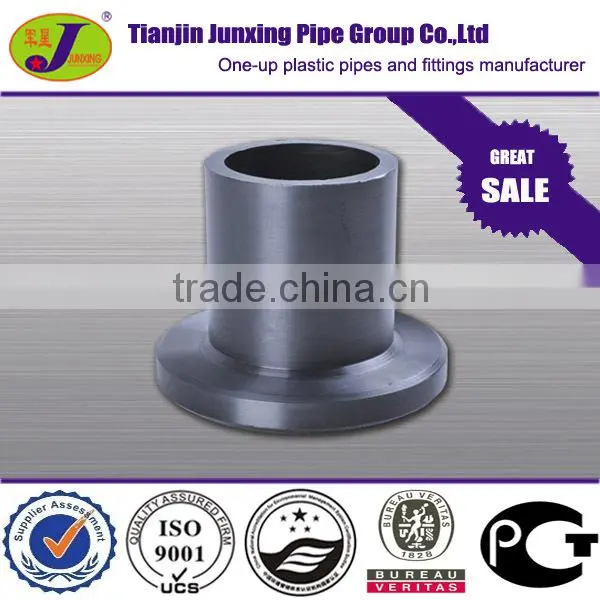

sdr 11 HDPE flange adaptor
Socket fustion tittings.
Butt fusion fittings.
Farbricated fittings.
OEM: acceptable.
Our Junxing brand is China's Well-Known Trademark, and Top 10 Manufacturer in China. We are manufacturing HDPE pipe, and producing the related Socket fustion tittings, Butt fusion fittings and Farbricated fittings.
Junxing polyetheylene pipes are a safe,long lasting and cost effictive solution for portable water supply,irrigation,telecom and gas distribution&slurry transport application with diameter from Dn20mm to1600mm. Diameter 1600mm is the largest in China. Juxing HDPE pipes are manufacturered from imported Basel virgin raw material with the help of the state of art manufacturing facilities.
PE dredging pipe:
Junxing HDPE dredging pipes have unique features for a long term,corrosion free abrasion resistance&low maintenance performance in the seas,lakes and all other water bodies. Our high density PE pipes are fitted with welded stub-ends&steel flanges. It's made from virgin compounded HDPE materials for high performance. Higher abrasion resistant varieties also available.
HDPE pipe for water supply Specification:
Nominal Diameter(mm) |
SDR26 | SDR21 | SDR17 | SDR13.6 | SDR11 |
| PN6 | PN8 | PN10 | PN12.5 | PN16 | |
| Thickness | Thickness | Thickness | Thickness | Thickness | |
| 20 | 2 | 2 | 2 | 2 | 2 |
| 25 | 2 | 2 | 2.3 | 2.3 | 2.3 |
| 32 | 2 | 2.3 | 2.3 | 2.3 | 3 |
| 40 | 2.3 | 2.3 | 2.5 | 3 | 3.7 |
| 50 | 2.3 | 2.5 | 3 | 3.7 | 4.6 |
| 63 | 2.9 | 3 | 3.7 | 4.7 | 5.8 |
| 75 | 3 | 3.7 | 4.5 | 5.6 | 6.8 |
| 90 | 3.7 | 4.3 | 5.4 | 6.7 | 8.2 |
| 110 | 4.2 | 5.3 | 6.6 | 8.1 | 10 |
| 125 | 4.8 | 6 | 7.4 | 9.2 | 11.4 |
| 140 | 5.4 | 6.7 | 8.3 | 10.3 | 12.7 |
| 160 | 6.2 | 7.7 | 9.5 | 11.8 | 14.6 |
| 180 | 6.9 | 8.6 | 10.7 | 13.3 | 16.4 |
| 200 | 7.7 | 9.6 | 11.9 | 14.7 | 18.2 |
| 225 | 8.6 | 10.8 | 13.4 | 16.6 | 20.5 |
| 250 | 9.6 | 11.9 | 14.8 | 18.4 | 22.7 |
| 280 | 10.7 | 13.4 | 16.6 | 20.6 | 25.4 |
| 315 | 12.1 | 15 | 18.7 | 23.2 | 28.6 |
| 355 | 13.6 | 16.9 | 21.1 | 26.1 | 32.2 |
| 400 | 15.3 | 19.1 | 23.7 | 29.4 | 36.3 |
| 450 | 17.2 | 21.5 | 26.7 | 33.1 | 40.9 |
| 500 | 19.1 | 23.9 | 29.7 | 36.8 | 45.4 |
| 560 | 21.4 | 26.7 | 33.2 | 41.2 | 50.8 |
| 630 | 24.1 | 30 | 37.4 | 46.3 | 57.2 |
| 710 | 27.2 | 33.9 | 42.1 | 52.2 | 64.5 |
| 800 | 30.6 | 38.1 | 47.4 | 58.8 | 72.6 |
| 900 | 34.4 | 42.9 | 53.3 | 66.2 | 81.7 |
| 1000 | 38.2 | 47.7 | 59.3 | 72.5 | 90.2 |
| 1200 | 45.9 | 57.2 | 67.9 | 88.2 | - |
| 1400 | 53.5 | 66.7 | 82.4 | 102.9 | - |
| 1600 | 61.2 | 76.2 | 94.1 | 117.6 | - |
Junxing offers a complete piping system manufactuerd in Medium Density Polyethylene- PE80 and PE 100 in black-for low pressure gas transport applications. The advantages of the PE pipe have been approved in the gas insustry. Polyethylene's toughness&light weighness adds to its cost effective and reliable solutions required for gas distribution systems. We can produce PE gas pipe with diameter 20mm to 630mm.
HDPE gas pipe Specificaiton:
Product Name |
Size(mm) |
Product Name |
Size(mm) |
|
HDPE pipe for gas supply SDR17.6, PN10 |
20x2.3 |
HDPE pipe for gas supply SDR11, PN16 |
20x3.0 |
25x2.3 |
25x3.0 |
||
32x2.3 |
32x3.0 |
||
40x2.3 |
40x3.7 |
||
50x2.9 |
50x4.6 |
||
63x3.6 |
63x5.8 |
||
75x4.3 |
75x6.8 |
||
90x5.2 |
90x8.2 |
||
110x6.3 |
110x10.0 |
||
125x7.1 |
125x11.4 |
||
140x8.0 |
140x12.7 |
||
160x9.1 |
160x14.6 |
||
180x10.3 |
180x16.4 |
||
200x11.4 |
200x18.2 |
||
225x12.8 |
225x20.5 |
||
250x14.2 |
250x22.7 |
||
280x15.9 |
280x25.4 |
||
315x17.9 |
315x28.6 |
||
355x20.2 |
355x32.3 |
||
400x22.8 |
400x36.4 |
||
450x25.6 |
450x40.9 |
||
500x28.4 |
500x45.5 |
||
560x31.9 |
560x50.9 |
||
630x35.8 |
630x57.3 |
Our Main Products:
1. PE Pipes: PE water supply pipe, HDPE dredging pipe,PE Gas Pipe,PE Geothermal Pipe, PE-KM pipe for mines.
2. HDPE Double Wall Corrugated Pipe.
3. Pipes for floor heating: PB Pipe, PB/EVOH Pipe, PEX Pipe,PE-RT Pipe,PE-RT/EVOH Pipe.
4. Butt welding Aluminum-Plastic Composite Pipes: PERT-AL-PERT Pipe(RPAP5), PEX-AL-PET Pipe(DXPAP2),PERT-AL-PERT Pipe(RDPAP 7),PE-AL-PE Pipe.
5. PPR Pipes: PPR Hot/Cold Water Pipe, PPR-FB-PPR Pipe, PPR-AL-PPR Pipe,Nano Anti-bacterial PPR Pipe(βPPR)
6. Relative Pipe Fittings for above pipes: Tee/Valve/Elbow/Union/melt machines/bend/cross/coupling
