40mm Steel HEX 3x3m(10ft X 110ft ) pop up tent frame

Specifications

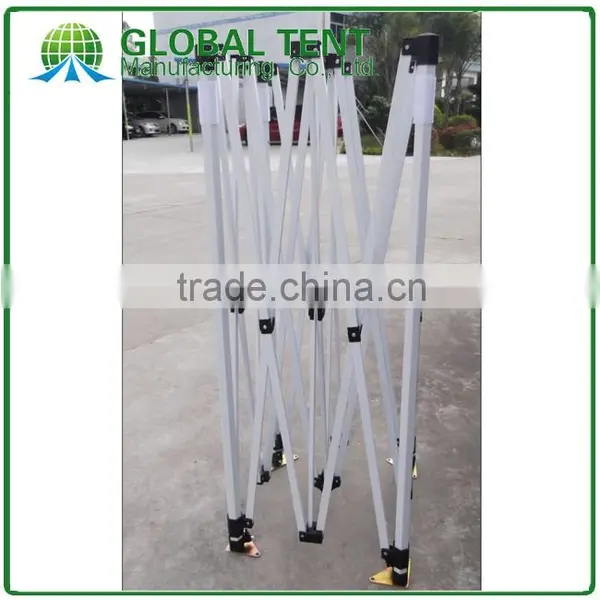

1.Easy folding hexagon steel tent frame
2.600D waterproof ,fireproof and UV resistant canopy
3. Full color dye sub printing













Features:



1. Tent Frame

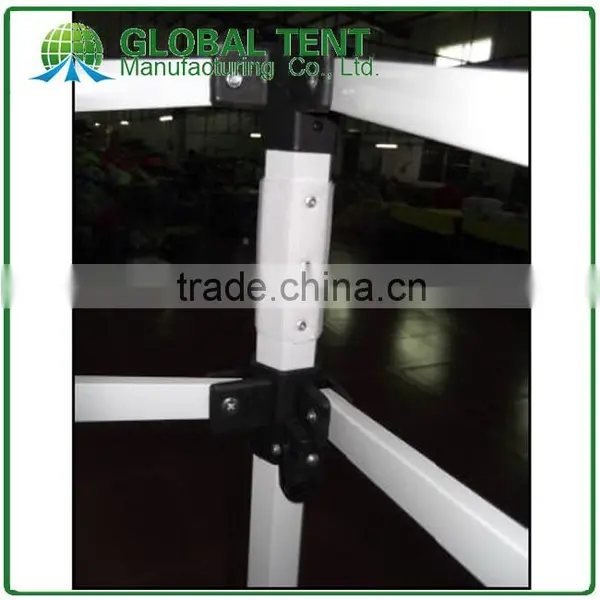

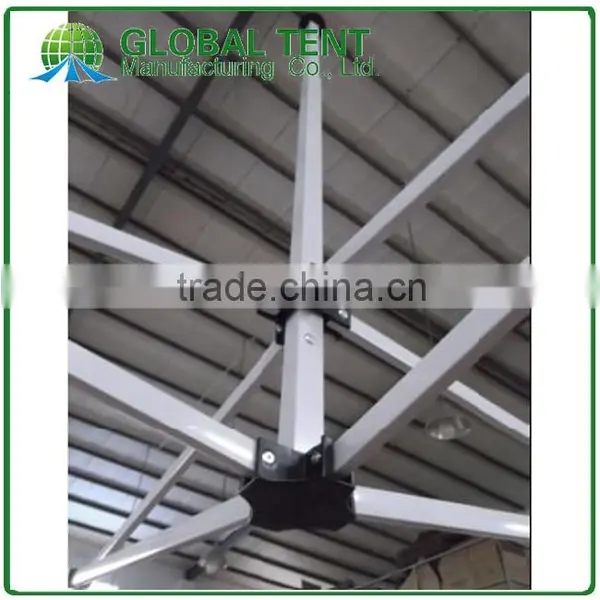

• White powder coated Hexagon-Steel frame
• Large foot plate
• Durable & Easy nylon connectors & push buttons



     **Out Leg:40x45x0.8mm

     **Inner Leg:36x42x0.8mm

     **Cross Bar:13x25x0.8mm













2.   Canopy Material

• 100% Commercial grade PVC or PU coated 600D polyester
• Flame retardant, 100% water-proof and Anti-UV
• Other options for 300D,420D,500D polyester ,oxford , canvas fabric
• More options for colors





Graphic on canopy/ back wall/ side wall



**Dye-sublimation printing

 **Silk screen printing

**We have our own printing department for these two kinds of printing to ensure the quality and to short our graphic turnaround time.





Dye-sublimation printing







Silk screen printing









Canopy Available Colors(Non-graphic):

• Blue
• Green
• Red
• Black
• White









Accessories:



1. Offer for free:

• Carrying bag
• Sandy bags
• Pegs



2. Rail for half wall:

• Steel rail with plastic clips

• Aluminum rail:





3.Other accessories:

• Roller carrying bag
• Weight plate
• Connector catch
• Weight bag

Weight:



26kgs for tent frame only

33kgs for the one with canopy





Shipping Dimension:



Tent frame: 27.5*27.5*154CM

Canopy: 42*42*20CM

Oxford carrying bag with wheels: 42*42*20CM





Standard Size of the tents:

• 3X3 M ( 10ft X 10ft )
• 3X4.5 M ( 10ft X15ft )
• 3X6 M (10ft X 20ft )



Other Steel Frame Information:



Parts Name	Steel Frame Series A/B(mm)			Steel Frame Series C(mm)
	Length	Width	Thickness	Length	Width	Thickness
Outer Leg	30	30	0.8/1.0	40	40	1.0
Inner Leg	25	25	0.8/1.0	35	35	1.0
Cross Bar (Square section)	23	13	0.8/1.0	30	15	0.8
Cross Bar (Ellipse section)	25	12	0.8/1.0





 Size for the Frame:



Normal Size	Dimensions (cm)			Weight (kg)
	W	L	H	30mm Steel Frame A	30mm Steel Frame B	40mmSteel Frame C	Top
1.5x1.5m	150	150	228	14	18		2.2
2x2m	200	200	228	15.5	21		2.6
2.5x2.5m	250	250	248	19	24		3.5
3x3m	300	300	248	21	26	27	4.5
3x4.5m	300	450	248	28	34		6.3
3x6m	300	600	248	35.5	46		7.8
4x4m	400	400	248				5.6
4x6m	400	600	248				8.2
4x8m	400	800	248				11
