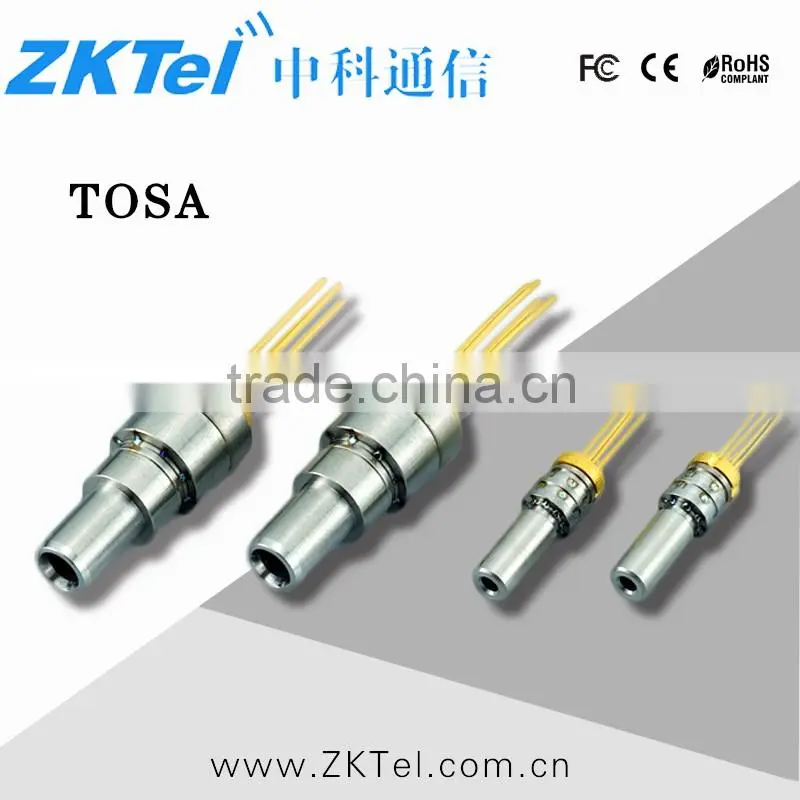

1310nm DFB 10Gbps Optical Sub Assembly TOSA SFP 0.5~1.2mW With Isolator -40~85C

1310nm DFB 10Gbps Optical Sub Assembly TOSA SFP 0.5~1.2mW With Isolator -40~85C thumbnail-1
1310nm DFB 10Gbps Optical Sub Assembly TOSA SFP 0.5~1.2mW With Isolator -40~85C thumbnail-2
1310nm DFB 10Gbps Optical Sub Assembly TOSA SFP 0.5~1.2mW With Isolator -40~85C thumbnail-3
1310nm DFB 10Gbps Optical Sub Assembly TOSA SFP 0.5~1.2mW With Isolator -40~85C thumbnail-4
1310nm DFB 10Gbps Optical Sub Assembly TOSA SFP 0.5~1.2mW With Isolator -40~85C photo-1
1310nm DFB 10Gbps Optical Sub Assembly TOSA SFP 0.5~1.2mW With Isolator -40~85C photo-2
1310nm DFB 10Gbps Optical Sub Assembly TOSA SFP 0.5~1.2mW With Isolator -40~85C photo-3
1310nm DFB 10Gbps Optical Sub Assembly TOSA SFP 0.5~1.2mW With Isolator -40~85C photo-4
US$ 5 - 10 MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
ZKTel
Model Number:
ZT412-A284-BF
Contact Supplier Request Quote Chat Now
Shaoxing ZKTel Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name ZKTel
Model Number ZT412-A284-BF
Product Description

1310nm DFB 10Gbps Optical Sub-Assembly


1310nm DFB 10Gbps Optical Sub-Assembly TOSA


1. Features

1310nm directly modulate DFB laser Diode

With Isolator integrated

Low noise, low distortion, low threshold current

-40-85℃ operation temperature range

Rohs Compliant and Lead Free

Excellent Reliability

Up to 10.7Gbps Data Rate

With FPC


2.Order Information

Part No.
Source
Wavelength
Data Rate
Output Power
Package series
Connector
Pin Type
ZT614-6xx1
DFB
1550nm
2.5G
2-3mw
Receptacle F
SC
LD-Pin-1
ZT412-5xx5
DFB
1310nm
1.25G
0.3-1mw
Receptacle A
FC-1
LD-Pin-2
ZT513-5xx5
FP
1550nm
1.25G
1-2mw
Receptacle B
FC-2
LD-Pin-2
ZT312-5xxx
FP
1310nm
1.25G
0.3-1mw
Receptacle E
ST-1
LD-Pin-2
ZT615-6xx7
DFB
1550nm
2.5G
3-4mw
D
FC/APC
LD-Pin-1
ZT415-5xx9
DFB
1310nm
1.25G
2-3mw
B
SC/APC
LD-Pin-1
ZT315-5xx7
FP
1310nm
1.25G
1-2mw
A
FC/APC
LD-Pin-1
ZT515-5xx7
FP
1550nm
1.25G
1-2mw
A
FC/APC
LD-Pin-1
ZT714-5xx7-29x
CWDM DFB
1290nm
1.25G
2-3mw
Pigtail B
FC/APC
LD-Pin-2
ZT714-5xx9-47x
CWDM DFB
1470nm
1.25G
2-3mw
Pigtail B
SC/APC
LD-Pin-1
ZT714-5xx9-59x
CWDM DFB
1590nm
1.25G
2-3mw
Pigtail B
SC/APC
LD-Pin-1
ZT714-5xx9-61x
CWDM DFB
1610nm
1.25G
2-3mw
Pigtail B
SC/APC
LD-Pin-1
ZT511-6xx3
FP
1550nm
2.5G
0.3-0.5mw
Receptacle
LC-TOSA
LD-Pin-2
ZT411-5xx3
DFB
1310nm
1.25G
0.3-0.5mw
Receptacle
LC-TOSA
LD-Pin-1
ZT613-6xx3
DFB
1550nm
2.5G
1-1.59mw
Receptacle
LC-TOSA
LD-Pin-2
ZT311-6xx3
FP
1310nm
2.5G
0.15-0.3mW
Receptacle
LC-TOSA
LD-Pin-2
ZT713-6xx9-61x
DFB
1610nm CWDM
2.5G
1-1.59mw
Receptacle
LC-TOSA
LD-Pin-2
ZT312-10xx3
DFB
1310nm
10G
0.2-1mW
Receptacle
LC-TOSA
LD-Pin-2
ZT312-5xx1
DFB
1310nm
1.25G
0.5-1mW
Receptacle
SC-TOSA6
LD-Pin-2
