Home > Products > SFF > BIDI SFF 2 * 5 2.5Gbps 1550nm 1310nm 20KM SC Transceiver CT Optical Module

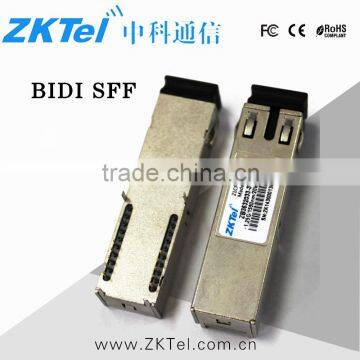

BIDI SFF 2 * 5 2.5Gbps 1550nm 1310nm 20KM SC Transceiver CT Optical Module

Name: BIDI SFF 2 * 5 2.5Gbps 1550nm 1310nm 20KM SC Transceiver CT Optical Module
Brand: ZKTel
Availability: InStock

FOB Price

USD $4 - $8 / Unit

1 Unit(Min.Order)

Supply Ability 100000 Unit / Units per Month
Port shanghai
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	China		Brand Name	ZKTel
Model Number	ZB3532044-3CS

Product Description

BIDI SFF 2*5 1550nm&1310nm 2.5Gbps 20km

2.5Gbps SFF 2*5 1550nm&1310nm SC Transceiver 20km 0~70℃

1. Features

Bidi Single Mode Transceiver

Industry Standard SFF Footprint

Central SC, Side SC, FC or ST connector

Single +3.3V or +5V Power Supply

PECL Differential Inputs and Outputs

PECL/LVPECL or TTL/LVTTL Signal Detection Output alternative

Uncooled laser diode with MQW structure

Complies with Telcordia (Bellcore) GR-468-CORE

RoHS-5 or RoHS-6 compliance are both available

Maximal Reach 20 km Transmission Distance

2. Application

ATM

Fast Ethernet

Switches

Routers

Hubs

3.Order Information

Package	Part No.	Data Rate Range	Wavelength	Optical Components	Distance Range	Connector	Case Temp.
BIDI SFF 2*5	ZB3352011-xxx	up to 155Mbps	1310/1550nm	FP/PIN	20km	SC/LC	Com./Ind.
BIDI SFF 2*5	ZB3532011-xxx	up to 155Mbps	1550/1310nm	FP/PIN	20km	SC/LC	Com./Ind.
BIDI SFF 2*5	ZB3354011-xxx	up to 155Mbps	1310/1550nm	FP/PIN	40km	SC/LC	Com./Ind.
BIDI SFF 2*5	ZB3534011-xxx	up to 155Mbps	1550/1310nm	DFB/PIN	40km	SC/LC	Com./Ind.
BIDI SFF 2*5	ZB3356011-xxx	up to 155Mbps	1310/1550nm	FP/PIN	60km	SC/LC	Com./Ind.
BIDI SFF 2*5	ZB3536011-xxx	up to 155Mbps	1550/1310nm	DFB/PIN	60km	SC/LC	Com./Ind.
BIDI SFF 2*5	ZB3358011-xxx	up to 155Mbps	1310/1550nm	DFB/PIN	80km	SC/LC	Com./Ind.
BIDI SFF 2*5	ZB3538011-xxx	up to 155Mbps	1550/1310nm	DFB/PIN	80km	SC/LC	Com./Ind.
BIDI SFF 2*5	ZB3352022-xxx	up to 622Mbps	1310/1550nm	FP/PIN	20km	SC/LC	Com./Ind.
BIDI SFF 2*5	ZB3532022-xxx	up to 622Mbps	1550/1310nm	DFB/PIN	20km	SC/LC	Com./Ind.
BIDI SFF 2*5	ZB3354022-xxx	up to 622Mbps	1310/1550nm	FP/PIN	40km	SC/LC	Com./Ind.
BIDI SFF 2*5	ZB3534022-xxx	up to 622Mbps	1550/1310nm	DFB/PIN	40km	SC/LC	Com./Ind.
BIDI SFF 2*5	ZB3352033-xxx	up to 1.25Gbps	1310/1550nm	FP/PIN	20km	SC/LC	Com./Ind.
BIDI SFF 2*5	ZB3532033-xxx	up to 1.25Gbps	1550/1310nm	DFB/PIN	20km	SC/LC	Com./Ind.
BIDI SFF 2*5	ZB3354033-xxx	up to 1.25Gbps	1310/1550nm	DFB/PIN	40km	SC/LC	Com./Ind.
BIDI SFF 2*5	ZB3534033-xxx	up to 1.25Gbps	1550/1310nm	DFB/PIN	40km	SC/LC	Com./Ind.
BIDI SFF 2*5	ZB3356033-xxx	up to 1.25Gbps	1310/1550nm	DFB/PIN	60km	SC/LC	Com./Ind.
BIDI SFF 2*5	ZB3536033-xxx	up to 1.25Gbps	1550/1310nm	DFB/PIN	60km	SC/LC	Com./Ind.
BIDI SFF 2*5	ZB3351544-xxx	up to 2.5Gbps	1310/1550nm	DFB/PIN	15km	SC/LC	Com./Ind.
BIDI SFF 2*5	ZB3531544-xxx	up to 2.5Gbps	1550/1310nm	DFB/PIN	15km	SC/LC	Com./Ind.
BIDI SFF 2*5	ZB3354044-xxx	up to 2.5Gbps	1310/1550nm	DFB/PIN	40km	SC/LC	Com./Ind.
BIDI SFF 2*5	ZB3534044-xxx	up to 2.5Gbps	1550/1310nm	DFB/PIN	40km	SC/LC	Com./Ind.
BIDI SFF 2*10	ZB4352011-xxx	up to 155Mbps	1310/1550nm	FP/PIN	20km	SC/LC	Com./Ind.
BIDI SFF 2*10	ZB4532011-xxx	up to 155Mbps	1550/1310nm	FP/PIN	20km	SC/LC	Com./Ind.
BIDI SFF 2*10	ZB4354011-xxx	up to 155Mbps	1310/1550nm	FP/PIN	40km	SC/LC	Com./Ind.
BIDI SFF 2*10	ZB4534011-xxx	up to 155Mbps	1550/1310nm	DFB/PIN	40km	SC/LC	Com./Ind.
BIDI SFF 2*10	ZB4356011-xxx	up to 155Mbps	1310/1550nm	FP/PIN	60km	SC/LC	Com./Ind.
BIDI SFF 2*10	ZB4536011-xxx	up to 155Mbps	1550/1310nm	DFB/PIN	60km	SC/LC	Com./Ind.
BIDI SFF 2*10	ZB4358011-xxx	up to 155Mbps	1310/1550nm	DFB/PIN	80km	SC/LC	Com./Ind.
BIDI SFF 2*10	ZB4538011-xxx	up to 155Mbps	1550/1310nm	DFB/PIN	80km	SC/LC	Com./Ind.
BIDI SFF 2*10	ZB4352022-xxx	up to 622Mbps	1310/1550nm	FP/PIN	20km	SC/LC	Com./Ind.
BIDI SFF 2*10	ZB4532022-xxx	up to 622Mbps	1550/1310nm	DFB/PIN	20km	SC/LC	Com./Ind.
BIDI SFF 2*10	ZB4354022-xxx	up to 622Mbps	1310/1550nm	FP/PIN	40km	SC/LC	Com./Ind.
BIDI SFF 2*10	ZB4534022-xxx	up to 622Mbps	1550/1310nm	DFB/PIN	40km	SC/LC	Com./Ind.
BIDI SFF 2*10	ZB4351033-xxx	up to 1.25Gbps	1310/1550nm	FP/PIN	10km	SC/LC	Com./Ind.
BIDI SFF 2*10	ZB4531033-xxx	up to 1.25Gbps	1550/1310nm	DFB/PIN	10km	SC/LC	Com./Ind.
BIDI SFF 2*10	ZB4352033-xxx	up to 1.25Gbps	1310/1550nm	FP/PIN	20km	SC/LC	Com./Ind.
BIDI SFF 2*10	ZB4532033-xxx	up to 1.25Gbps	1550/1310nm	DFB/PIN	20km	SC/LC	Com./Ind.
BIDI SFF 2*10	ZB4354033-xxx	up to 1.25Gbps	1310/1550nm	DFB/PIN	40km	SC/LC	Com./Ind.
BIDI SFF 2*10	ZB4534033-xxx	up to 1.25Gbps	1550/1310nm	DFB/PIN	40km	SC/LC	Com./Ind.
