Specifications
12ton Dongfeng 6x2 knuckle boom truck loading crane6x2 drive
right hand drive available
cummins engine 210ps
factory price

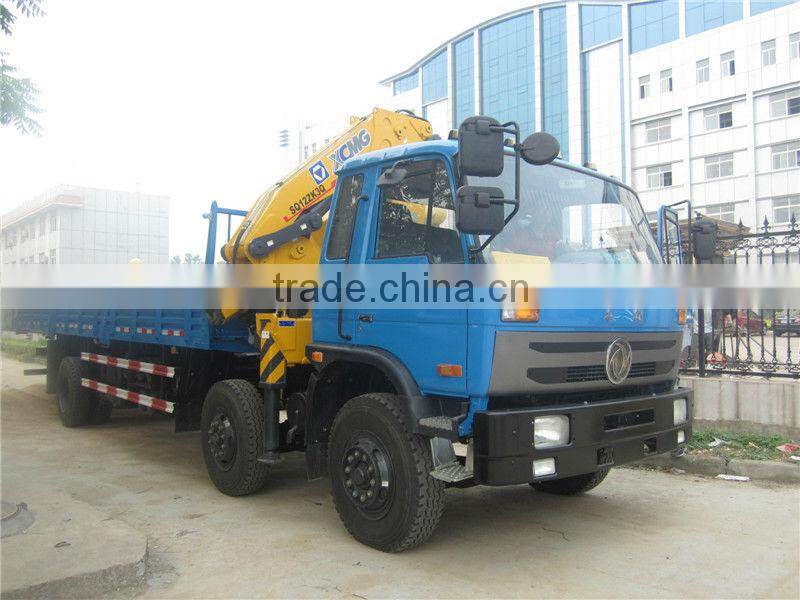

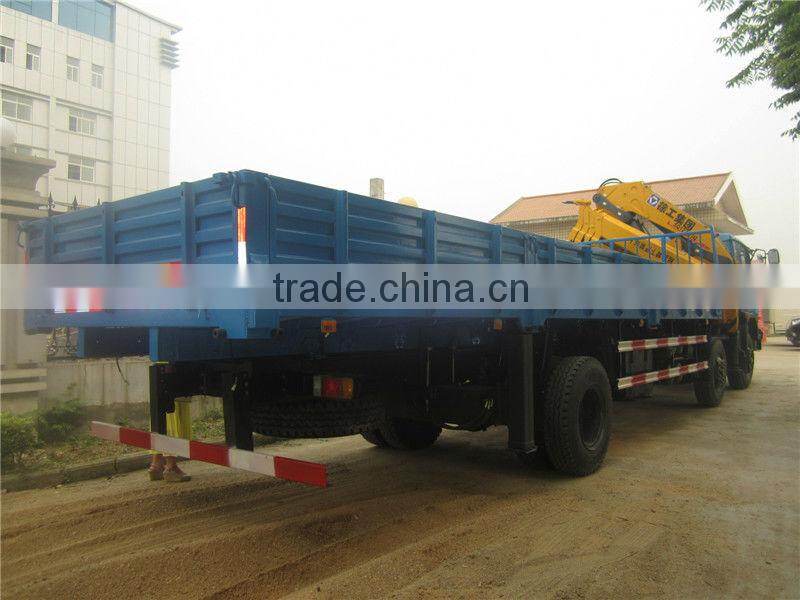

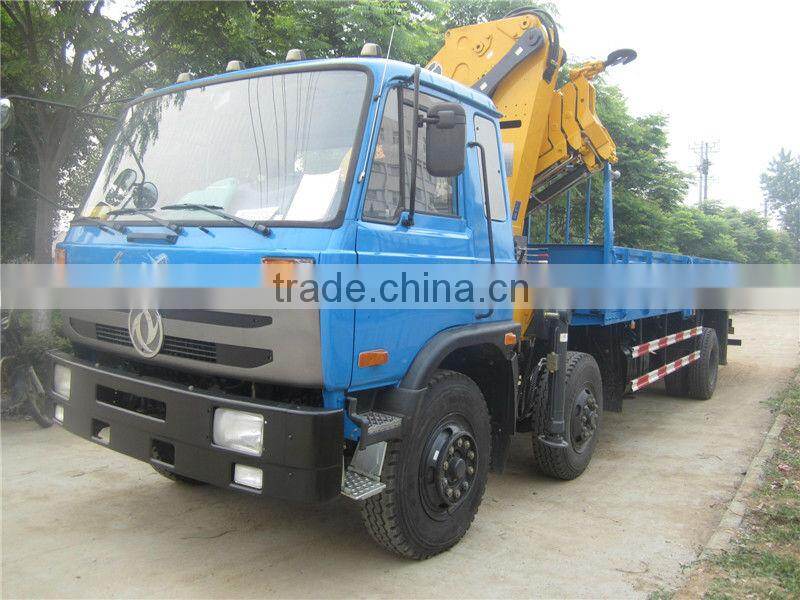

12ton Dongfeng 6x2 knuckle boom truck loading crane
Truck loading crane is also called truck mounted crane , have telescopic boom and knuckle boom optional , mounted on truck to lift and lower materials and to transport them to other places. Lifting capacity from 1T to 16T. Model: SQ1ZK2Q, SQ2ZK1, SQ3.2ZK1, SQ3.2ZK2, SQ4ZK2, SQ2SK2Q, SQ4SK2Q, SQ3.2SK1Q, SQ3.2SK2Q, SQ5ZK2Q, SQ6.3ZK2Q, SQ8ZK3Q, SQ6.3SK3Q, SQ5SK2Q, SQ6.3SK2Q, SQ5SK3Q, SQ10ZK3Q, SQ16ZK4Q, SQ10SK3Q, SQ12SK3Q, SQ16SK5Q.
Truck-mounted crane China CAP CCC Quality Certificate:
Vehicle name |
12ton Dongfeng 6x2 knuckle boom truck loading crane |
|
Manufacturer |
Hubei Jiangnan Special Automobile Co.,Ltd |
|
Condition |
Brand new |
|
Cabin |
Single row with sleeper bed , 3 seats |
|
Drive type |
6X2 |
|
Wheel base |
2150+5050 mm |
|
Overall dimension (L*W*H) |
11980×2490×3640 mm |
|
GVW |
24900 kg |
|
Curb weight |
11550 kg |
|
effective payload weight |
12455 kg |
|
Engine |
Engine model |
B210-33 |
Rated power / Displacement |
155 kw (210 hp) / 5900 ml |
|
Engine make |
DongFeng Cummins |
|
Emission standard |
Euro 2 |
|
Tire type |
10.00-20 |
|
Brake |
air brake |
|
Gear box |
6 speed , manual |
|
Inside dimension (L*W*H) |
8300*2294*550 (mm) |
|
Crane maxing lifting capacity |
12000kg |
|
Model |
SQ12ZK3Q |
Unit |
Max Lifting Capacity |
12000 |
kg |
Max Lifting Moment |
30 |
T.M |
Recommend Power |
32 |
kw |
Max Oil Flow of Hydraulic System |
55 |
L/min |
Max Pressure of Hydraulic System |
30 |
MPa |
Oil Tank Capacity |
160 |
L |
Rotation Angle |
All Rotation |
|
Crane Weight |
4130 |
kg |
Installation Space |
1400 |
mm |
SQ12ZK3Q Lifting capability diagram | |||||
Working radius (m) |
2.5 |
4.2 |
6.02 |
7.9 |
9.78 |
Lifting capacity (kg) |
12000 |
6900 |
4560 |
3410 |
2650 |
Image show
Customer visit our factory
Our factory certificates:
Our main products:
fire truck, aerial working truck, truck-mounted crane, garbage truck, road sweeper, sewage suction tanker truck, fecal sucking truck, refrigerated truck, fuel tanker truck, water tanker truck, cargo truck, van truck, semi-trailer, dump truck,tractor truck, concrete mixer truck, bulk cement truck .....
