Specifications
8-10ton DongFeng Lorry Crane6x4 drive
right hand drive available
cummins engine 210hp
telescopic boom

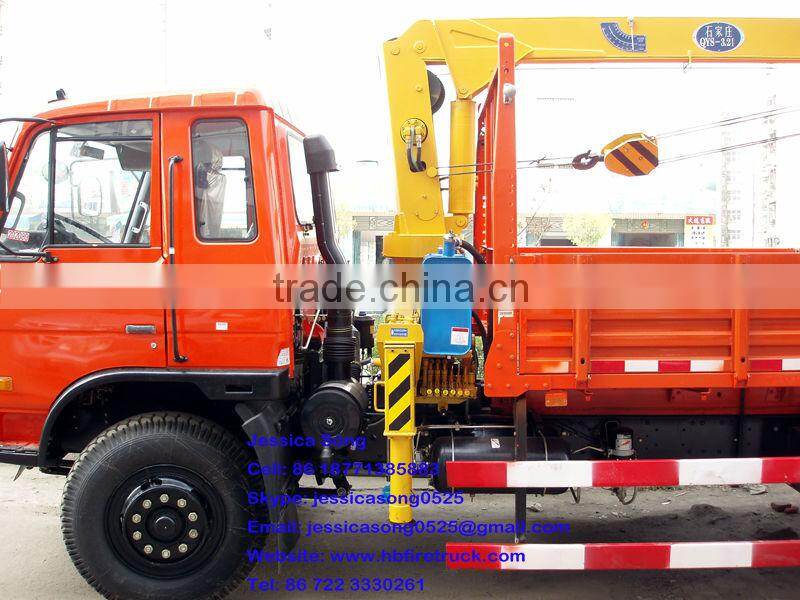

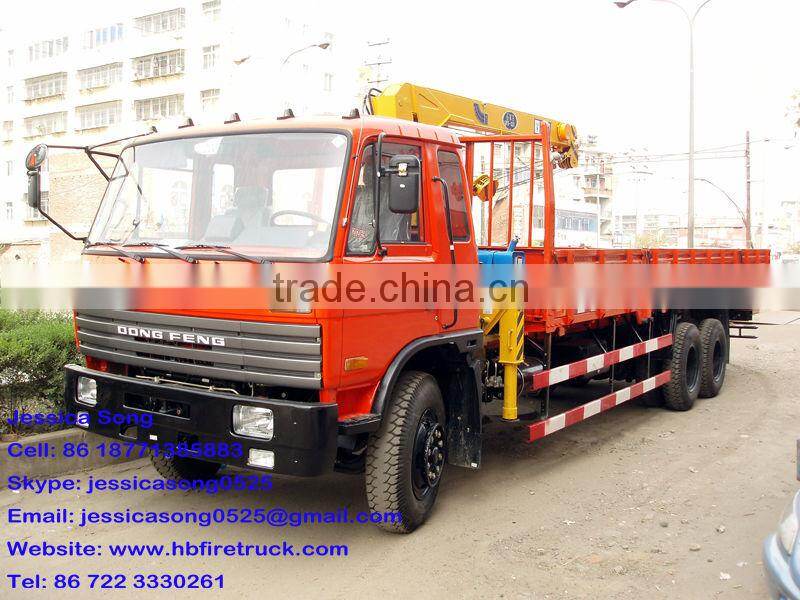

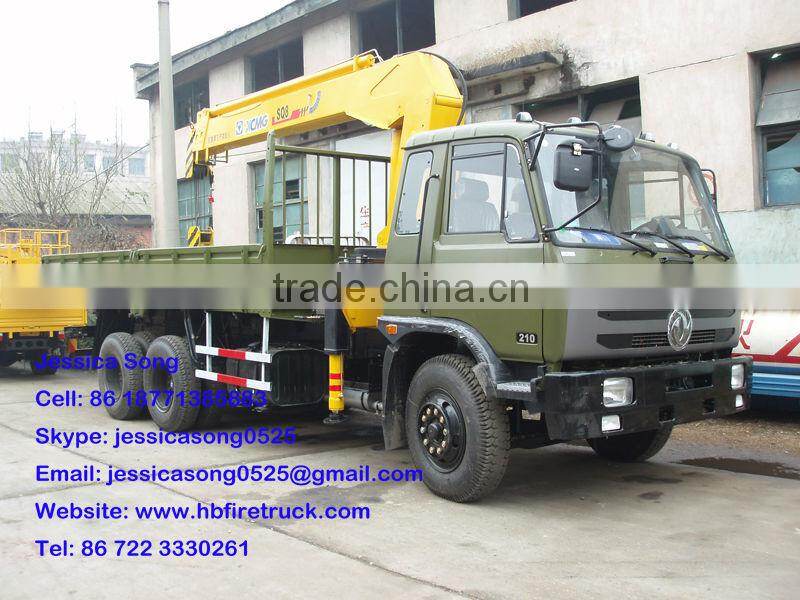

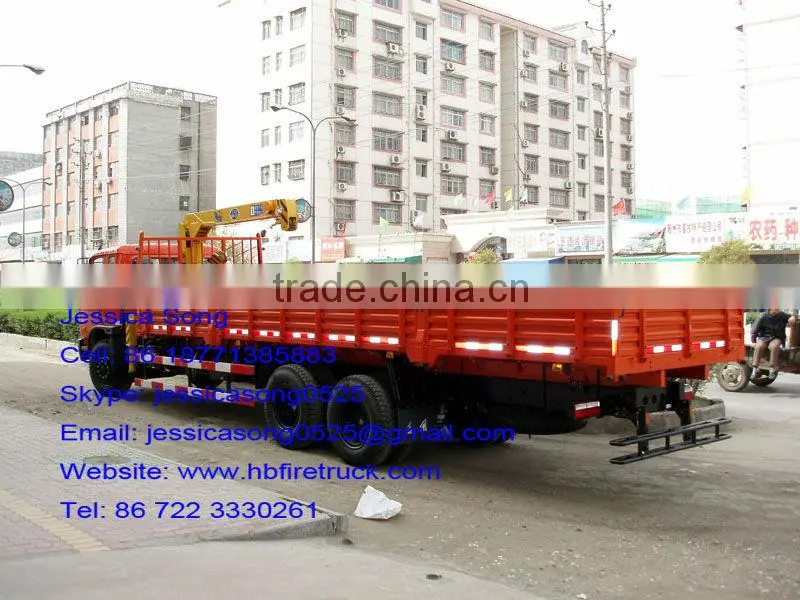

8-10ton DongFeng Lorry Crane
Features of this lorry crane:
1. Cummins engine 210hp, meet euro 3 emission standard.
2. Right hand drive orders accepted

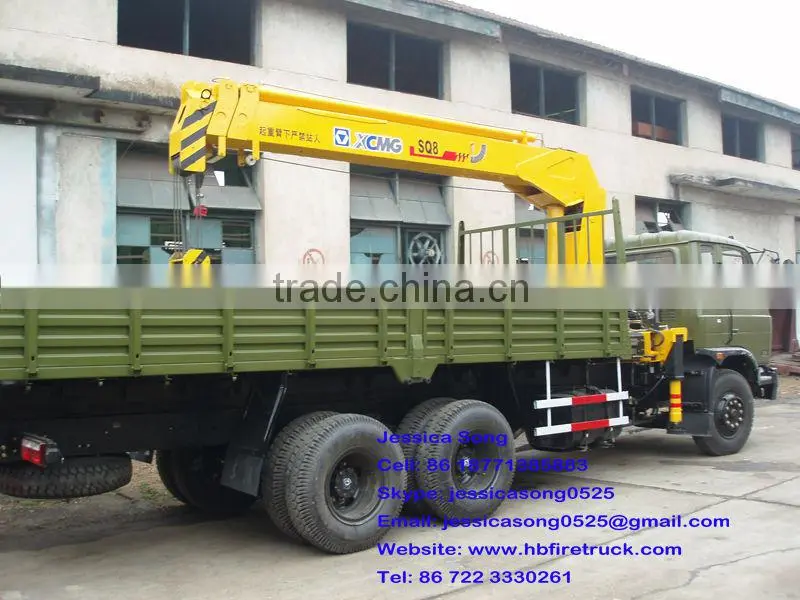

3. XCMG or SMJ high quality crane, telescopic boom or folding boom option.
4. Crand max lifting capacity 10ton at 2m.
5. Cargo box body dimension: 7190*2294*550mm
Vehicle name |
8-10ton DongFeng Lorry Crane |
|
Manufacturer |
Hubei Jiangnan Special Automobile Co.,Ltd |
|
Condition |
Brand new |
|
Model |
JDF5230JSQ2 |
|
Cabin |
Single row with sleeper bed, 3 seats |
|
Drive type |
6x4 |
|
Wheel base |
4350+1300 mm |
|
Overall dimension (L*W*H) |
10790×25495×3790 mm |
|
GVW |
22600 kg |
|
Curb weight |
12985 kg |
|
Effective payload weight |
9420 kg |
|
Engine |
Engine model |
B210-33 |
Rated power / Displacement |
155 kw (210 hp) / 5900 ml |
|
Engine make |
DongFeng Cummins |
|
Emission standard |
Euro 3 |
|
Tire type |
10.00-20 |
|
Inside dimension (L*W*H) |
7190*2294*550 (mm) |
|

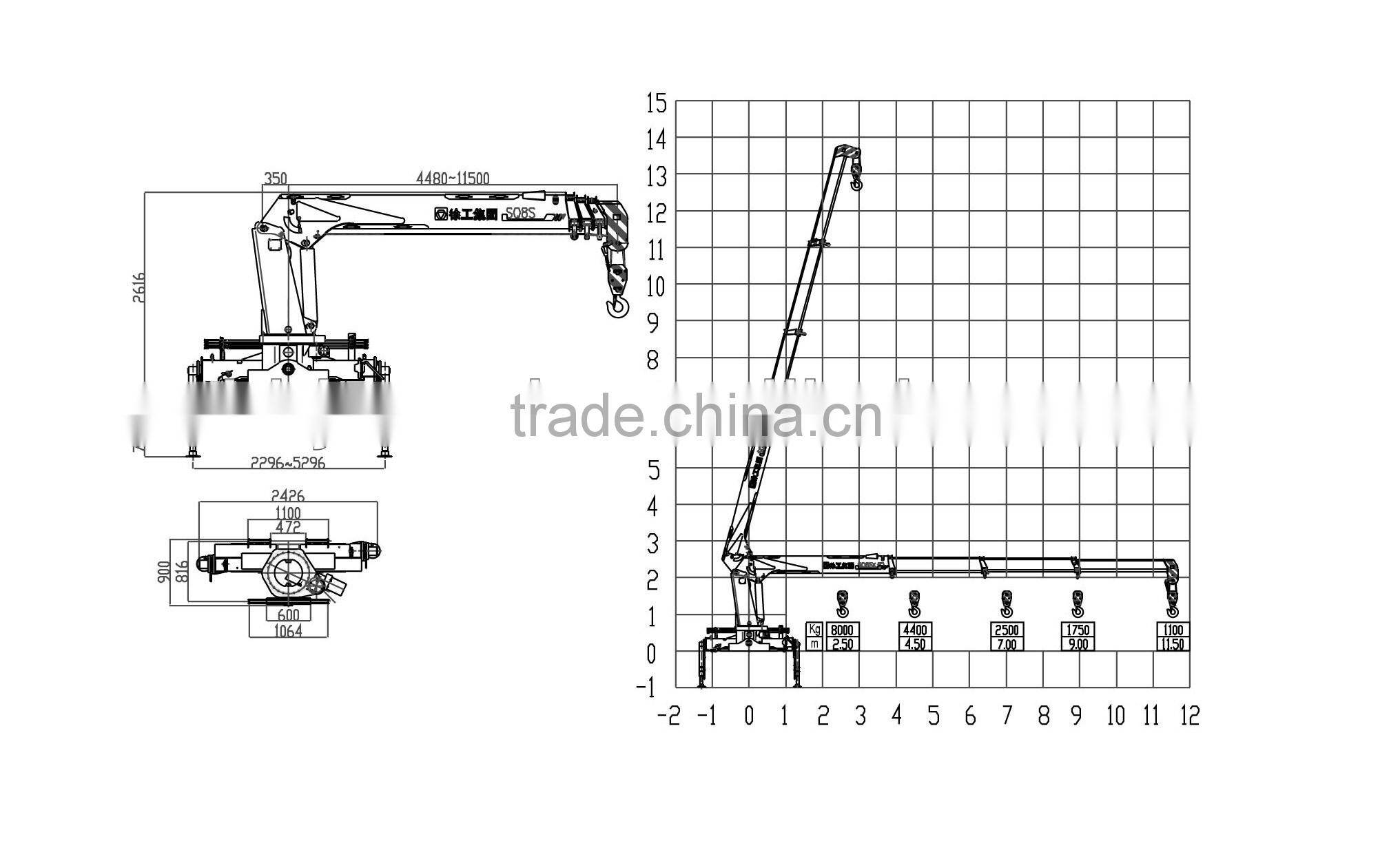

Crane maxing lifting capacity |
6300kg |
|

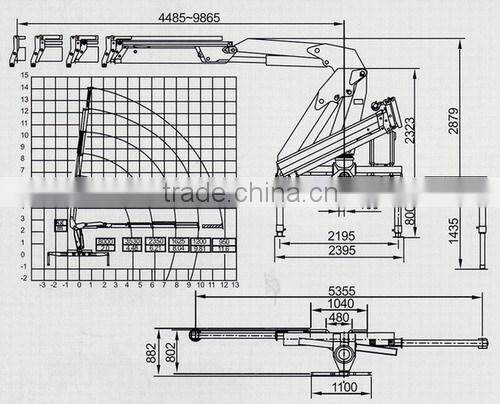

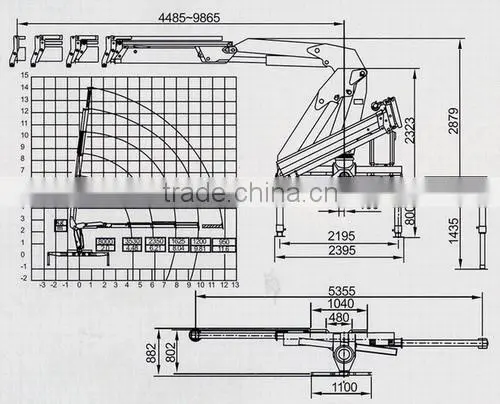

Boom type |
4 section of boom, telescopic boom (optional articulated boom) |
|

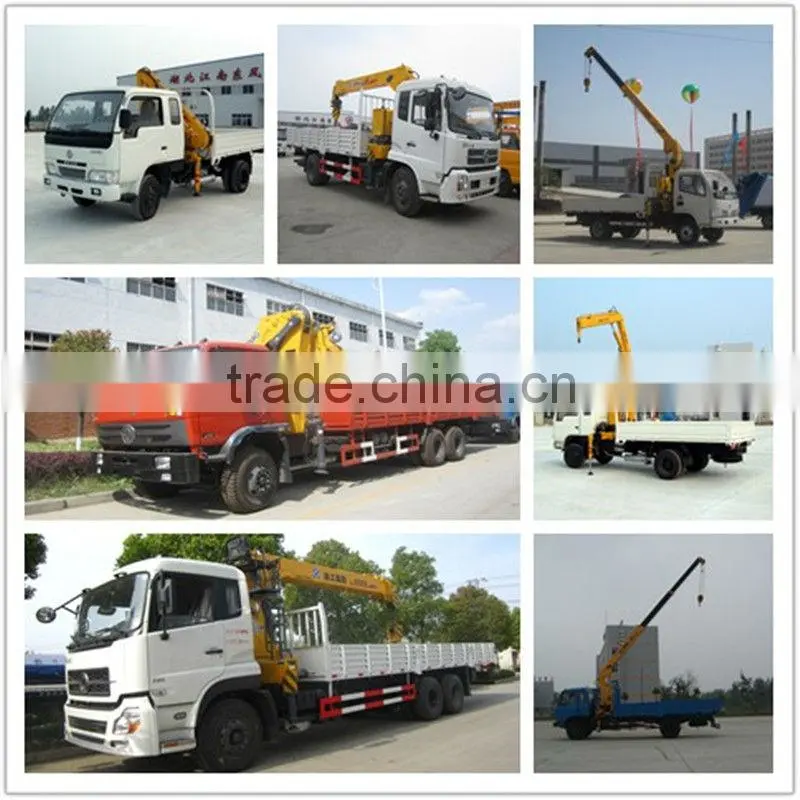

We manufacture and supply lorry crane from 1ton to 16ton, the crane boom have telescopic boom and foldable boom option. Dongfeng lorry crane, Isuzu lorry crane, Shacman lorry crane, Howo lorry crane, Foton lorry crane, FAW lorry crane, JAC lorry crane, Yuejin lorry crane, T-King lorry crane, JMC lorry crane, Beiben lorry crane, Hongyan lorry crane.
Our factory certificates
Customer visit our factory
Our main product:
fire truck, aerial working truck, truck-mounted crane, garbage truck, road sweeper, sewage suction tanker truck, fecal sucking truck, refrigerated truck, fuel tanker truck, water tanker truck, cargo truck, van truck, semi-trailer, dump truck,tractor truck, concrete mixer truck, bulk cement truck .....
Hubei Jiangnan Special Automobile Co., Ltd
Hubei Jiangnan DongFeng Special Automobile Co., Ltd
Jessica Song
Cell phone: 86 18771385883 / 86 15071634966 Tel: 86 722 3330261
Skype: jessicasong0525
Website: www.hbjntruck.en.china.cn
