XPS boardXPS insulation board
XPS foam board
Origin: Vietnam
Thermal insulation, soundproof, waterproof.
XPS BOARD
XPS INSULATION BOARD

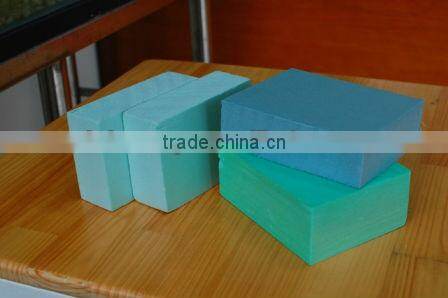

XPS Board (XPS Insulation Board) - made of extruded polystyrene.
XPS Board (XPS Insulation Board) - soundproof, heat insulation material.
XPS Board (XPS Insulation Board) - used in civil industrial and public constructions long times ago.
XPS Board (XPS Insulation Board) comes into many colour (green, blue...). Colour of XPS Board (XPS Insulation Board) can be made to particular requirement.
With XPS Board (XPS Insulation Board) (with thickness 15-18cm) we can save annual power energy from 343 - 344Kwh/m²
Advantages of XPS Board (XPS Insulation Board):
XPS Board (XPS Insulation Board) - variety of colours
XPS Board (XPS Insulation Board) - superior strength
XPS Board (XPS Insulation Board) - thermal insulation
XPS Board (XPS Insulation Board) - compressive insulation
XPS Board (XPS Insulation Board) - waterproof due to closed cell structure
XPS Board (XPS Insulation Board) - easy to spilit, merge and bend when applying
XPS Board (XPS Insulation Board) - save costs and reduce energy wasting
XPS Board (XPS Insulation Board) - friendly-enviromental, wokers can apply directly without any protection tools.
Applications of XPS Board (XPS Insulation Board):

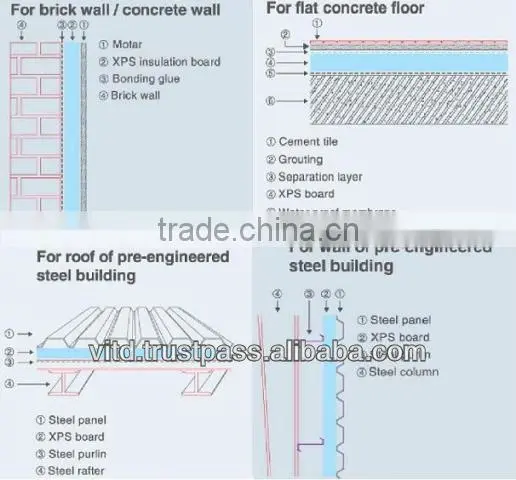

XPS Board (XPS Insulation Board) can be used for exterior wall, roof and foundation applications.
Profiles of XPS Board (XPS Insulation Board):
| Thickness (mm) | Width (mm) | Length (mm) | Density (kg/m3) |
| 20-100 | 600 - 900 - 1200 | 1200 - 2400 | 35 - 50 |
Dimension of XPS Board (XPS Insulation Board) can be made according to each requirement.
Specifications of XPS Board (XPS Insulation Board):
| Items | Test Method | Unit | Index |
| Thermal conductivity (k) | ASTM C177 | W/m.K | ≤0.030 @90% RH, 25°C |
| Compressive strength | ASTM D1621-73 | Kpa | 250 - 500 @10% Strain |
| Flexural strength | ASTM C203 - Method l | Kpa | ≥200 |
| Water absorption | ASTM D2848 | % | <1 by Volume, 24hr @50mm |
| Water vapor permeability | ASTM C355-64 | ng/pa.m.s | <3.0 @38°C, 88% RH |
| Dimension stability | ASTM C578-08 | % | <1.5 @-10 -> +60°C |
| Working temperature | ASTM C578-08 | °C | -60 -> +75 |
| Flame attributes | ASTM E84 |
Flame spread: <75 Smoke developed: <450 |
