Help Center2 Axles Low Bed Truck Trailer
US$ 19,000 - 21,000
MOQ: 1 Set
Key Specifications
Get Latest Price
OEM No.:
9192TDP
Max Payload:
30000kg
Size:
12000*3000*3100
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
40ft Skeleton Semi Trailer With 3 AxlesUS$ 15,000 - 17,000MOQ: 1 Set -
Manufacturer Sell 3 Axles Diesel Tank TrailerUS$ 23,000 - 24,000MOQ: 1 Set
-
3 Axles 55000 Liters Diesel TrailerUS$ 22,000 - 24,000MOQ: 1 Set
-
57000 Liters Oil Tank TrailerUS$ 22,000 - 24,000MOQ: 1 Set
-
55000 Liters Fuel Tank TrailerUS$ 22,000 - 24,000MOQ: 1 Set
OEM No.
9192TDP
Max Payload
30000kg
Size
12000*3000*3100
Place of Origin
Hubei, China
Brand Name
jiangte
Model Number
JDF9192TDP
Specifications
2 axles low bed truck trailerfactory sale
short lead time
small order accepted
best price
2 axles low bed truck trailer
| Standard Specification | |
| Model | JDF9192TDP |
| Demension(L*W*H) | 13000*3000*1500mm |
| Chassis(Main Beam) | Heavy duty and extra durability designed, Opting for high tensile steel |
| Q345.500mm height; Top flange 16*140mm; Middle flange 10mm; Bottom flange 20*140mm, Side beam30A, Floor Steel 3mm. | |
| Capacity:30T | |
| King pin | 2" standard welded style |
| Landing gear | FUWA 19"heavy duty landing gear |
| Axle | Two Units of American style FUWA(brand) 16T 10 Hole Axle |
| Suspension | Leaf spring 90*16mm 8pcs |
| Tyre ( Wheel Rim) | 9 units of 12.00R20 Double Coin Steel Tyre, include One spare tyre |
| 9 units of 8.5-20 Wheel rim | |
| Brake | Two unis of WABCO RE 6 relay valve;Four units of T30/30 Spring brake chamber |
| Two units of T30 Spring brake chamber | |
| Two units of reliable local brand 40L air tank | |
| Electric | International standard 24v circuit 7-pin ISO socket |
| Tail lamp with turn signal, brake light & reflector, side lamp etc. | |
| One set 6-core standard Cable. | |
| Painting | Sand blasting processing clean rust |
| 1 coat of anticorrosive primer | |
| 2 coats of finish urethane paint color at customer’s choice | |
| Other | One spare tyre holder; one box with a set of standard trailer tool |
| Distant from King pin to the front part: 450mm | |
| Packing | Transfer to Shanghai port, and carry by ro-ro ship, the ocean freight depends on the voulumn |

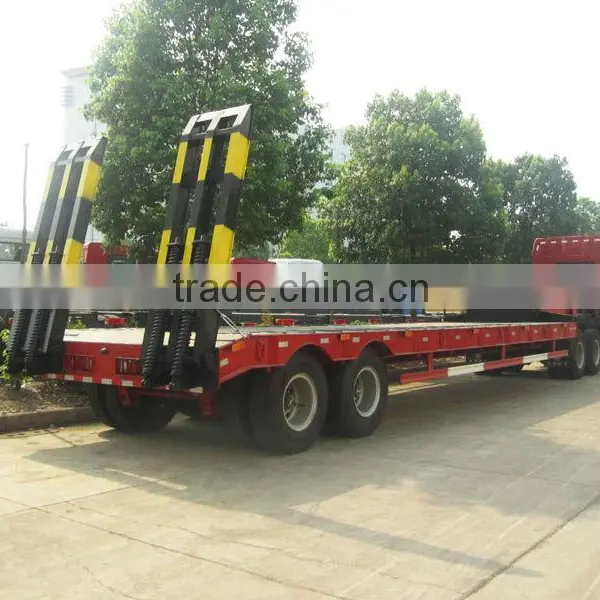

More image of the 2 axles low bed semi trailer :
Our factory main products:
fire truck, aerial work platform truck, garbage truck, vacuum sewage suction truck, fecal sucking truck, truck mounted crane, refrigerated truck, van truck, cargo truck, road sweeper, fuel tanker truck, water tank truck, dump truck, concrete mixer truck, oil tanker semi trailer, flat-bed semi trailer, skeleton semi trailer, low bed semi-trailer, tractor
