Specifications
40ft Skeleton semi trailer with 3 axles20ft to 45ft
load capacity up to 60ton
light and strong construction designing

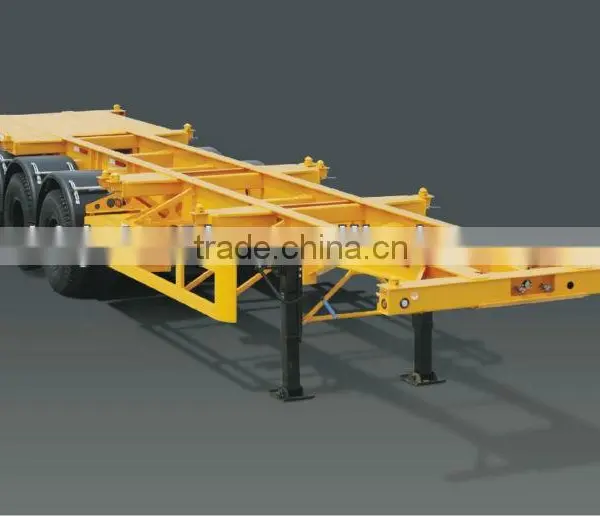

40ft skeleton semi trailer with 3 axles
Tare Weight |
6000kg |
Payload |
40000kg |
Total Weight |
46000kg |
Overall Length |
12400mm |
Overall Width |
2500mm |
|
Main Frame |
Heavy duty and extra durability designed; welded by automatic Submerged arc processes.450mm Height, Top Flange 16mm, 12pcs twist locks |
Axle |
3 x 13Ton FUWA (brand) axle |
Suspension |
Mechanical Suspension 4sets leaf spring |
Kingpin |
2” standard kingpin |
Landing Gear |
Two-speed, manual operation, landing gear |
Wheel Rim |
12 units 8”rim |
Tyre |
12units 11.00R20 |
Spare Wheel Carrier |
One set of spare wheel carrier including a riser |
|
Pneumatic Braking System |
Double line air brakes |
|
Electrical System |
24V system with standard 7 pole plug Rear electrical lighting, brake lights, indicators, fog lights and reversing light |
Painting |
Sand blasting before painting .One coats of primer, anti corrosion. Two coat of finish painting. Color advised by customer |
Accessory |
One tool box Side protection |

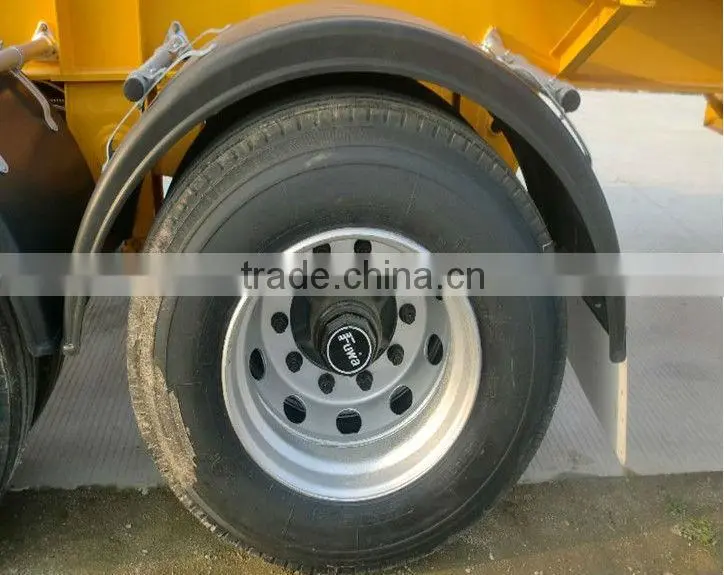

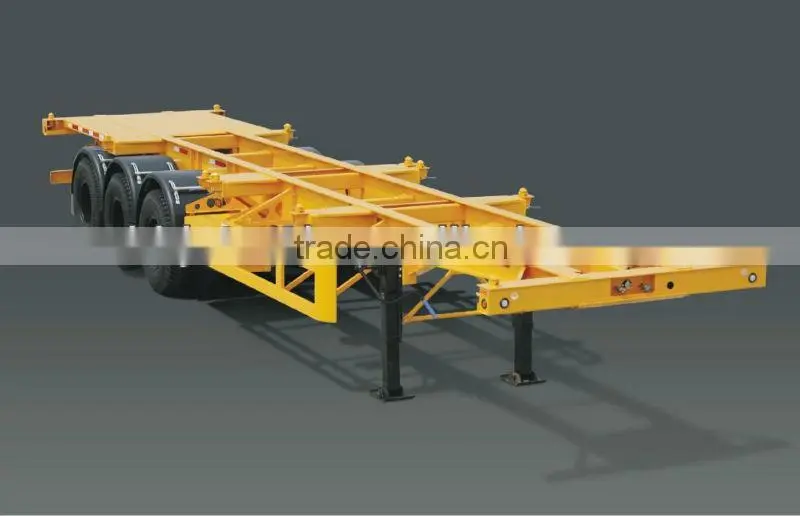

More image of 40ft skelton semi trailer:
Our factory main products:
fire truck, aerial work platform truck, garbage truck, vacuum sewage suction truck, fecal sucking truck, truck mounted crane, refrigerated truck, van truck, cargo truck, road sweeper, fuel tanker truck, water tank truck, dump truck, concrete mixer truck, oil tanker semi trailer, flat-bed semi trailer, skeleton semi trailer, low bed semi-trailer, tractor
