Help CenterTri-axle Lowboy Semi Trailer 40-50ton
US$ 19,000 - 21,000
MOQ: 1 Set
Key Specifications
Get Latest Price
OEM No.:
9405TDP
Max Payload:
40000kg
Size:
13000*3000*3100
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
3 Axle Low Flatbed Semi TrailerUS$ 19,000 - 21,000MOQ: 1 Set -
3 Axles 40ft Flatbed Semi TrailerUS$ 19,000 - 21,000MOQ: 1 Set
-
3 Axles Low Bed Loader TrailerUS$ 19,000 - 21,000MOQ: 1 Set
-
3 Axles Low Bed TrailerUS$ 19,000 - 21,000MOQ: 1 Set
-
2 Axles Low Bed Truck TrailerUS$ 19,000 - 21,000MOQ: 1 Set
OEM No.
9405TDP
Max Payload
40000kg
Size
13000*3000*3100
Place of Origin
Hubei, China
Brand Name
jiangte
Model Number
JDF9405TDP
Specifications
tri-axle lowboy semi trailer 40-50tonfactory sale
short lead time
small order accepted
best price
3 axles lowboy semi trailer
| Standard Specification | |
| Model | JDF9405TDP |
| Demension(L*W*H) | 13000*3000*3100mm |
| Chassis(Main Beam) | Heavy duty and extra durability designed, Opting for high tensile steel |
| Q345.500mm height; Top flange 16*140mm; Middle flange 10mm; Bottom flange 20*140mm, Side beam30A, Floor Steel 3mm. | |
| Capacity:40T | |
| King pin | 2" standard welded style |
| Landing gear | FUWA 19"heavy duty landing gear |
| Axle | Two Units of American style FUWA(brand) 16T 10 Hole Axle |
| Suspension | Leaf spring 90*16mm 8pcs |
| Tyre ( Wheel Rim) | 12 units of 8.2520 Double Coin Steel Tyre, include One spare tyre |
| 12 units of 8.5-20 Wheel rim | |
| Brake | Three unis of WABCO RE 6 relay valve;Four units of T30/30 Spring brake chamber |
| Three units of T30 Spring brake chamber | |
| Three units of reliable local brand 40L air tank | |
| Electric | International standard 24v circuit 7-pin ISO socket |
| Tail lamp with turn signal, brake light & reflector, side lamp etc. | |
| One set 6-core standard Cable. | |
| Painting | Sand blasting processing clean rust |
| 1 coat of anticorrosive primer | |
| 2 coats of finish urethane paint color at customer’s choice | |
| Other | One spare tyre holder; one box with a set of standard trailer tool |
| Distant from King pin to the front part: 450mm | |
| Packing | Transfer to Shanghai port, and carry by ro-ro ship, the ocean freight depends on the voulumn |

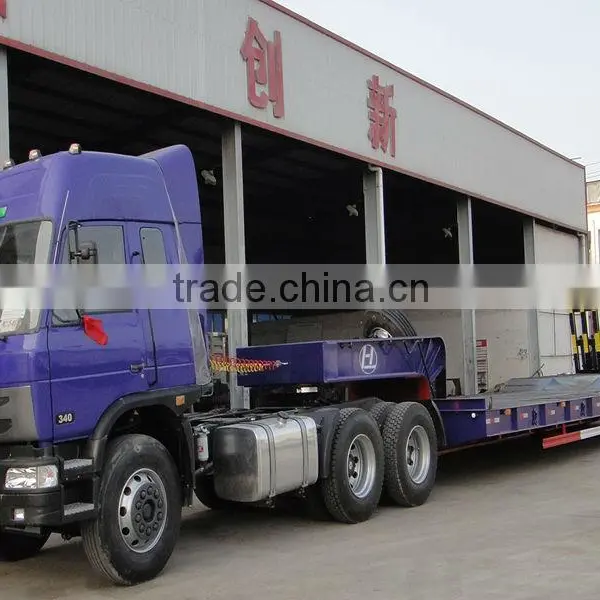

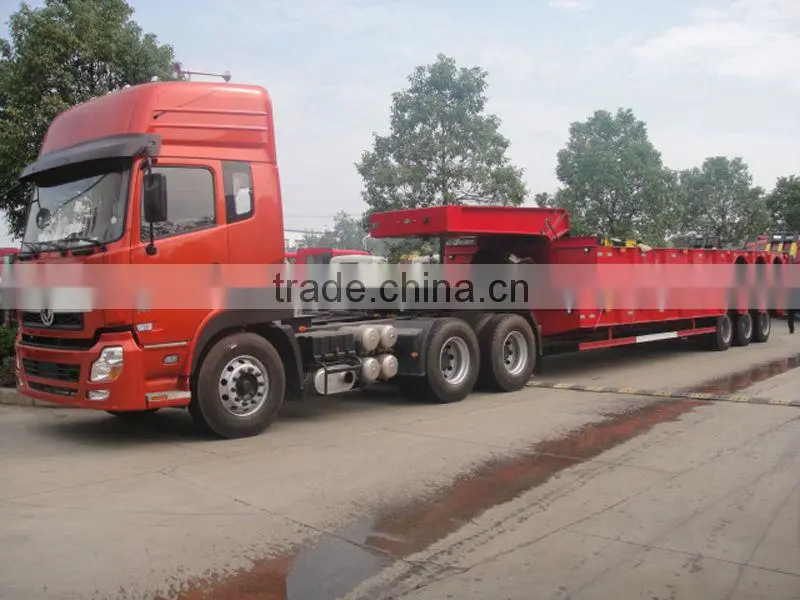

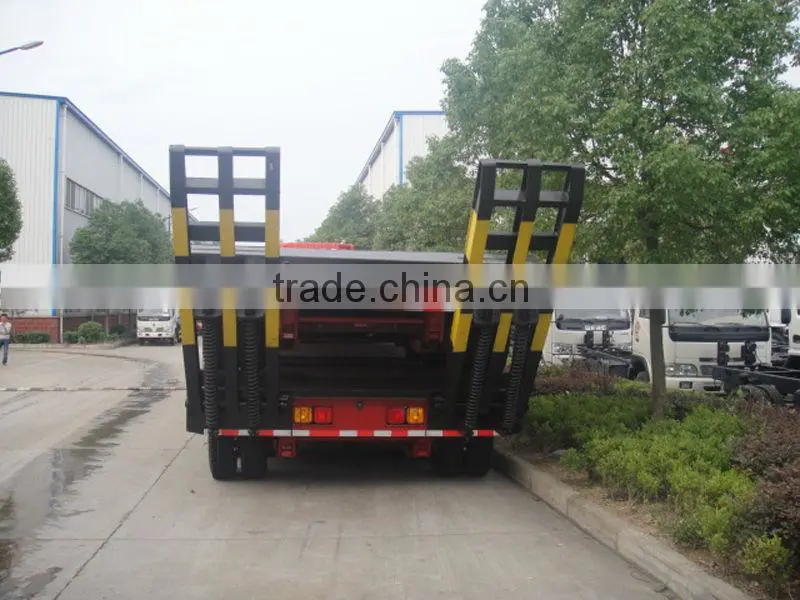

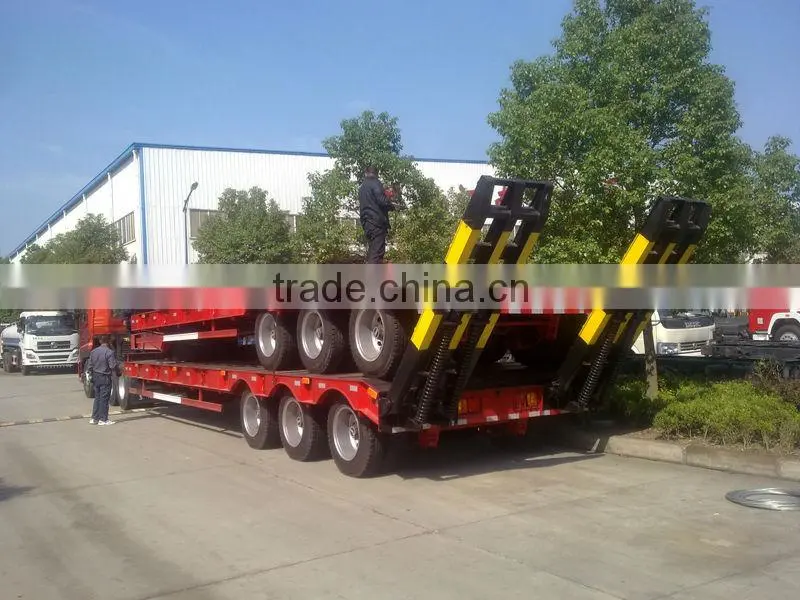

More image of the 3 axles lowboy semi trailer :
