Home > Products > semi-trailer > 3 axles dropside semi trailer

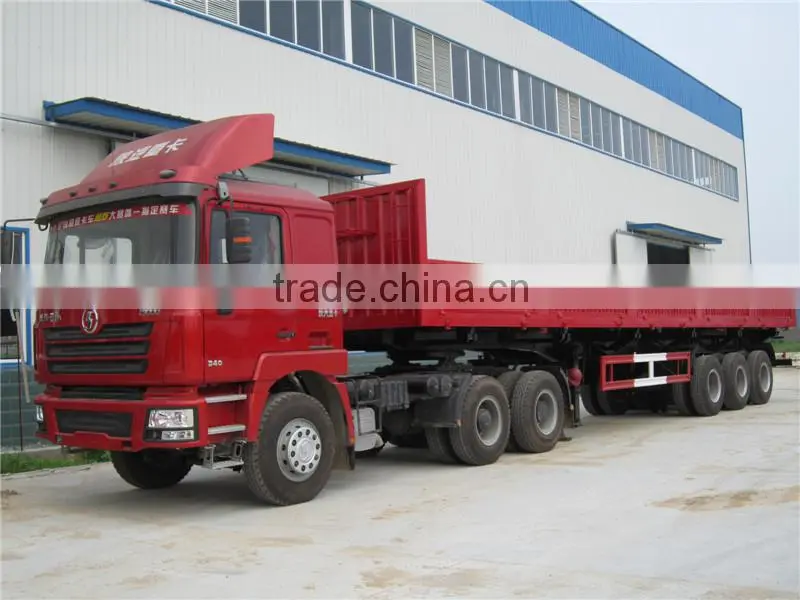

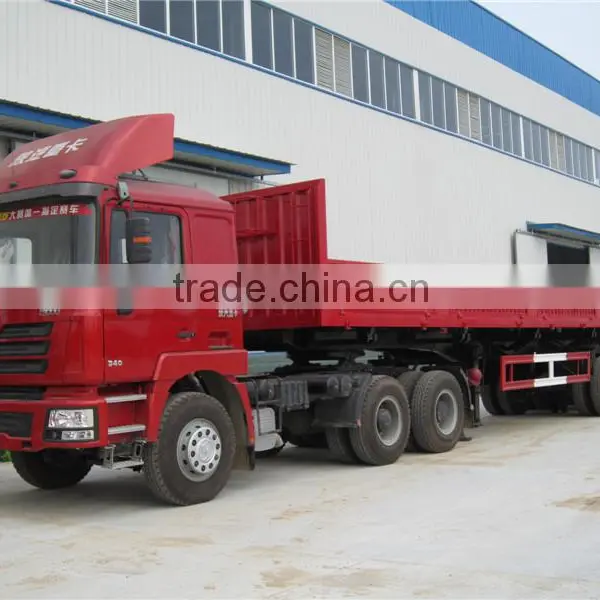

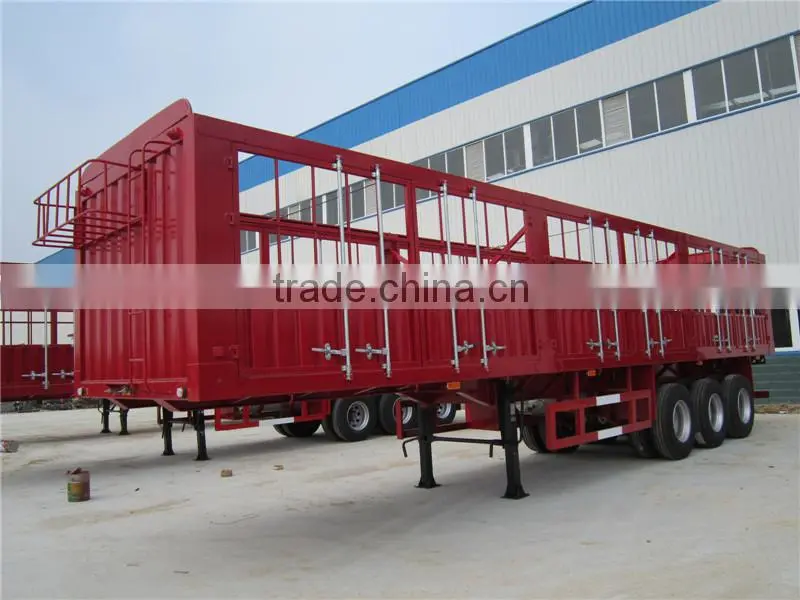

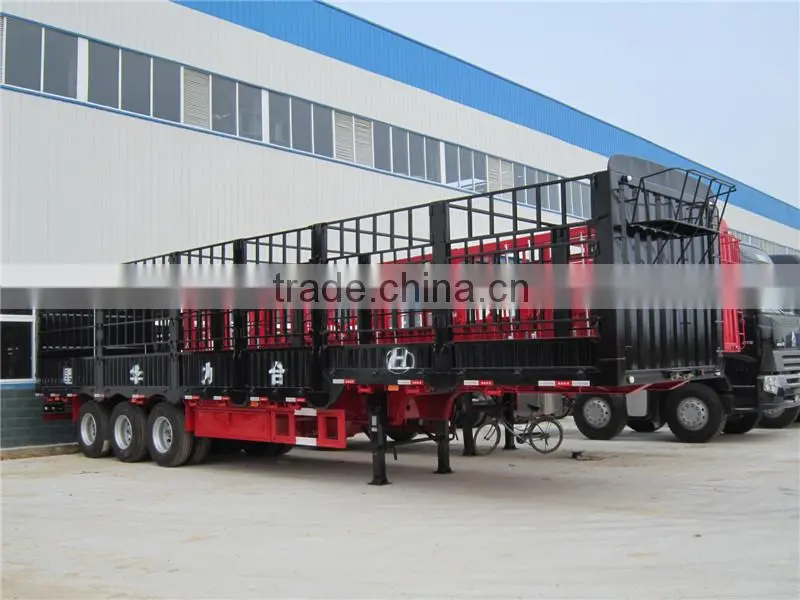

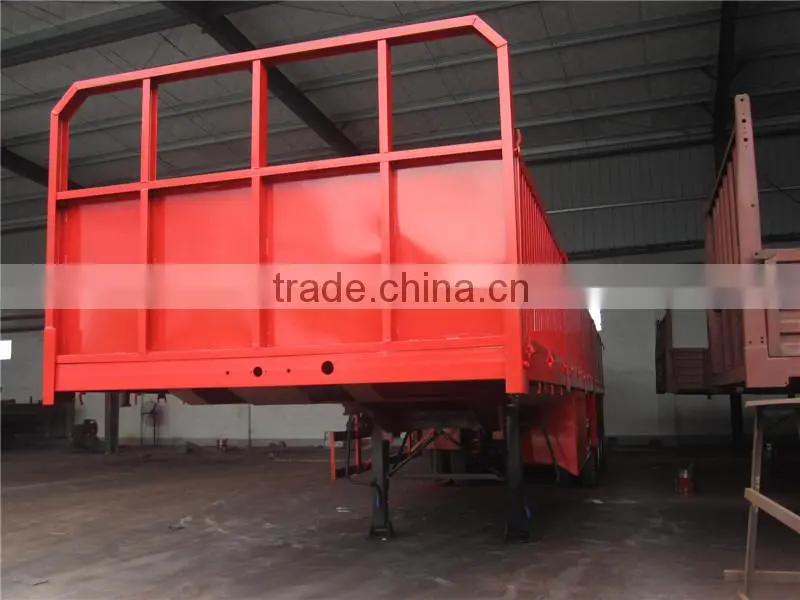

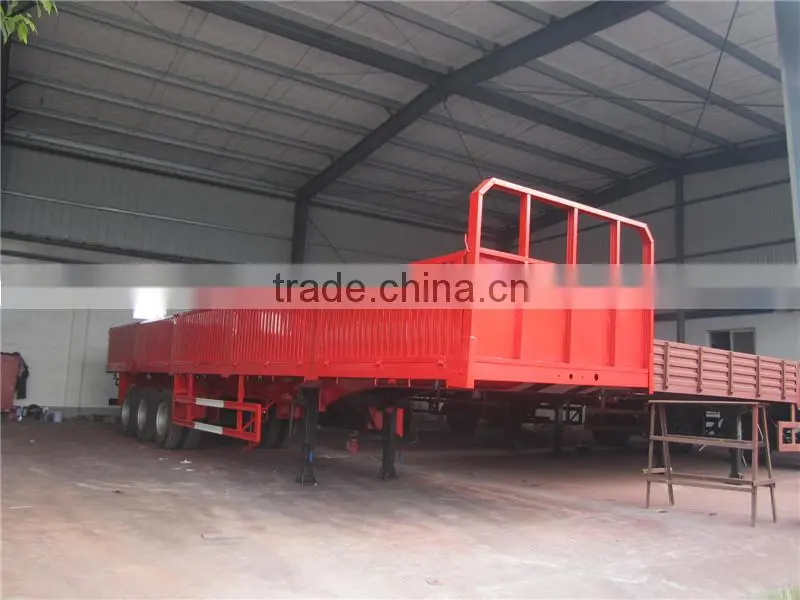

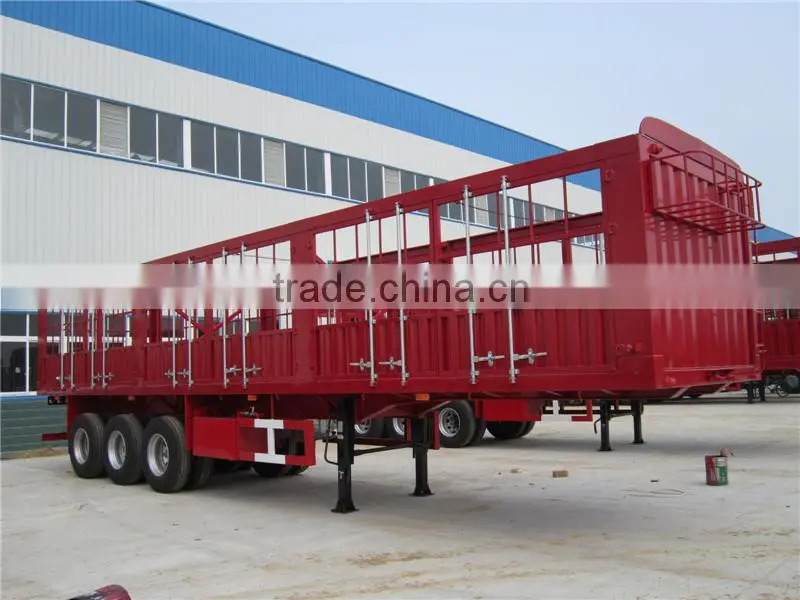

3 axles dropside semi trailer
- 500 Unit / Units per Month
- Shanghai
- T/T
Product Details
Type: | Semi-Trailer | Material: | Steel | Certification: | Other, ISO9001:2008 |
Size: | 12500*2600*3100 | OEM No.: | 9406 | Max Payload: | 60000 |
Place of Origin: | Hubei, China | Brand Name: | Jiangte | Model Number: | JDF9406 |
Product Description
Specifications
3 axles dropside semi trailer3 Axles Cargo Semi Trailer
SPECIFICATION
Type: cargo semi-trailer
Mobel: JDF9406
SRUNNING GEAR & FRAME:
Suspension: Undercount tri-axle suspension with equalizers,
Axle : Fuwa 150×150 square Axle. 13 ton capacity/set.
Wheel: 8.5-20,10 holes Steel Disc,12Pcs+2spare tire
Tire: 12.00R20,18 Ply Rating, 12 Pcs+2spare tire
King Pin : 2″, bolted type; Model: JOST KZ1012.
FRAME:
Material: High strength low alloy steel with 345 MPa yield strength
14/16/6520/260
AIR SYSTEM:
Brake: Dual line pneumatic brake system. WABCO brake valve.
Brake chamber: Type 30/30 spring brake chamber on the 1st axle, type 30 brake chamber on the 2nd and 3rd axles ,made in china.
ELECTRICAL:
Voltage: 24 Volt.
Receptacle: 7 way
Light : Front marker lamp: White
Side marker lamp: Amber
Rear lamp: Red
Turn signal lamp: Amber
LANDING LEG:
Leg: Two speed manual operation type with sand shoe; right handle.
model: TSU 25T
Rated Capacity: Static: 80ton. Lifting: 25ton.
PAINTING & MARKING:
Color: Comply with the customer’s request.
Marking: Comply with Chinese standards.
ELSE:
Side guard: One set (L/R)
Tool box: 1 pcs. (see drawing, right side, 1000mm length)
spare tire carriers: 2 pcs.
The maximum load of this semi-trailer is 50,000kg.
Please provide the tractor specification before order.
All the details are not mentioned above should comply with Chinese standards.
