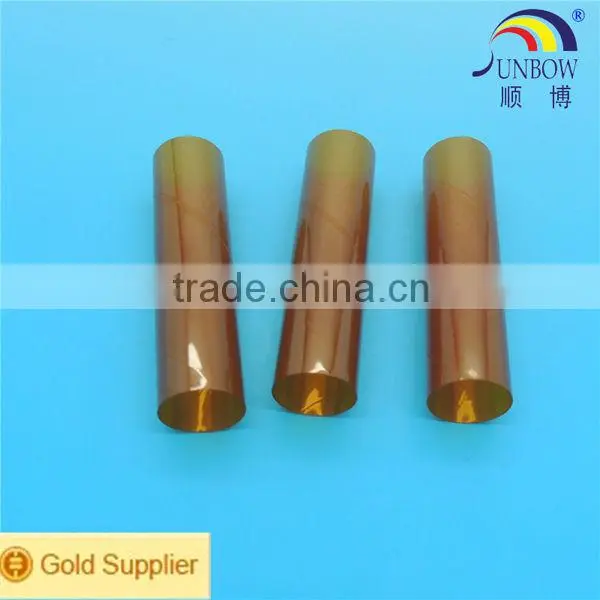

2.0~65mm Inner Diameter/0.05~1mm Wall Thickness/10~1000mm Length PFT Film Tubing/Tubes/Sleeves/Sleeving/Pipes
1. Model
SB-PFT
2. Working Temperature
-60~220C
3. Structure
The polyimide film tubing is spiralled by polyimide film and it is glued by special glue. This kind of glue has chemical and characteristic similarities with the film.
4. Characteristics
Dimension |
Inside diameter2.0-65(mm),Thickness 0.05-1 (mm), Length10-1000(mm) |
|
Color |
light yellow |
|
Melting point |
250℃-265℃ |
|
Service temperature |
-269~260℃ |
|
Density |
1.42+/-0.02 |
|
Tensile strength |
Longitudinal >=130mpa; Horizontal>=110mpa |
|
Water absorption |
75% max after 24 hr immersion |
|
Corrosive on Copper |
Negligible |
|
Solubility in acid, oil, paint, industrial solvents tec. |
Undissolved |
|
Antibacterial, anti corrosive |
Excellent |
|
Tenacity |
Excellent |
|
Cuticle intensity |
≥35% |
|
Resistance pressure |
50HZ 115MV/min Not perforative |
|
Visual |
Smooth, No fleck & Eye winker |
|
Surface resistivity:(200℃) |
≥1.0x1013 |
|
Volume resistivity:(200℃) |
≥3.8x1010 |
|
Dielectric coefficient:(50HZ) |
3.5 |
|
Dielectric loss:(50HZ) |
≤4X10-3 |
|
Flammability |
Slow to self-extinguishing |
Burning resistance |
Resistance characteristics |
Resistance to abrasion, acids, immersion, mildew, industrial solvent, mechanical destroy, Freon and special liquids |
|
Xylene extraction |
<2% |
|
Environment protection |
No hurtful to human and environment |
|
5. Application
It is mainly used in high temperature electric components, motors, temperature controlled switch and heat protectors.
6. More Pictures
7. Our Services
1) 3~5 workdays of delivery
2) 2 years quality guarantee
3) prompt feedback
4) 24hrs on line service
8. About Sunbow
1) 10-year exporting experience
2) 15-year manufacturing experience
3) ISO 9001:2008 quality management system certification
4) product certifications: CUL, REACH, RoHS
5) business partners:
Sanyo, Panasonic & Tiger, SEB, Philips, Black & Decker, Emerson & Conair, HOT, IKEA and Midea
9. How to Contact Us
Trade manager: cn1511744528
Skype: Sarah.sunbow
