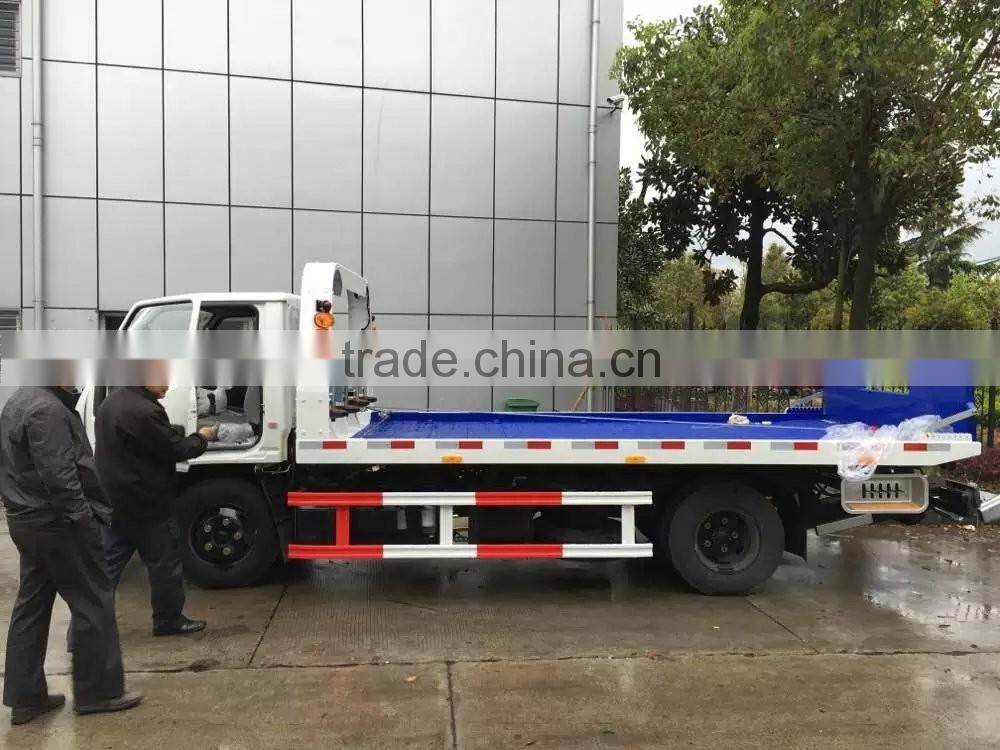

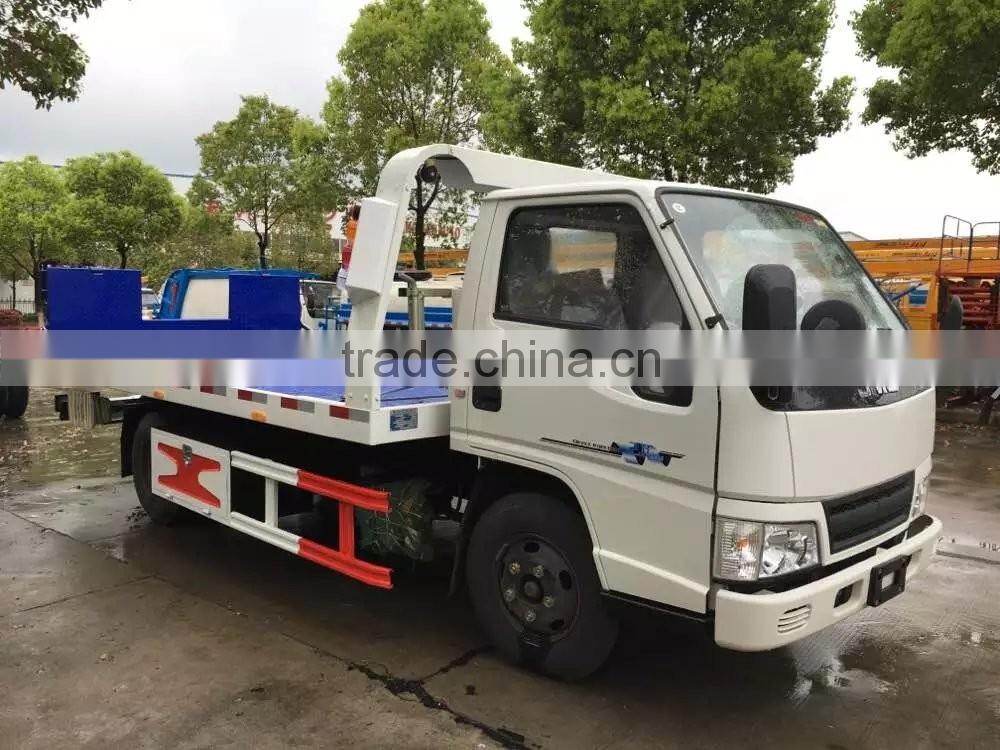

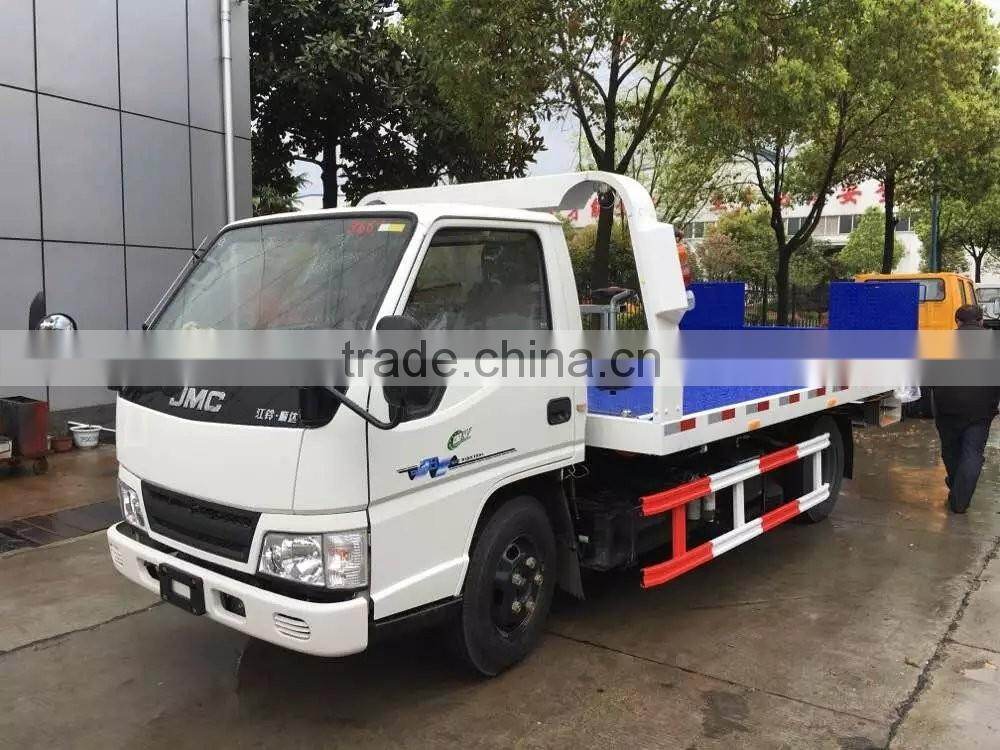

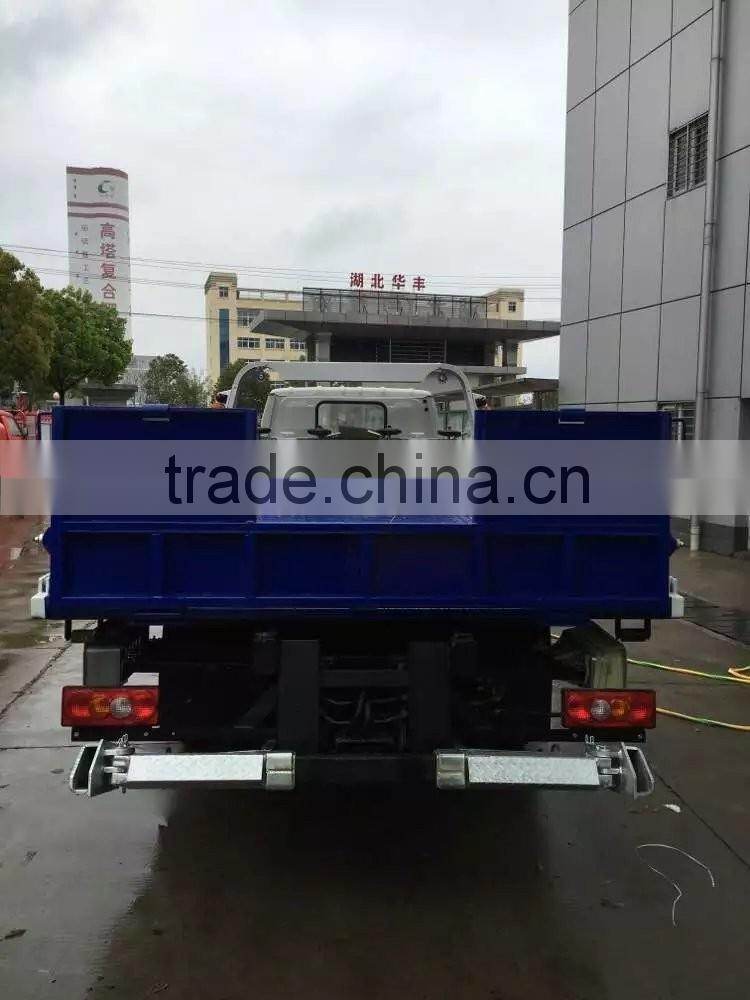

3ton small flatbed wrecker truck JMC
Features of our wrecker towing truck:
1. It is an ideal tow truck to remove the accident vehicle, safe and reliable, no hurt to the vehicle.
2. The truck is equipped with a telescopic, tiltable platform with automatic loading or unloading, raising, traction, as well as transportation.
3. The hydraulic is advancedly designed and the pipes layout is good, easy to maintance.
4. The chief structure parts are made of high strength steel by bending and welding, and treated through pickling and phosphating to gurantee the safe and reliable.
Our service
1. Answer your question within 24 hour.
2. one year of warranty since bill of lading on board date
3. provide english operation manual, english maintance manual
4. free trainning in our factory if customer need.
Entire vehicle | Type | JDF5080TQJX | |
Dimensions parameter | Length(mm) | 7380 | |
Wide(mm) | 2300 | ||
High(mm) | 2550 | ||
Wheelbase(mm) | 3800 | ||
Mass parameter | Max mass(kg) | 8495 | |
Total mass(kg) | 5480 | ||
Chassis | Type | BJ1089VEJEA-FB | |
Engine | Type | ISFs4154 | |
Power(kW) | 115 | ||
Size of tire | 8.25-16 | ||
Specialized device | Flat organization | Length x width (mm) | 5330x2300 |
Flat stroke (mm) | 2680 | ||
Flat minimum inclination angle (°) | 8 | ||
Flat maximum bearing quality (kg) | 3000 | ||
Rated traction winch (kg) | 4000 | ||
The length of wire rope (m) | 21 | ||
Lifting mechanism | Effective length (mm) | 1300 | |
Rated lifting quality (kg) | 2270 | ||
Full extend maximum lift quality (kg) | 1500 | ||
Rated supporting lead quality (kg) | 7000 | ||
Our factory main products:
fire truck, road wrecker, aerial working truck, garbage truck, truck mounted crane, refrigerated truck, fuel tanker truck, oil tanker truck, vacuum sewage suction truck, fecal sucking truck, road sweeper, van truck, cargo truck, semi-trailer, tractor, dump truck, concrete mixer truck .............
For more information please contact
Jessica Song
Cell: 0086-18771385883 or 0086-15071634966
Tel: 0086 722 3330261
Skype: jessicasong0525
Website: www.hbjntruck.en.china.cn
