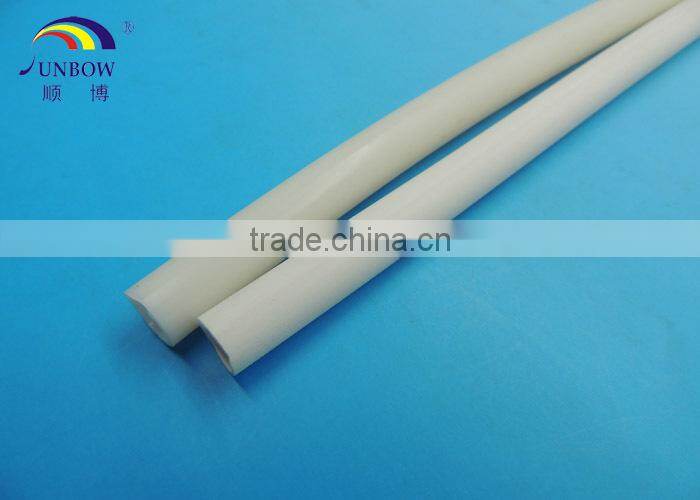

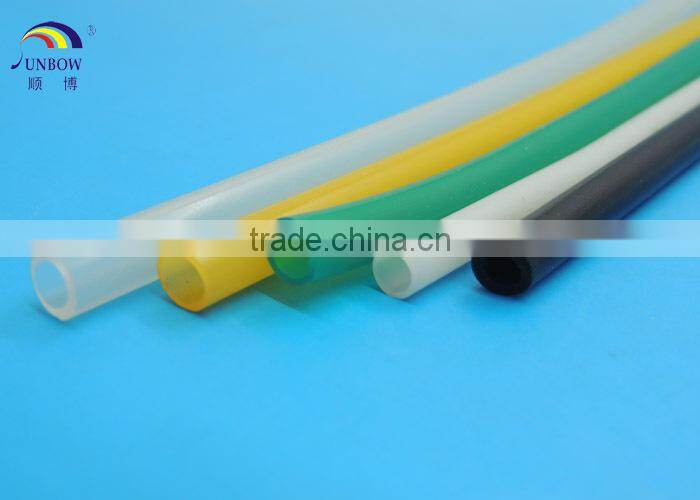

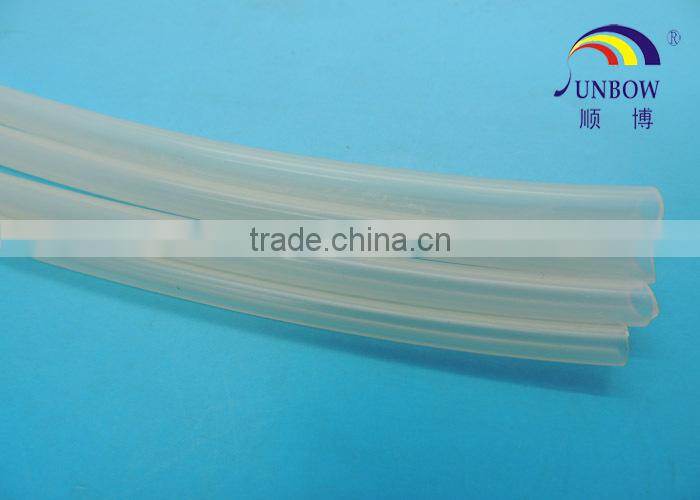

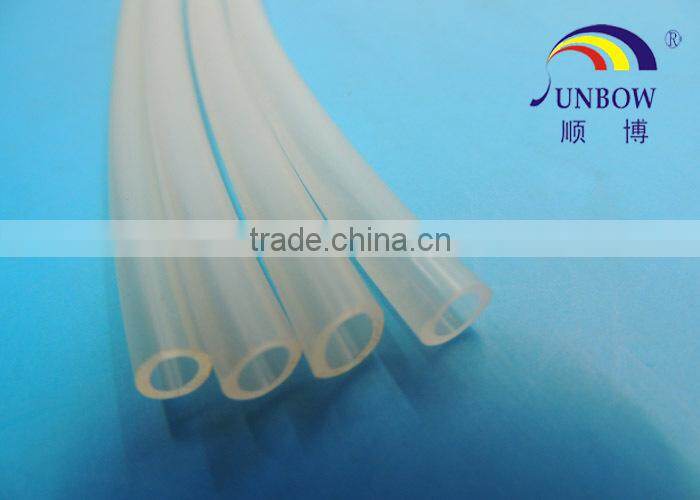

FDA Compliance Extruded Heat Resistant Soft Clear Silicone Tubing
PRODUCT DESCRIPTION AND APPLICATION
FDA Compliance Extruded Heat Resistant Soft Clear Silicone Tubing is extruded by high quality silicone rubber. It is commonly used in contact with foods in accordance with provisions of FDA 21 CFR 177.2600 and in electric insulation. It can be installed in coffee maker, electricwater bottle, or used in electric insulation etc.
SPECIFICATION
Performance |
Test Method |
Performance Index |
Dielectric Strength (KV/mm) |
GB/T 1048 |
≥18 |
Volume Resistivity (Ω/cm) |
GB/T 1410 |
≥1x1014 |
Tear Resistance (MPa) |
GB/T 1040 |
≥3.5 MPa |
Elongation (%) |
GB/T 1040 |
≥210 |
Fire Resistance(Flame Retarded Products) |
GB/T 2408 |
FV-1 |
WORKING TEMPERATURE
-60°c ~ 200°c
DIMENSION
Inside Diameter (mm) |
Tolerance(mm) |
Thickness and Tolerance |
|||
2500V(mm) |
4000V(mm) |
6000V(mm) |
7000V(mm) |
||
φ0.8 |
0.8±0.10 |
0.50±0.10 |
1.00±0.15 |
1.50±0.20 |
2.00±0.25 |
φ1.0 |
1.0±0.10 |
0.50±0.10 |
1.00±0.15 |
1.50±0.20 |
2.00±0.25 |
φ1.5 |
1.5±0.10 |
0.50±0.10 |
1.00±0.15 |
1.50±0.20 |
2.00±0.25 |
φ2.0 |
2.0±0.10 |
0.50±0.10 |
1.00±0.15 |
1.50±0.20 |
2.00±0.25 |
φ2.5 |
2.5±0.10 |
0.50±0.10 |
1.00±0.15 |
1.50±0.20 |
2.00±0.25 |
φ3.0 |
3.0±0.10 |
0.50±0.10 |
1.00±0.15 |
1.50±0.20 |
2.00±0.25 |
φ3.5 |
3.5±0.10 |
0.50±0.10 |
1.00±0.15 |
1.50±0.20 |
2.00±0.25 |
φ4.0 |
4.0±0.10 |
0.50±0.10 |
1.00±0.15 |
1.50±0.20 |
2.00±0.25 |
φ4.5 |
4.5±0.10 |
0.50±0.10 |
1.00±0.15 |
1.50±0.20 |
2.00±0.25 |
φ5.0 |
5.0±0.20 |
0.50±0.10 |
1.00±0.15 |
1.50±0.20 |
2.00±0.25 |
φ5.5 |
5.5±0.20 |
0.50±0.10 |
1.00±0.15 |
1.50±0.20 |
2.00±0.25 |
φ6.0 |
6.0±0.20 |
0.50±0.10 |
1.00±0.15 |
1.50±0.20 |
2.00±0.25 |
φ6.5 |
6.5±0.20 |
0.50±0.10 |
1.00±0.15 |
1.50±0.20 |
2.00±0.25 |
φ7.0 |
7.0±0.20 |
— |
1.00±0.15 |
1.50±0.20 |
2.00±0.25 |
φ7.5 |
7.5±0.20 |
— |
1.00±0.15 |
1.50±0.20 |
2.00±0.25 |
φ8.0 |
8.0±0.25 |
— |
1.00±0.15 |
1.50±0.20 |
2.00±0.25 |
φ9.0 |
9.0±0.25 |
— |
1.00±0.15 |
1.50±0.20 |
2.00±0.25 |
φ10.0 |
10.0±0.25 |
— |
1.00±0.15 |
1.50±0.20 |
2.00±0.25 |
φ11.0 |
11.0±0.30 |
— |
1.00±0.15 |
1.50±0.20 |
2.00±0.25 |
φ12.0 |
12.0±0.30 |
— |
1.00±0.15 |
1.50±0.20 |
2.00±0.25 |
φ13.0 |
13.0±0.30 |
— |
1.00±0.15 |
1.50±0.20 |
2.00±0.25 |
φ14.0 |
14.0±0.30 |
— |
— |
1.50±0.20 |
2.00±0.25 |
φ15.0 |
15.0±0.30 |
— |
— |
1.50±0.20 |
2.00±0.25 |
φ20.0 |
20.0±0.30 |
— |
— |
— |
2.50±0.3 |
FREQUENTLY ASKED QUESTIONS
Q1. You are a factory or trading company?
We are a factory and we can provide best price and high quality products for you.
Q2. Can you accept sample orders?
Yes, we can accept sample orders and we can also provide free samples for your test if necessary.
Q3. What is your MOQ?
Normally, 1000m per size.
Q4. What are your payment terms?
T/T 100% or West Union
Q5. How can I get my order? How can I know you sent the goods?
We will send the goods by UPS, DHL, FedEx or sea shipment. After we sent the goods , we will give you the tracking number or other relative files for your check.
Q6. How about your quality?
Try a small order, and then you can judge.
Q7. Have you passed any certificates?
Yes. We are an ISO9001:2008 quality management system certificated manufacturer. Our products have passed UL, ROHS, REACH certifications. If necessary, we can send you relative files.
Q8. Are there any advantages to choose your products?
1) ISO 9001 : 2008 TS 16949 standard factory manufacturer
2) high-tech enterprise in China
3) with 12-year manufacturing experience
4) factory direct sales
5) best price high quality product
6) quick delivery time
7) quick response for feedback
8) few complaints from customers
9) more competitive price for VIP customers
10) convenient situation near to seaport
