9-26 HIGH PRESSURE MATERIAL TRANSPORTATION CENTRIFUGAL FAN, Centrifugal Fan
US$ 300 - 1,000
MOQ: 5 Units
Key Specifications
Get Latest Price
Electric Current Type:
AC
Blade Material:
Cast Iron
Mounting:
Duct Fan
Payment & Shipping
Payment Methods:
Port of Shipment:
Foshan
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot Sale HBJS Aluminum Alloy Centrifugal FanNegotiableMOQ: 10 Units -
Industrial Y5-48 Series Boiler Centrifugal Fan, Ventilation for Industrial Boiler, Induction Air BlowerUS$ 420 - 3,200MOQ: 5 Units
-
High Quality Double-stage High Pressure BlowerUS$ 240 - 1,100MOQ: 5 Units
-
Hot Sale 9-26 SERIES HIGH PRESSURE INDUSTRIAL BLOWERNegotiableMOQ: 5 Units
-
High Quality Ring Blower, High Pressure Industrial FanUS$ 71 - 670MOQ: 10 Units
Electric Current Type
AC
Blade Material
Cast Iron
Mounting
Duct Fan
Place of Origin
Guangdong, China
Brand Name
POPULA
Model Number
9-19-6.3A / 9-29 / 9-12/ 9-14
Power
45kw
Voltage
380/460V
Air Volume
12699~13525m3/h
Speed
2970RPM
Certification
CCC
After-sales Service Provided
Overseas third-party support available
Specifications

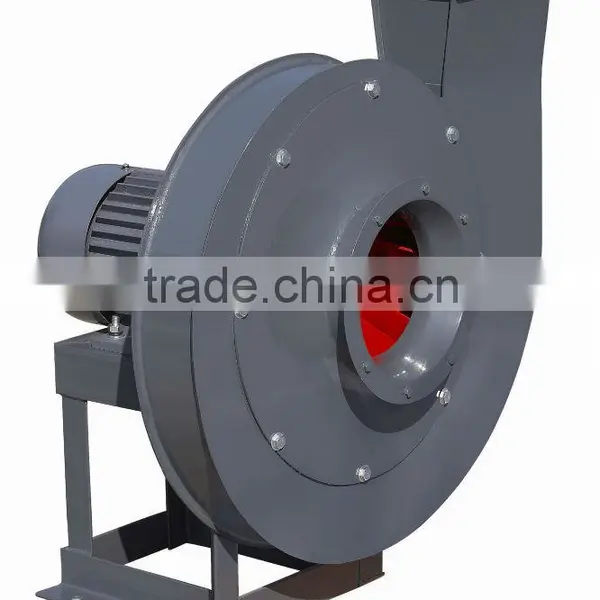

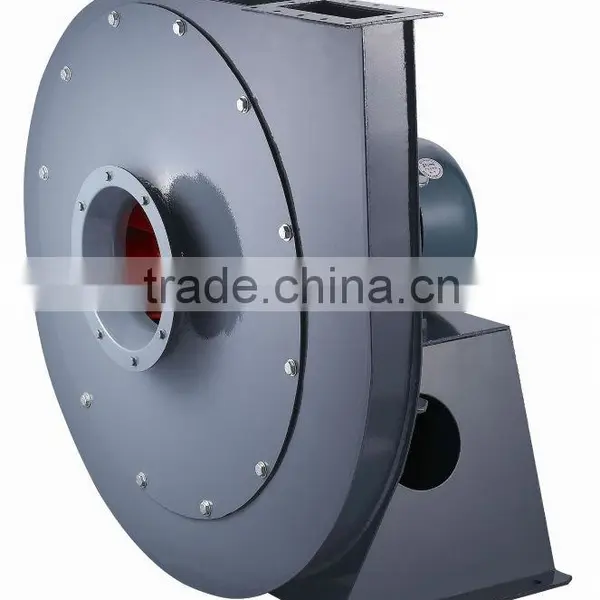

9-26 HIGH PRESSURE CENTRIFUGAL FAN
1.centrifugal fan with low noise and large air flow.

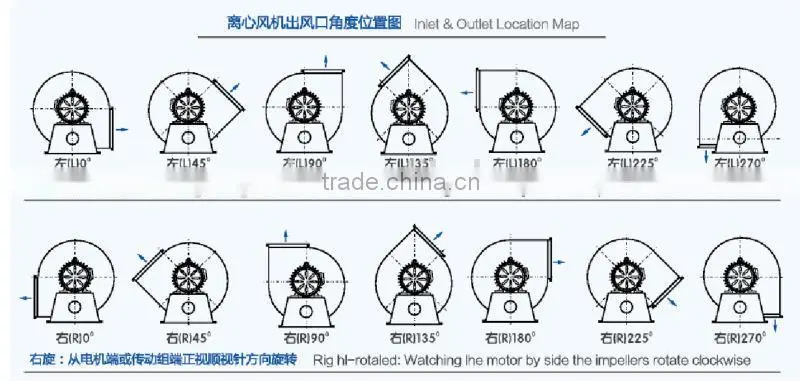

2.the angulation of outlet can adjust
This series are used for coercive ventilation in industrial such as ancient furnace,glas,electroplanting,ceramics,ect. and are widely used for material transportation in processing industrial like food,feed and slag.
The transportation in processing medium is air or other non-spontaneous-combustion and non-explosive-comubstion air with no harm to human.
The air transferred shall not contain any adhesive material,dust and grain and the concertration shall not exceed 150mg/m3 with the temperature no higher than 80 centigrade degree.
| MODEL | POWER(kW) | ROTATION(r/min) | VOLUME(m3/h) | PRESSURE(Pa) |
| 3.5A | 3 | 2900 | 1473~2154 | 2950~2608 |
| 4A | 5.5 | 2900 | 2198~3215 | 3852~3407 |
| 7.5 | 2900 | 3000~5000 | 2835~1060 | |
| 4.5A | 7.5 | 2900 | 3130~3685 | 4910~4776 |
| 11 | 2930 | 3963~4792 | 4661~4256 | |
| 5A | 15 | 2930 | 4293~6349 | 6035~5381 |
| 18.5 | 2930 | 6762 | 5180 | |
| 5.6A | 22 | 2930 | 6032~7185 | 7610~7400 |
| 30 | 2950 | 7766~9500 | 7218~6527 | |
| 6.3A | 45 | 2970 | 8588~11883 | 9698~8915 |
| 55 | 2970 | 12699~13525 | 8636~8310 | |
| 7.1D | 75 | 2970 | 12292~14643 | 12427~12078 |
| 110 | 2980 | 15826~19360 | 11776~10635 | |
| 8D | 132 | 2980 | 17584~20947 | 15955~15504 |
| 200 | 2980 | 22640~27696 | 15112~13634 | |
| 30 | 1470 | 13001~13848 | 3421~3294 | |
| 18.5 | 1450 | 8792~12166 | 3834~3529 | |
| 9D | 45 | 1480 | 16118~19717 | 4620~4181 |
| 30 | 1470 | 12518~14913 | 4869~4736 | |
| 10D | 75 | 1480 | 23612~30052 | 5761~5065 |
| 55 | 1480 | 17172~21465 | 6143~5920 | |
| 11.2D | 132 | 1490 | 39205~42221 | 6691~6382 |
| 110 | 1480 | 24126~36189 | 7747~7009 | |
| 37 | 980 | 23959~27953 | 3031~2763 | |
| 30 | 980 | 15973~21963 | 3346~3140 | |
| 12.5D | 250 | 1490 | 46117~58695 | 9103~7993 |
| 160 | 1490 | 33540~41925 | 9713~9356 | |
| 75 | 990 | 33309~38860 | 3785~3450 | |
| 45 | 980 | 22206~30533 | 4179~3921 | |
| 14D | 75 | 990 | 31197~35097 | 5262~5188 |
| 250 | 1490 | 47121~53011 | 12285~12109 | |
| 16D | 500 | 1490 | 70339~79131 | 16250~16014 |
| 220 | 990 | 75675~81496 | 5971~5696 |
....
