GB/T Fire Retardant Silicone Thermal Resistant Rubber Hose
1. Model
SB-SRT
2. Working Temperature
-60~200C
3. Structure
The GB/T fire retardant silicone thermal resistant rubber hose is made of extruded silicone rubber materials. It complies with FDA standard and it can work normally in 250 degree high temperature condition. It is widely used in home use electrical industry like coffee makers and electric kettles.
4. Characteristics
1) working temperature: -60~200C
2) soft, high temperature and high voltage resistance
5. Specification
Performance |
Test method |
Performance index |
Dielectric strength(kv/mm) |
GB/T 1048 |
≥18 |
Volume resistivity(Ω/cm) |
GB/T 1410 |
≥1x1014 |
Tearing strength(MPa) |
GB/T 1040 |
≥3.5 MPa |
Elongation(%) |
GB/T 1040 |
≥210 |
Fire resistance(flame retarded products) |
GB/T 2408 |
FV-1 |
6. Dimension
SIZE |
Tolerance(mm) |
Thickness and tolerance |
|||
2500V(mm) |
4000V(mm) |
6000V(mm) |
7000V(mm) |
||
φ0.8 |
0.8±0.10 |
0.50±0.10 |
1.00±0.15 |
1.50±0.20 |
2.00±0.25 |
φ1.0 |
1.0±0.10 |
0.50±0.10 |
1.00±0.15 |
1.50±0.20 |
2.00±0.25 |
φ1.5 |
1.5±0.10 |
0.50±0.10 |
1.00±0.15 |
1.50±0.20 |
2.00±0.25 |
φ2.0 |
2.0±0.10 |
0.50±0.10 |
1.00±0.15 |
1.50±0.20 |
2.00±0.25 |
φ2.5 |
2.5±0.10 |
0.50±0.10 |
1.00±0.15 |
1.50±0.20 |
2.00±0.25 |
φ3.0 |
3.0±0.10 |
0.50±0.10 |
1.00±0.15 |
1.50±0.20 |
2.00±0.25 |
φ3.5 |
3.5±0.10 |
0.50±0.10 |
1.00±0.15 |
1.50±0.20 |
2.00±0.25 |
φ4.0 |
4.0±0.10 |
0.50±0.10 |
1.00±0.15 |
1.50±0.20 |
2.00±0.25 |
φ4.5 |
4.5±0.10 |
0.50±0.10 |
1.00±0.15 |
1.50±0.20 |
2.00±0.25 |
φ5.0 |
5.0±0.20 |
0.50±0.10 |
1.00±0.15 |
1.50±0.20 |
2.00±0.25 |
φ5.5 |
5.5±0.20 |
0.50±0.10 |
1.00±0.15 |
1.50±0.20 |
2.00±0.25 |
φ6.0 |
6.0±0.20 |
0.50±0.10 |
1.00±0.15 |
1.50±0.20 |
2.00±0.25 |
φ6.5 |
6.5±0.20 |
0.50±0.10 |
1.00±0.15 |
1.50±0.20 |
2.00±0.25 |
φ7.0 |
7.0±0.20 |
— |
1.00±0.15 |
1.50±0.20 |
2.00±0.25 |
φ7.5 |
7.5±0.20 |
— |
1.00±0.15 |
1.50±0.20 |
2.00±0.25 |
φ8.0 |
8.0±0.25 |
— |
1.00±0.15 |
1.50±0.20 |
2.00±0.25 |
φ9.0 |
9.0±0.25 |
— |
1.00±0.15 |
1.50±0.20 |
2.00±0.25 |
φ10.0 |
10.0±0.25 |
— |
1.00±0.15 |
1.50±0.20 |
2.00±0.25 |
φ11.0 |
11.0±0.30 |
— |
1.00±0.15 |
1.50±0.20 |
2.00±0.25 |
φ12.0 |
12.0±0.30 |
— |
1.00±0.15 |
1.50±0.20 |
2.00±0.25 |
φ13.0 |
13.0±0.30 |
— |
1.00±0.15 |
1.50±0.20 |
2.00±0.25 |
φ14.0 |
14.0±0.30 |
— |
— |
1.50±0.20 |
2.00±0.25 |
φ15.0 |
15.0±0.30 |
— |
— |
1.50±0.20 |
2.00±0.25 |
φ20.0 |
20.0±0.30 |
— |
— |
— |
2.50±0.3 |
7. Application
It accords with FDA standard and it is widely used in home use electrical appliances like coffee makers and electrical kettles.

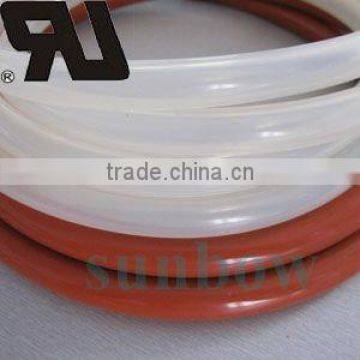

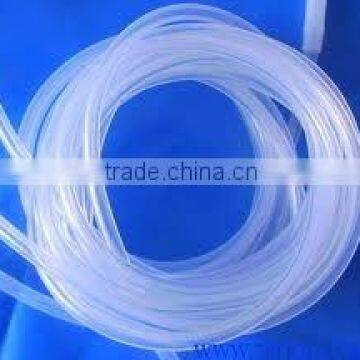

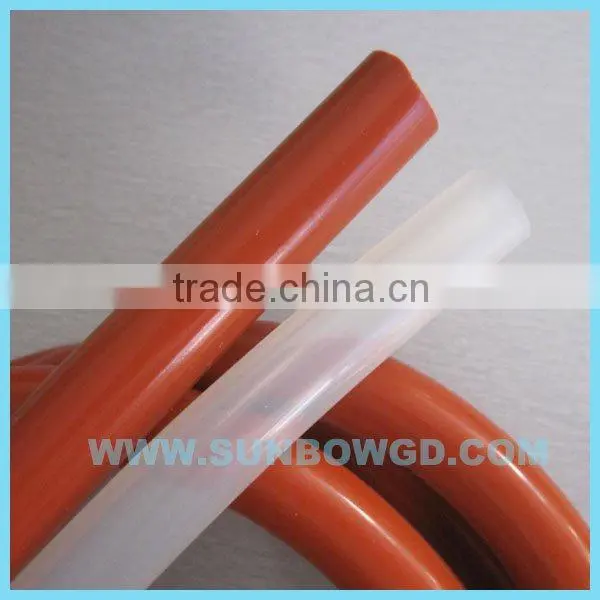

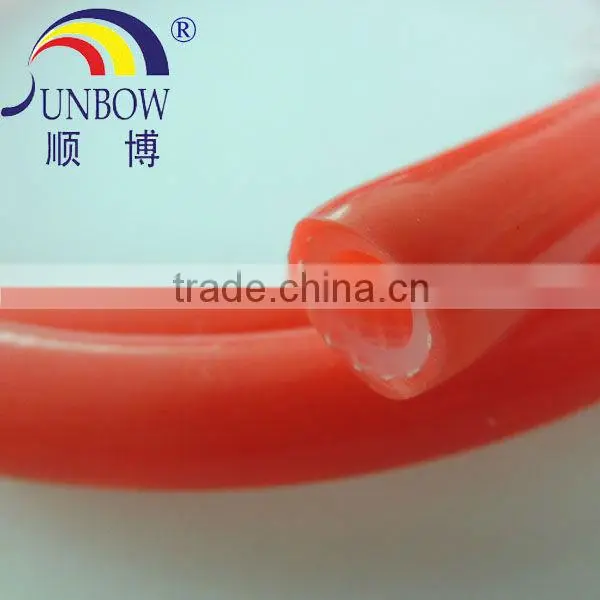

8. More Pictures
9. Our Services
1) 3~5 workdays of delivery
2) 2 years quality guarantee
3) prompt feedback
4) 24hrs on line service
10. About Sunbow
Shenzhen SUNBOW Insulation Materials MFG. Co., Ltd is one of the leading insulation sleeving manufacturers in China. It was established in 2003. In 2008, due to the business expansion, it is relocated in Heshuikou SUNBOW industrial park. In 2009, we succeeded in getting ISO9001:2008 quality management system certification. We specialize in fiberglass sleevings, PE heat shrink tubes, PVC heat shrink tubes, PTFE heat shrink tubes and silicone rubber tubes. Our products have passed UL, CSA, RoHS, REACH certifications. Our business partners can be found all over the world. Some famous partners are:
SEB, Philips, Zoppas, Toshiba, Sanyo, SAMSUNG, Midea, HOT, IKEA, Breville, Panasonic, Tescon, Tiger, Emerson, Conair....
11. Some Certifications We've Got
12. How To Contact Us
Trade manager: cn1511744528
Skype: Sarah.sunbow
Website: www. sunbowgd. com
Tel: +86-755-2716 0885-808(Ext)
Fax: +86-755-2716 0895
13. Other Services
Free samples can be provided for your trial.
