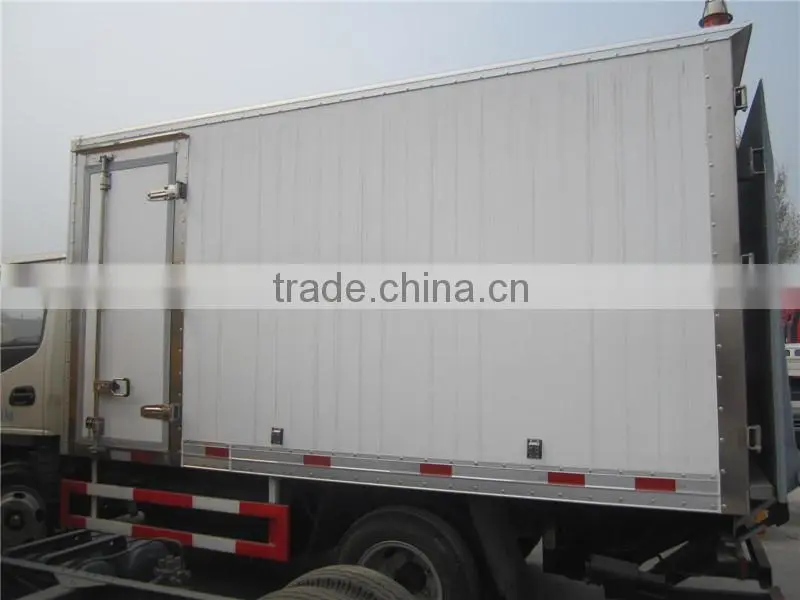

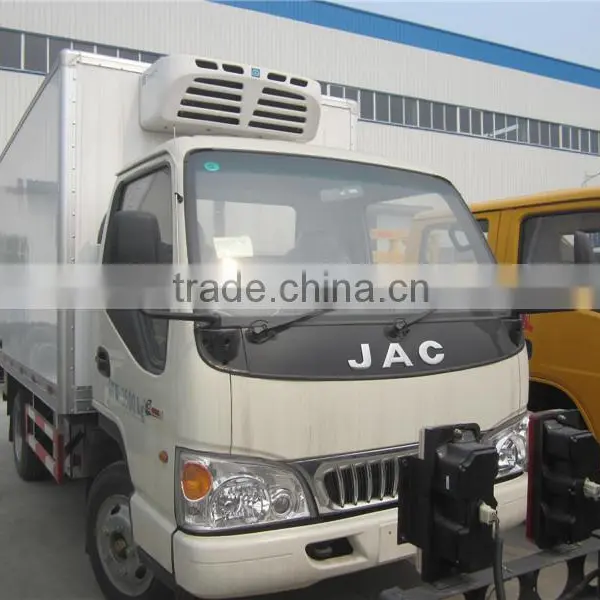

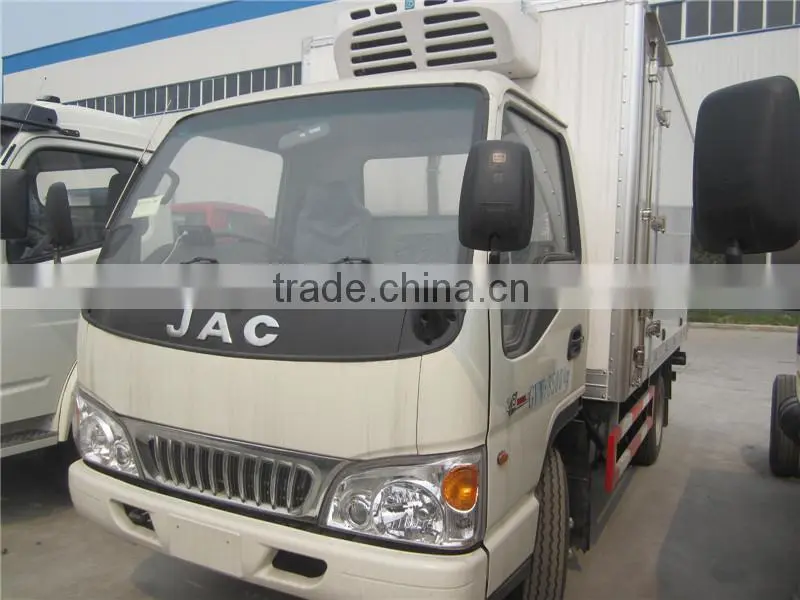

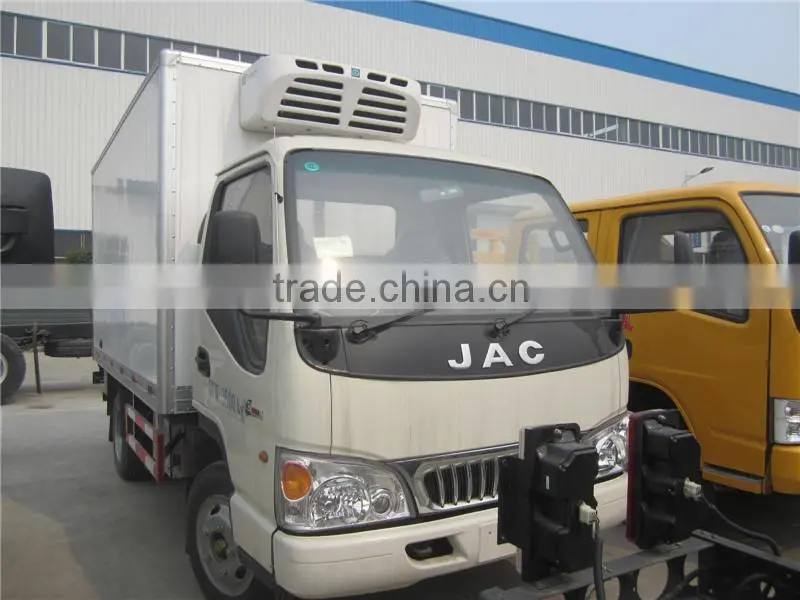

5ton JAC refrigerated truck
Why choose this JAC refrigerated truck:
1. The chassis is JAC make, JAC is one of the largest vehicle manufactuer in China.
2. We adopt fiberglass as our refrigeated van material, which is world advanced refrigerated van material.
3. Body length is 4.2m, lowest temperature could make -18°c. the temperature could be setted by customer according to different foods.
4. We adopt USA Carrier, Thermo king, Korea Dongin, Chinese Songhan, Kaixue as our main refrigeration unit brands.
5. Door frames, hinges are stainless steel, could option side door, hookers.
Our service
1. Reply your question within 24hour.
2. one year of warranty since bill of lading on board date
3. provide english operation manual, english maintance manual
4. Free trainning in our factory if customer need.
Vehicle name |
5ton JAC refrigerated truck |
|
Manufacturer |
Hubei Jiangnan Special Automobile Co., Ltd |
|
Model |
JDF5045XLCK103 |
|
Condition |
Brand new |
|
Cabin |
Single row, 2 seats |
|
Drive type |
4x2 |
|
Wheel base |
3308 mm |
|
Overall dimension (L*W*H) |
5995×1910×2900 mm |
|
GVW |
4325 kg |
|
Curb weight |
2700 kg |
|
Rated payload weight |
1495 kg |
|
Engine |
Engine model |
CY4102-C3D |
Rated power / Displacement |
80 kw (109 hp) / 3856 ml |
|
Engine make |
DongFeng Chaoyang Diesel Engine Co., Ltd |
|
Emission standard |
Euro 2 |
|
Tire type |
6.50-16, 7.00-16, 6 pcs |
|
Freezer box dimension (L*W*H) |
4200×1750×1800 (mm) |
|
Temperature |
-18 ~ +8º |
|
Refrigerator body temperature range: +8°~-18°, the temperature could be adjustable in the cabin.

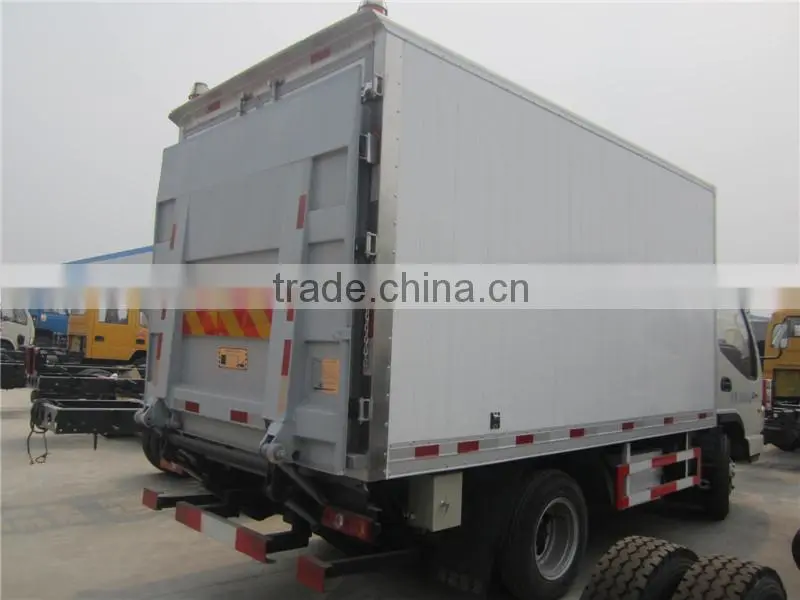

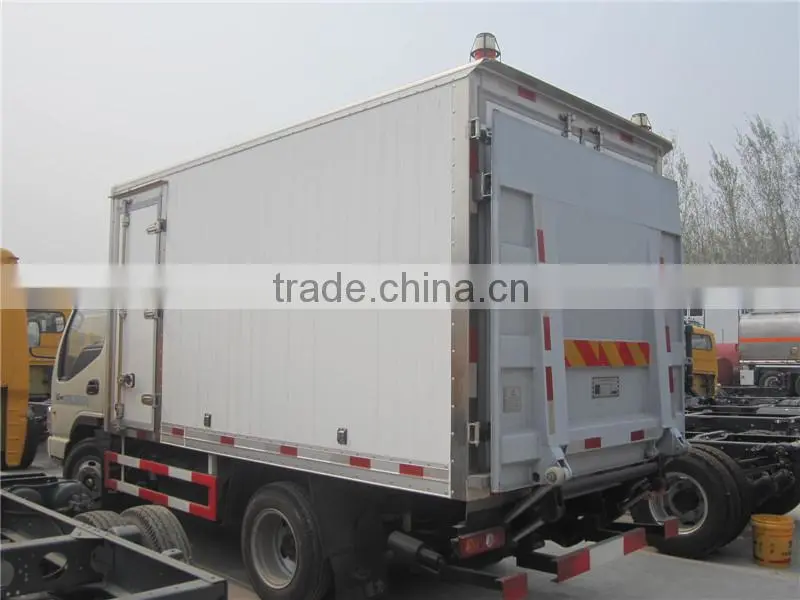

have side door & hydraulic tail lift platform
Hydraulic tail lift platform capacity curve:
Our main product:
fire truck, aerial working truck, truck mounted crane, garbage truck, sewage suction tanker truck, fecal sucking truck, fuel tanker truck, water tanker truck, refrigerated truck, van truck, cargo truck, road sweeper, semi-trailer, tractor, dump truck, road wrecker, concrete mixer truck, bulk cement tanker truck
