Silicon Rubber Watches in Test Tube For Household Appliances

Silicon Rubber Watches in Test Tube For Household Appliances thumbnail-1
Silicon Rubber Watches in Test Tube For Household Appliances photo-1
US$ 0.02 - 25.9 MOQ: 500 Meters
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SUNBOW
Model Number:
SB-SRT
Contact Supplier Request Quote Chat Now
Shenzhen Sunbow Insulation Materials Mfg. Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name SUNBOW
Model Number SB-SRT

Silicon Rubber Watches in Test Tube For Household Appliances







SILICONE RUBBER TUBING



Working Temperature:-60°C-200°C



Structure

It is extruded by silicone rubber.



Usage

Silicone Rubber Tubing with service temperature -30°C to 250°C. They are commonly used in contact with foods in accordance with provisions of FDA 21 CFR 177.2600 and in electric insulation. It can be installed in Coffee maker, electric water bottle, or used in electric insulation etc.



Specification

Performance

Test method

Performance index

Dielectric strength(kv/mm)

GB/T 1048

≥18

Volume resistivity(Ω/cm)

GB/T 1410

≥1x1014

Tearing strength(MPa)

GB/T 1040

≥3.5 MPa

Elongation(%)

GB/T 1040

≥210

Fire resistance(flame retarded products)

GB/T 2408

FV-1



Dimension

SIZE

Tolerance(mm)

Thickness and tolerance

2500V(mm)

4000V(mm)

6000V(mm)

7000V(mm)

φ0.8

0.8±0.10

0.50±0.10

1.00±0.15

1.50±0.20

2.00±0.25

φ1.0

1.0±0.10

0.50±0.10

1.00±0.15

1.50±0.20

2.00±0.25

φ1.5

1.5±0.10

0.50±0.10

1.00±0.15

1.50±0.20

2.00±0.25

φ2.0

2.0±0.10

0.50±0.10

1.00±0.15

1.50±0.20

2.00±0.25

φ2.5

2.5±0.10

0.50±0.10

1.00±0.15

1.50±0.20

2.00±0.25

φ3.0

3.0±0.10

0.50±0.10

1.00±0.15

1.50±0.20

2.00±0.25

φ3.5

3.5±0.10

0.50±0.10

1.00±0.15

1.50±0.20

2.00±0.25

φ4.0

4.0±0.10

0.50±0.10

1.00±0.15

1.50±0.20

2.00±0.25

φ4.5

4.5±0.10

0.50±0.10

1.00±0.15

1.50±0.20

2.00±0.25

φ5.0

5.0±0.20

0.50±0.10

1.00±0.15

1.50±0.20

2.00±0.25

φ5.5

5.5±0.20

0.50±0.10

1.00±0.15

1.50±0.20

2.00±0.25

φ6.0

6.0±0.20

0.50±0.10

1.00±0.15

1.50±0.20

2.00±0.25

φ6.5

6.5±0.20

0.50±0.10

1.00±0.15

1.50±0.20

2.00±0.25

φ7.0

7.0±0.20

—

1.00±0.15

1.50±0.20

2.00±0.25

φ7.5

7.5±0.20

—

1.00±0.15

1.50±0.20

2.00±0.25

φ8.0

8.0±0.25

—

1.00±0.15

1.50±0.20

2.00±0.25

φ9.0

9.0±0.25

—

1.00±0.15

1.50±0.20

2.00±0.25

φ10.0

10.0±0.25

—

1.00±0.15

1.50±0.20

2.00±0.25

φ11.0

11.0±0.30

—

1.00±0.15

1.50±0.20

2.00±0.25

φ12.0

12.0±0.30

—

1.00±0.15

1.50±0.20

2.00±0.25

φ13.0

13.0±0.30

—

1.00±0.15

1.50±0.20

2.00±0.25

φ14.0

14.0±0.30

—

—

1.50±0.20

2.00±0.25

φ15.0

15.0±0.30

—

—

1.50±0.20

2.00±0.25

φ20.0

20.0±0.30

—

—

—

2.50±0.3



Remark: Other sizes can be made upon customer requirements.



.



Silicon Rubber Watches in Test Tube For Household Appliances






Company Information






Silicon Rubber Watches in Test Tube For Household AppliancesSilicon Rubber Watches in Test Tube For Household AppliancesSilicon Rubber Watches in Test Tube For Household AppliancesSilicon Rubber Watches in Test Tube For Household Appliances

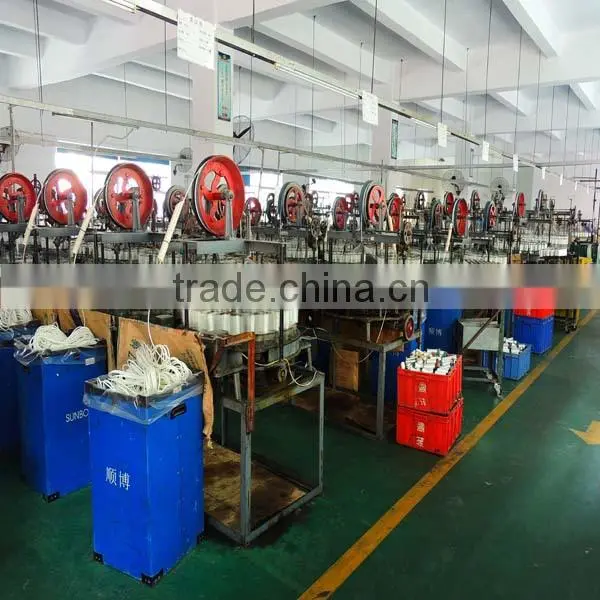

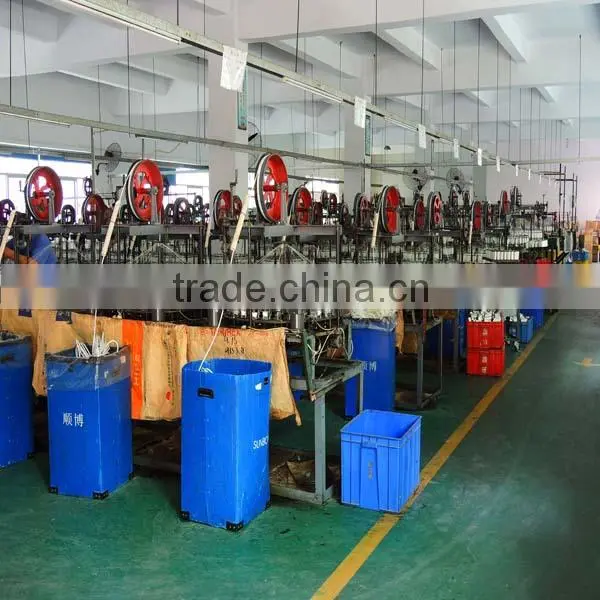

Above are Real Photos Taken From Our Factory, Welcome To Visit Our Factory!!! Hope Our Collaboration!!!
