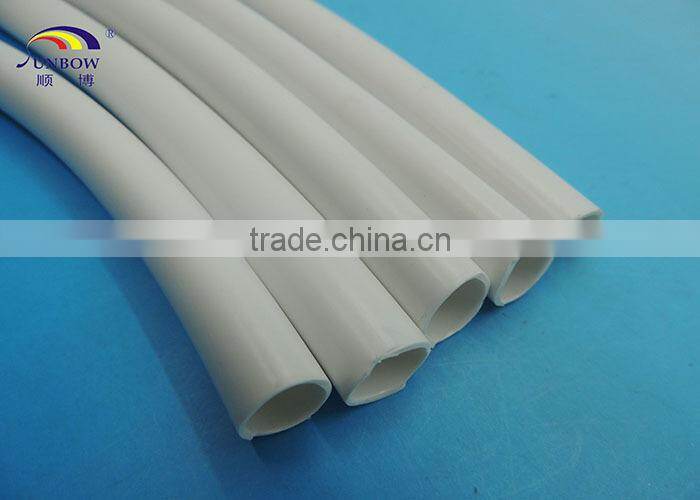

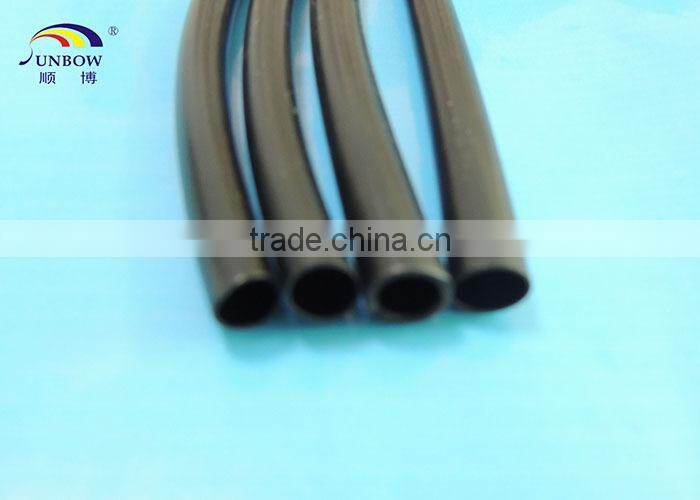

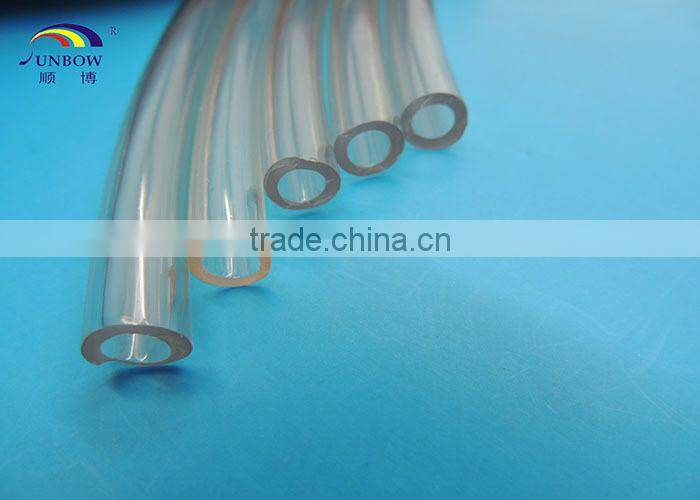

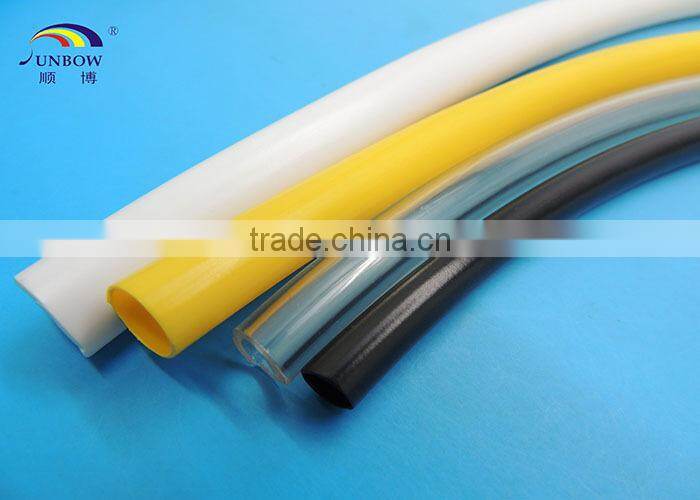

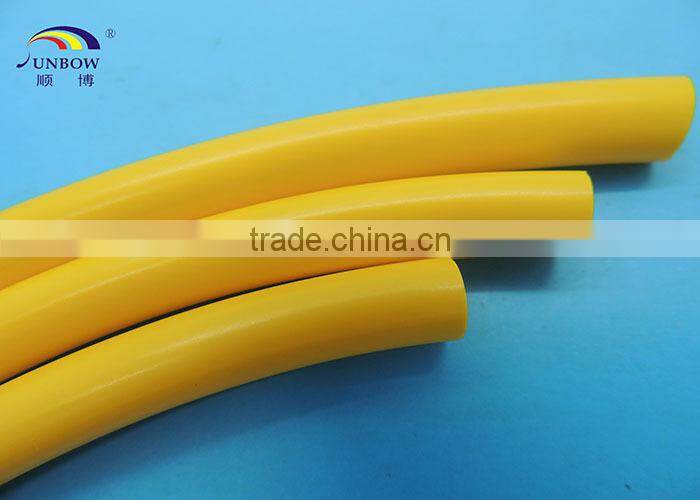

RoHS Approval Flexible Insulation Clear Vinyl Sleeves For Cables
PRODUCT DESCRIPTION
RoHS Approval Flexible Insulation Clear Vinyl Sleeves For Cables is produced by superior and environmental- friendly polyvinyl colloidal particle, after drying, extruded to tubing when heated up and liquated, then packing in rolls after cooling.
SPECIFICATION
Item |
Unit |
Test Method |
Numerical Value |
||
SB-300 |
SB-600 |
||||
Voltage Rating |
V |
|
300 |
600 |
|
Temperature Rating |
ºC |
UL224 |
105 |
||
Voltage Resistance |
Before Aging |
|
UL224 23ºC |
2500V/60sec |
|
After Aging |
UL224 136ºC 168hrs |
2500V/60sec |
|||
Volume Resistivity |
Ωcm |
UL224 |
≥1010 |
||
Tensile Strength |
Before Aging |
Mpa |
UL224 23ºC |
≥10.4 |
|
After Aging |
Mpa |
UL224 136ºC 168hrs |
≥7.3 |
||
Elongation |
Before Aging |
% |
UL224 23ºC |
≥100% |
|
After Aging |
% |
UL224 136ºC 168hrs |
≥100% |
||
Flexibility |
|
UL224 136ºC 168hrs |
No Cracking |
||
Heat Shock |
|
UL224 180ºC 4hrs |
No Cracking |
||
Cold Bend |
|
UL224 30ºC 1hrs |
No Cracking |
||
Copper Stability |
|
UL224 136ºC 168hrs |
No Corrosion |
||
Flame Resistance |
|
UL224 |
VW-1 |
||
APPLICATION
With the excellent flexibility, mechanical and dielectric capability, flame resistance performance, RoHS Approval Flexible Insulation Clear Vinyl Sleeves For Cables is widely used in outside insulation protection of outgoing wires of electrical appliances, transformers, electrical motors or lighting equipment, electronic components, wire harness and etc.
DIMENSION
|
Inner Diameter (mm) |
Wall Thickness(mm) |
Package (m/roll) |
|
SB-300 |
SB-600 |
||
0.80±0.1 |
0.25±0.05 |
0.40±0.05 |
500 |
1.0±0.1 |
0.30±0.05 |
0.40±0.05 |
500 |
1.5±0.1 |
0.33±0.05 |
0.45±0.05 |
400 |
2.0±0.2 |
0.33±0.05 |
0.50±0.05 |
400 |
2.5±0.2 |
0.35±0.05 |
0.50±0.05 |
300 |
3.0±0.2 |
0.40±0.05 |
0.50±0.05 |
300 |
3.5±0.2 |
0.40±0.05 |
0.50±0.05 |
300 |
4.0±0.2 |
0.45±0.05 |
0.55±0.05 |
300 |
4.5±0.3 |
0.45±0.05 |
0.55±0.05 |
300 |
5.0±0.3 |
0.45±0.05 |
0.55±0.05 |
300 |
6.0±0.3 |
0.45±0.05 |
0.55±0.05 |
300 |
7.0±0.3 |
0.45±0.05 |
0.55±0.05 |
150 |
8.0±0.35 |
0.45±0.05 |
0.55±0.05 |
150 |
9.0±0.35 |
0.50±0.05 |
0.60±0.05 |
150 |
10.0±0.35 |
0.55±0.10 |
0.65±0.10 |
150 |
11.0±0.40 |
0.55±0.10 |
0.65±0.10 |
150 |
12.0±0.40 |
0.55±0.10 |
0.65±0.10 |
150 |
13.0±0.40 |
0.55±0.10 |
0.65±0.10 |
150 |
14.0±0.40 |
0.55±0.10 |
0.65±0.10 |
150 |
15.0±0.40 |
0.60±0.10 |
0.70±0.10 |
50 |
16.0±0.40 |
0.60±0.10 |
0.70±0.10 |
50 |
17.0±0.40 |
0.60±0.10 |
0.70±0.10 |
50 |
18.0±0.40 |
0.60±0.10 |
0.70±0.10 |
50 |
19.0±0.40 |
0.65±0.10 |
0.75±0.10 |
50 |
20.0±0.50 |
0.65±0.10 |
0.75±0.10 |
50 |
21.0±0.50 |
0.65±0.10 |
0.75±0.10 |
50 |
22.0±0.50 |
0.70±0.10 |
0.80±0.10 |
50 |
23.0±0.50 |
0.70±0.10 |
0.80±0.10 |
50 |
24.0±0.50 |
0.75±0.10 |
0.85±0.10 |
50 |
25.0±0.50 |
0.75±0.10 |
0.85±0.10 |
50 |
26.0±0.50 |
0.85±0.10 |
0.85±0.10 |
50 |
FREQUENTLY ASKED QUESTIONS
Q1. You are a factory or trading company?
We are a factory and we can provide best price and high quality products for you.
Q2. Can you accept sample orders?
Yes, we can accept sample orders and we can also provide free samples for your test if necessary.
Q3. What is your MOQ?
Normally, 1000m per size.
Q4. What are your payment terms?
T/T 100% or West Union.
Q5. How can I get my order? How can I know you sent the goods?
We will send the goods by UPS, DHL, FedEx or sea shipment. After we sent the goods , we will give you the tracking number or other relative files for your check.
Q6. How about your quality?
Try a small order, and then you can judge.
Q7. Have you passed any certificates?
Yes. We are an ISO9001:2008 quality management system certificated manufacturer. Our products have passed UL, ROHS, REACH certifications. If necessary, we can send you relative files.
Q8. Are there any advantages to choose your products?
1) ISO 9001 : 2008 TS 16949 standard factory manufacturer
2) high-tech enterprise in China
3) with 12-year manufacturing experience
4) factory direct sales
5) best price high quality product
6) quick delivery time
7) quick response for feedback
8) few complaints from customers
9) more competitive price for VIP customers
10) convenient situation near to seaport
