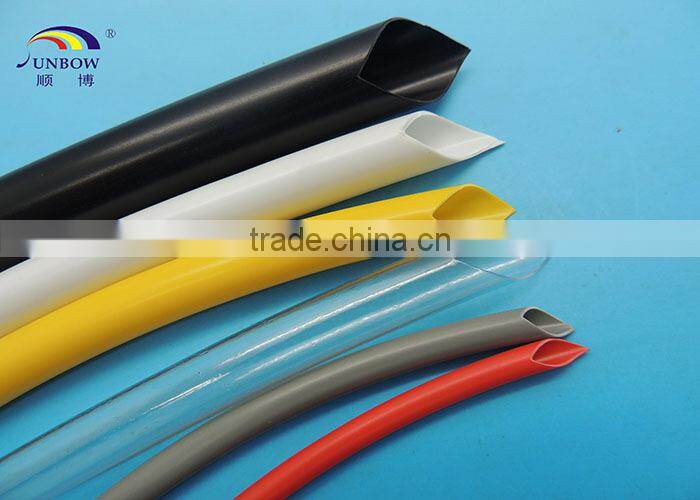

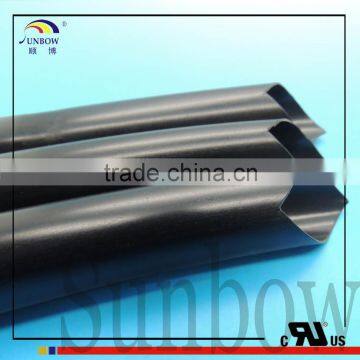

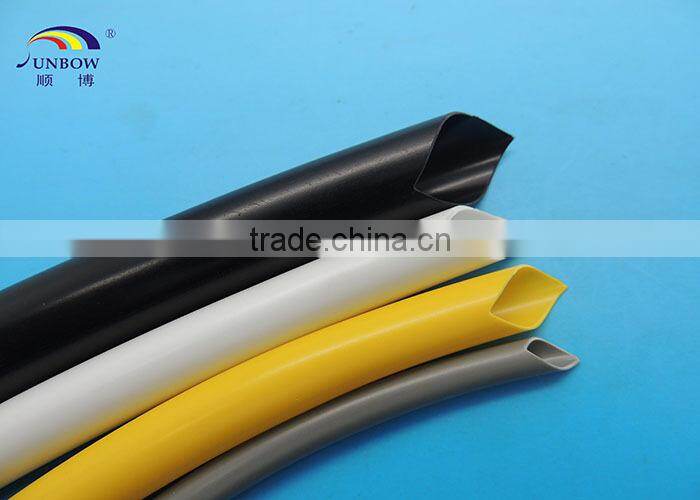

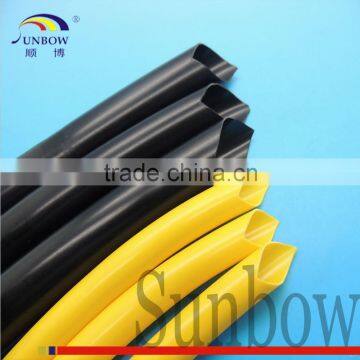

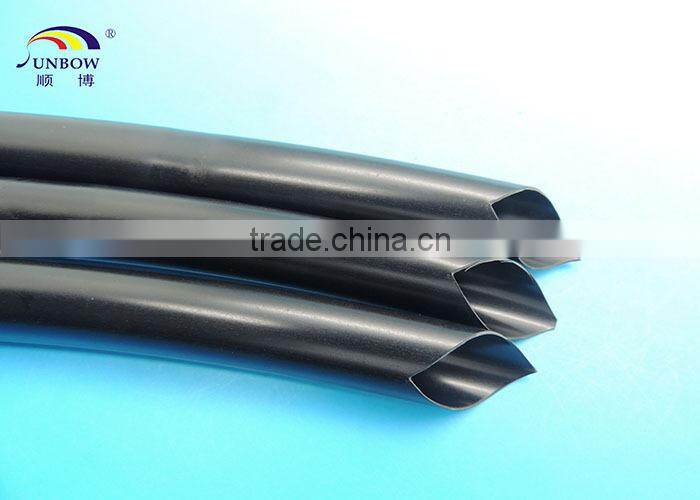

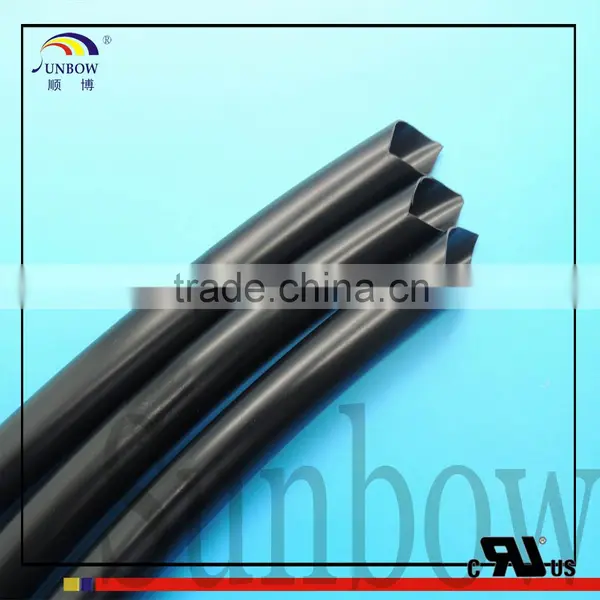

RoHS Flexible Eco-friendly Insulation Vinyl Tube Black For Wire Harness
STRUCTURE
RoHS Flexible Eco-friendly Insulation Vinyl Tube Black For Wire Harness is produced by superior and environmental- friendly polyvinyl colloidal particle, after drying, extruded to tubing when heated up and liquated, then packing in rolls after cooling.
SPECIFICATION
Item | Unit | Test Method | Numerical Value | ||
SB-300 | SB-600 | ||||
Voltage Rating | V |
| 300 | 600 | |
Temperature Rating | ºC | UL224 | 105 | ||
Voltage Resistance | Before Aging |
| UL224 23ºC | 2500V/60sec | |
After Aging | UL224 136ºC 168hrs | 2500V/60sec | |||
Volume Resistivity | Ωcm | UL224 | ≥1010 | ||
Tensile Strength | Before Aging | Mpa | UL224 23ºC | ≥10.4 | |
After Aging | Mpa | UL224 136ºC 168hrs | ≥7.3 | ||
Elongation | Before Aging | % | UL224 23ºC | ≥100% | |
After Aging | % | UL224 136ºC 168hrs | ≥100% | ||
Flexibility |
| UL224 136ºC 168hrs | No Cracking | ||
Heat Shock |
| UL224 180ºC 4hrs | No Cracking | ||
Cold Bend |
| UL224 30ºC 1hrs | No Cracking | ||
Copper Stability |
| UL224 136ºC 168hrs | No Corrosion | ||
Flame Resistance |
| UL224 | VW-1 | ||
DIMENSION
Inner Diameter (mm) | Wall Thickness(mm) | Package (m/roll) | |
SB-300 | SB-600 | ||
0.80±0.1 | 0.25±0.05 | 0.40±0.05 | 500 |
1.0±0.1 | 0.30±0.05 | 0.40±0.05 | 500 |
1.5±0.1 | 0.33±0.05 | 0.45±0.05 | 400 |
2.0±0.2 | 0.33±0.05 | 0.50±0.05 | 400 |
2.5±0.2 | 0.35±0.05 | 0.50±0.05 | 300 |
3.0±0.2 | 0.40±0.05 | 0.50±0.05 | 300 |
3.5±0.2 | 0.40±0.05 | 0.50±0.05 | 300 |
4.0±0.2 | 0.45±0.05 | 0.55±0.05 | 300 |
4.5±0.3 | 0.45±0.05 | 0.55±0.05 | 300 |
5.0±0.3 | 0.45±0.05 | 0.55±0.05 | 300 |
6.0±0.3 | 0.45±0.05 | 0.55±0.05 | 300 |
7.0±0.3 | 0.45±0.05 | 0.55±0.05 | 150 |
8.0±0.35 | 0.45±0.05 | 0.55±0.05 | 150 |
9.0±0.35 | 0.50±0.05 | 0.60±0.05 | 150 |
10.0±0.35 | 0.55±0.10 | 0.65±0.10 | 150 |
11.0±0.40 | 0.55±0.10 | 0.65±0.10 | 150 |
12.0±0.40 | 0.55±0.10 | 0.65±0.10 | 150 |
13.0±0.40 | 0.55±0.10 | 0.65±0.10 | 150 |
14.0±0.40 | 0.55±0.10 | 0.65±0.10 | 150 |
15.0±0.40 | 0.60±0.10 | 0.70±0.10 | 50 |
16.0±0.40 | 0.60±0.10 | 0.70±0.10 | 50 |
17.0±0.40 | 0.60±0.10 | 0.70±0.10 | 50 |
18.0±0.40 | 0.60±0.10 | 0.70±0.10 | 50 |
19.0±0.40 | 0.65±0.10 | 0.75±0.10 | 50 |
20.0±0.50 | 0.65±0.10 | 0.75±0.10 | 50 |
21.0±0.50 | 0.65±0.10 | 0.75±0.10 | 50 |
22.0±0.50 | 0.70±0.10 | 0.80±0.10 | 50 |
23.0±0.50 | 0.70±0.10 | 0.80±0.10 | 50 |
24.0±0.50 | 0.75±0.10 | 0.85±0.10 | 50 |
25.0±0.50 | 0.75±0.10 | 0.85±0.10 | 50 |
26.0±0.50 | 0.85±0.10 | 0.85±0.10 | 50 |
APPLICATION
With the excellent flexibility, mechanical and dielectric capability, flame resistance performance, RoHS Flexible Eco-friendly Insulation Vinyl Tube Black For Wire Harness is widely used in outside insulation protection of outgoing wires of electrical appliances, transformers, electrical motors or lighting equipment, electronic components, wire harness and etc.
SUNBOW STATEMENTS
1) We promise our clients excellent quality, reasonable price, perfect service and on-time delivery. We are committed to becoming a globally-outstanding and recognized leader in insulation sleeving industry, a preferred and qualified supplier of world-class manufacture and a well-known enterprise all over the world;
2) We promise all our products supplied are of high quality, environmental-friendly, safe and reliable. We always make our contribution to human and social harmony;
3) We promise that all our products follow close to the line of all applicable laws, rules and regulations, and any other related requirements;
4) We improve our equipment performance, make innovation in our technologies and upgrade our specifications continuously. We are keeping improving our products quality, saving energy, pursueing low-carbon economy and improving environmental-friendly and safe performance of the products;
5) We are committed to providing our staffs with effective and comprehensive training and corresponding resources to improve their skills and their awareness of health, safety and environmental protection. We apply ourselves to improve our staffs' professional skills and quality to ensure that they can improve working performance and career competitiveness.
YOU CAN SEND YOUR DETAILED INQUIRY FOR FREE SAMPLES AND PLEASE CLICK "SEND" NOW !
