axle bearing
axle bearing
abec 5 809 skateboard bearing
Specification of rear axle bearing
1) Miniature bearings mainly take radial load as well as take moderate axial load;
2) With less coefficient of friction, high limiting speed;
3) A widely used type of bearings in machinery industry.
Model Number | 809 skateboard bearing |
Brand Name | HSH |
Structure | Deep Groove |
Type | Ball |
Bore Size | 8mm |
Outside Diameter | 22mm |
Width | 7mm |
Seals Type | ZZ |
Material | Chrome Steel |
Cage material | steel |
Clearance | C0 |
Vibration | Z1V1 |
Precision Rating | |
Greese | As you requirement, such as SRL ,PS2, Alvania R12 and so on |
Number of Row | Single Row |
Guarantee | One year. |
Application | Home appliances, low noise and high speed electric motors, |
automotive components, pumps, machinery. |
Bearing characteristics of rear axle bearing
Double row deep groove ball bearing
Double row deep groove ball bearing 4200 series and 4300 series both has open, seal, shield type. All double row deep groove ball bearing can bear heavy radial load, moment load and little axial load. Compare to single row deep groove ball bearing, this bearing has better rigidity and can bear main radial load and radial and axial combined load, with over turning moment which can be used very easy. Bearing is separate. It is widely used on high precision machine, car, generator, reduction gear, water pump, oil pump and so on. Liyang double row deep groove ball bearing has open size, seal/shield nylon cage types.
Deep groove ball bearings are the simplest yet the most popular bearing:
- Suitable for very high rotating speeds
- Well suited for medium high radial and axial loads in one or both directions
- Various seals and grease variants available for different operating conditions
- Numerous clearance and tolerance classes available for different operating conditions
If you are interested in 4315 skateboard bearing, please click here to get the offer.
Product showing of rear axle bearing

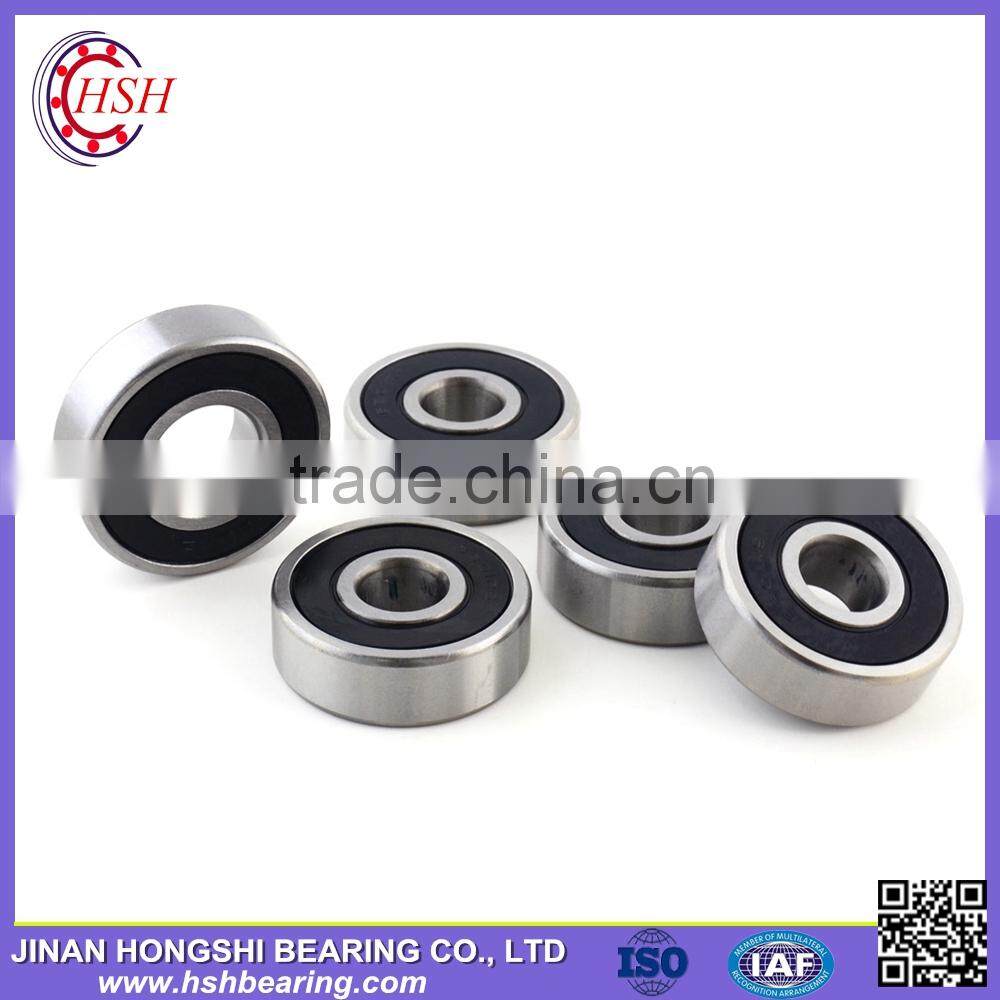

Chrome Steel deep groove ball bearing ( Minature ball bearing 609

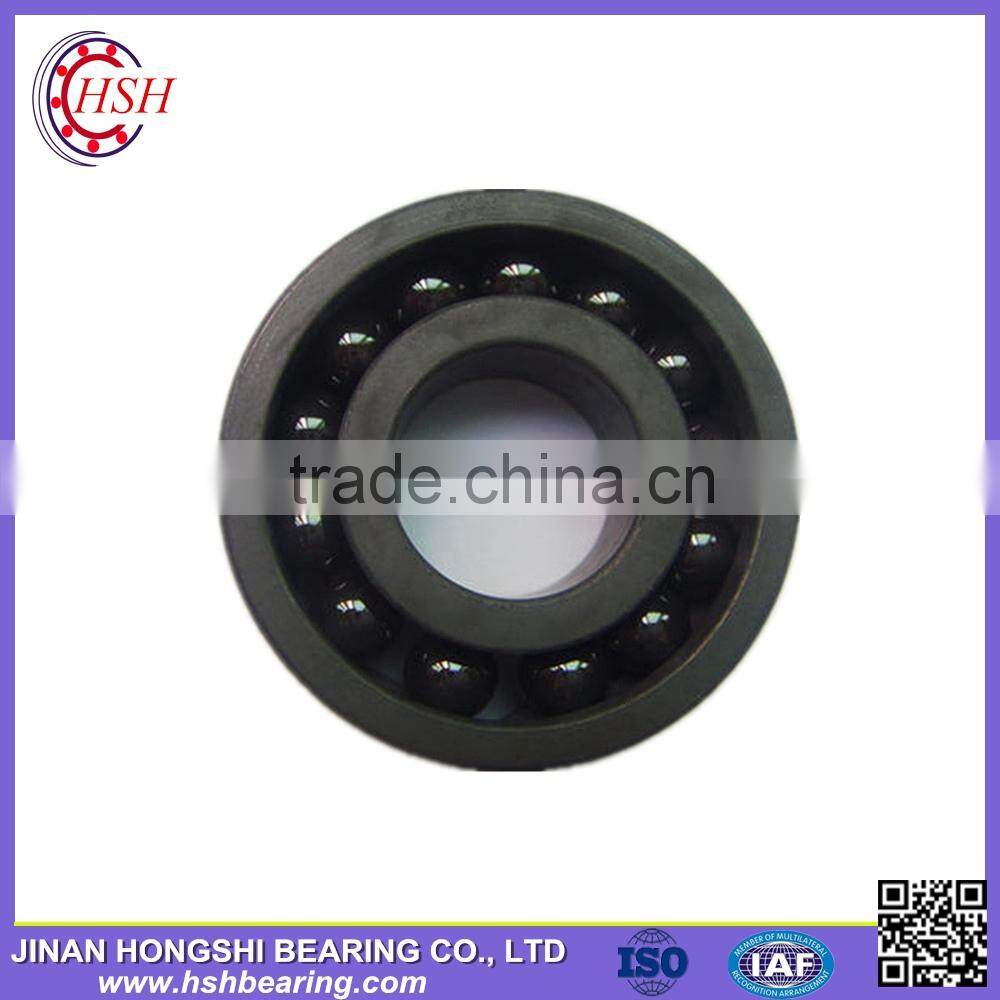

Full ceramic deep groove ball bearing ( Minature ball bearing 609 )

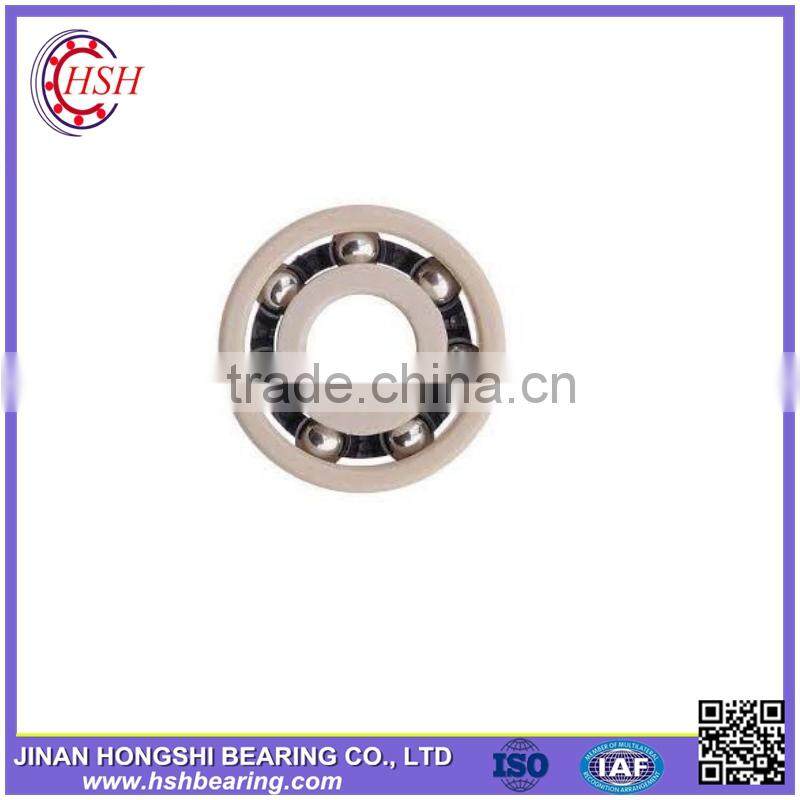

Plastic deep groove ball bearing ( Minature ball bearing 609 )
Stainless steel deep groove ball bearing ( Minature ball bearing 609 )
Application of abec 5 809 skateboard bearing
Deep groove ball bearings can be used in gearbox, instrument, motor, household appliances, internal combustion engine, transport vehicle agricultural mechanics, construction machinery, engineering machinery, yo-yo and so on.
More details of 600 series deep groove ball bearing
6000 Series Miniature Deep Groove Ball Bearing
| N0. | Bore | O.D | Width | Chamfer | Load Rating | Maximuum Seed | Weight | ||
mm | mm | mm | mm | Dynamic Cr | Static Cor | Grease r/min | Oil r/min | Kg/pcs | |
| 604 | 4 | 12 | 4 | 0.2 | 0.97 | 0.36 | 36000 | 44000 | 0.0021 |
| 605 | 5 | 14 | 5 | 0.2 | 1.33 | 0.505 | 32000 | 40000 | 0.0035 |
| 606 | 6 | 17 | 6 | 0.3 | 2.19 | 0.865 | 30000 | 38000 | 0.006 |
| 607 | 7 | 19 | 6 | 0.3 | 2.24 | 0.91 | 28000 | 36000 | 0.008 |
| 608 | 8 | 22 | 7 | 0.3 | 3.35 | 1.4 | 26000 | 34000 | 0.012 |
| 609 | 9 | 24 | 7 | 0.3 | 3.4 | 1.45 | 24000 | 32000 | 0.014 |
| 6000 | 10 | 26 | 8 | 0.3 | 4.55 | 1.96 | 22000 | 30000 | 0.019 |
| 6001 | 12 | 28 | 8 | 0.3 | 5.1 | 2.39 | 19000 | 26000 | 0.021 |
| 6002 | 15 | 32 | 9 | 0.3 | 5.6 | 2.83 | 18000 | 24000 | 0.03 |
| 6003 | 17 | 35 | 10 | 0.3 | 6.8 | 3.35 | 17000 | 22000 | 0.039 |
| 6004 | 20 | 42 | 12 | 0.6 | 9.4 | 5.05 | 15000 | 19000 | 0.069 |
| 6005 | 25 | 47 | 12 | 0.6 | 10.1 | 5.85 | 14000 | 18000 | 0.08 |
| 6006 | 30 | 55 | 13 | 0.6 | 13.2 | 8.3 | 12000 | 15000 | 0.116 |
| 6007 | 35 | 62 | 14 | 1.0 | 16 | 10.3 | 10000 | 14000 | 0.115 |
| 6008 | 40 | 68 | 15 | 1.0 | 16.8 | 11.5 | 8000 | 11000 | 0.19 |
Packaging of abec 5 809 skateboard bearing
1. Industrial packaging: plastic bag + kraft paper + carton + plywood pallets; plastic tube + carton + plywood pallets;
2. Commercial packing: 1pc/plastic bag + color box + carton + plywood pallets
3. As the clients' requirement
Shipping terms of abec 5 809 skateboard bearing
Shipping terms of minature ball bearing
1.small quantity, can delivery by global express: DHL TNT FedEx ARAMEX EMS UPS. this is door to door.
2.large quantity, can delivery by air, by sea, this is port to port.
Payment terms of abec 5 809 skateboard bearing
Our service
Why choose us?
Jinan Hongshi Bearing Co., Ltd., with our own brand name HSH, is a leading manufacturer and exporter of ball bearings and roller bearings in China. Our workshop covers an area of over 5000 square meters, and there are more than 50 employees, including an outstanding team which consists of experts, composed of senior engineers and high-quality staff.
Our products are widely used in the agricultural machine, textile production, mining, printing and packing industries, in addition to various applications at airports, in air-conditioning systems, conveying devices, ships and so on.
A domestic sales and service network has been established to cover 15 major cities around China, and products are being exported to more than 60 countries and regions overseas including Japan, Korea, Italy ,Iran, Switzerland, France, America, Singapore, Thailand, India, Pakistan, Russia, Turkey ,England ,Australia as well as other countries and regions all over the world.
We insist on the principle “quality and cheap, first-class service, good faith and common development”, and look forward to the cooperate from the domestic and foreign customers.
If you are interested in any of our bearings or have an intention to order, please feel free to contact us.
Our workshop
If you are interested in our products deep groove ball bearing, welcome to contact us for more detailed information,
- Your inquiry related to our product & price will be replied within 24hours
- Well-trained & experienced staff are to answer all your inquiries.
- OEM & ODM projects are highly welcomed. We have strong R&M team here to help.
- Free samples available
- The professional Logistic Center service
- Technical support after sale
- Any other reasonable requirements.
Q1: If we cannot find the products that we need in your prodcution description, what should we do?
Please send us the model NO or the size and type of the products that you need. Firstly, we will check whether it is in stock or not. The bearings operated by our company is a wide variety, completes specifications, present 20-30 new products every month and some of them were not uploaded to website timely. If any special bearing is needed, we can also customized for you.
Q2: If the model letter of the bearing can not be seen clearly, is it the reason of the abrasion?
You can also provide the size and using environment or drawing of the bearings to us, we will provide the most suitable products for you!
Welcome here to get your bearings! You will get the best quality bearings in China and the best service in our company!
