45kv voltage and abrasion resistance ptfe tube
GRADE:SB-PTFE
STRUCTURE&USAGE
PTFE Tube manufacture by extrusion process with imported high quality PTFE resin. It has excellent
high temperature resistance, high voltage resistance, abrasion resistance and self-lubricating
properties. It widely used in mechanical industries, electronic and electric products,motor vehicle,
aerospace, chemical industry, communications etc.
CHARACTERISTICS
1. Operating Temperature: -80C~260C;
2. Excellent anti-corrosion (anti-acid/alkaline/chemical/oil);
3. High voltage resistance (45kv/mm)
SPECIFICATION
Item |
Standard |
Item |
Standard |
Relative Density |
2.14~2.20 |
Melting Point (0C) |
327 |
Tensile Strength (MPa) |
≥25 |
Operating Temperature (0C) |
-80~260 |
Stretch Yield Strength (MPa) |
≥11 |
Oxygen index(%) |
>90 |
Elongation (%) |
≥300 |
Water Absorption (%) |
<0.01 |
Arc Resistance |
>300 |
Linear Expansion Coefficient (×105/0C)21~1000C |
10 |
Shore Hardness (D) |
59~63 |
breakdown strength (kv/mm) |
≥45 |
volume resistance (Ω.cm) |
1×1016 |
DIMENSION
COLOR : The standard color is clear luctte.

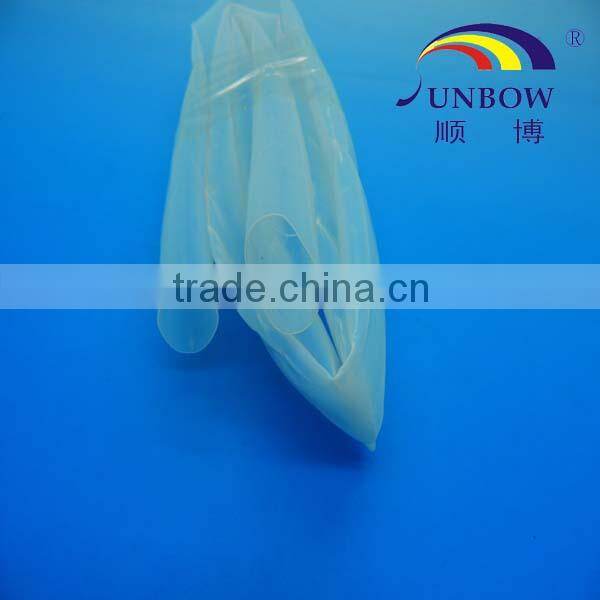

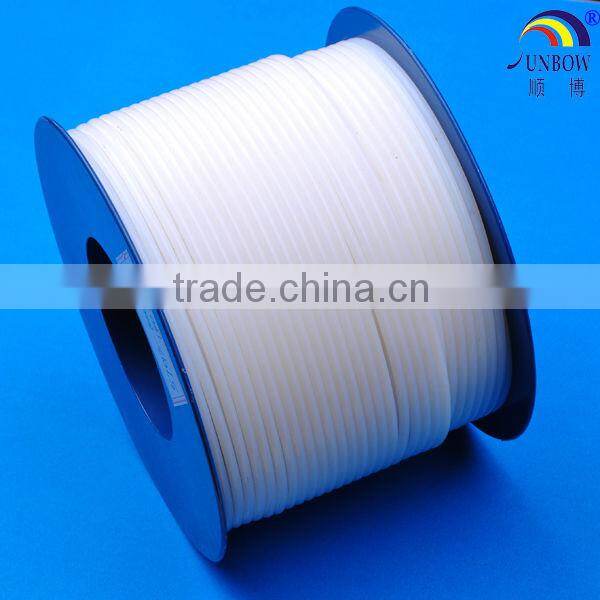

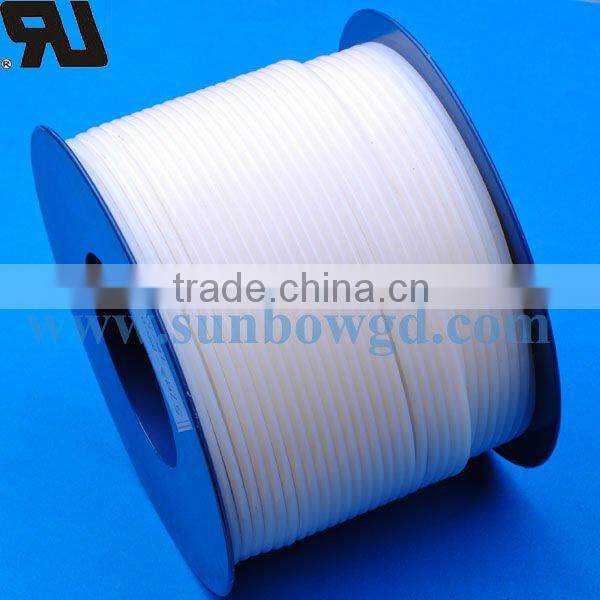

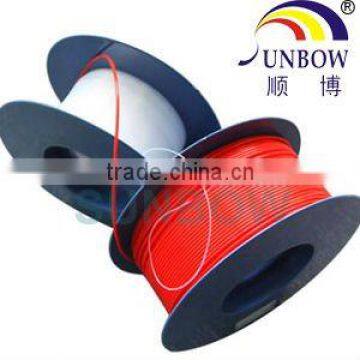

PHOTO:
About us:
Our main products include various fiberglass sleeving, silicone tube (especially the platinum
cured silicone tube), PTFE tube, PVC tube, Heat shrinkable tube and so on.
All our products have obtained theUL and CSA certificates (Cert No: E333178 --UZIQ2,
VW-1 & E333177--UZFT2/8,200C, 600V).Also all our products are in conformance with the
European RoHS requirements. Furthermore, based on European new requiremen ts,
we re-apply and obtained German PFOA and PFOS certificatesand European REACH
report showing that our products do not contain 73 high-risk substances. In Sep.2009, we
successfully passed ISO9001:2008 international quality management system certification,
now ISO14001 system is also pushing.
Q : Are you a factory or trading company ?
A: We are a factory , can offer best quality product and reasonable price for you
Q: Can you accept sample order?
A: Yes, we accept samples with little and reasonable charge.
Q: What is your MOQ?
A: Normally,1000 Meter per color.
Q:What is your delivery time?Can we short it in 7 days or less?
A: 3 days for sample, 3-25 days for mass production. (depend quantity)
Q: What is your payment terms?
A: T/T,Paypal(3% surcharge),Western Union
Q: How can I get my order?How can I know you sent the goods.
A: We will send you the goods by UPS, DHL, Fedex, Oversea Shipment or other
forwarder, all with tracking number.
Q:How about your quality?
A: Try a small order, you will have your judgement!
