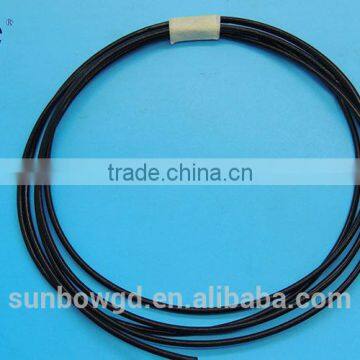

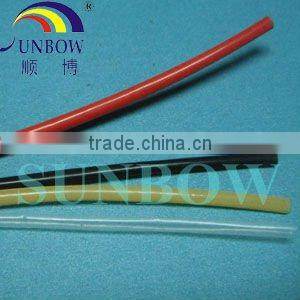

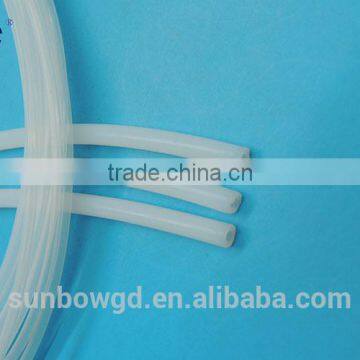

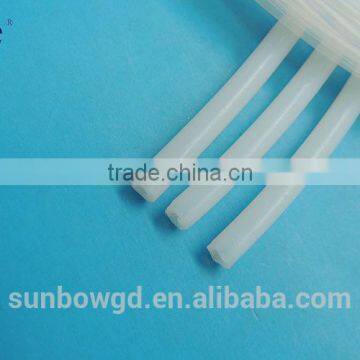

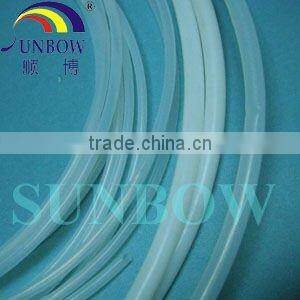

45kv high temp heat pump insulation PTFE TUBE
GRADE:SB-PTFE
STRUCTURE&USAGE
PTFE Tube manufacture by extrusion process with imported high quality PTFE resin. It has excellent high temperature resistance, high voltage resistance, abrasion resistance and self-lubricating properties. It widely used in mechanical industries, electronic and electric products, motor vehicle, aerospace, chemical industry, communications etc.
CHARACTERISTICS
1.Operating Temperature: -800C~2600C;
2. Excellent anti-corrosion (anti-acid/alkaline/chemical/oil);
3. High voltage resistance (45kv/mm)
SPECIFICATION
Item |
Standard |
Item |
Standard |
Relative Density |
2.14~2.20 |
Melting Point (0C) |
327 |
Tensile Strength (MPa) |
≥25 |
Operating Temperature (0C) |
-80~260 |
Stretch Yield Strength (MPa) |
≥11 |
Oxygen index(%) |
>90 |
Elongation (%) |
≥300 |
Water Absorption (%) |
<0.01 |
Arc Resistance |
>300 |
Linear Expansion Coefficient (×105/0C)21~1000C |
10 |
Shore Hardness (D) |
59~63 |
breakdown strength (kv/mm) |
≥45 |
|
|
volume resistance (Ω.cm) |
1×1016 |
