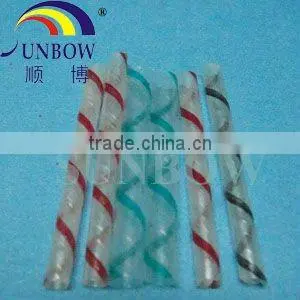

High Temperature Application Insulation polyester shrink tube fabric for soldering
GRADE:SB-MLT
Operating temperature:-60°C~+150°C
STRUCTURE
PET tubing is manufactured by twisted polyester film then adhesives by special glue. The glue possesses similar chemical characteristics with polyester film.
USAGE
Main application range: insulation and mechanical protection for soldering, connection, wire harness, transformer, motor, cable, heating element, capacitor, telephone, electrical appliance etc.
PRODUCT CHARACTERISTICS
Dimension |
Inside diameter2.0-65(mm),Thickness 0.05-1 (mm), Length10-1000(mm) |
|||
Color |
Clarity, light yellow, haze , stripe |
|||
Melting point |
250°C-265°C |
|||
Service temperature |
-70~150°C |
|||
Dielectric strength |
2650V/MIL25°C60CYCLE 2125V/MIL150°C60CYCLE |
|||
Water absorption |
75% max after 24 hr immersion |
|||
Corrosive on Copper |
Negligible |
|||
Solubility in acid, oil, paint, industrial solvents tec. |
Undissolved |
|||
Antibacterial, anti corrosive |
Excellent |
|||
Tenacity |
Excellent |
|||
Cuticle intensity |
400g/cm2 (MIN) |
|||
Resistance pressure |
50HZ 2500V/min Not perforative |
|||
Visual |
Smooth, No fleck & Eye winker |
|||
Style |
Polyester |
Heat shrink polyester |
Slow shrink polyester |
Not flammable polyester |
Shrinkage (Diameter) |
≤2 |
32% |
8-12% |
≤2% |
Shrinkage (Length) |
≤2 |
35% |
8-12% |
≤2% |
Flammability |
Slow to self-extinguishing |
Burning resistance |
||
Resistance characteristics |
Resistance to abrasion, acids, immersion, mildew, industrial solvent, mechanical destroy, Freon and special liquids |
|||
Xylene extraction |
<2% |
|||
Environment protection |
No hurtful to human and environment |
|||
Note: Besides above dimension, we can manufacture other dimension upon request.
