Home > Products > Hammer Crusher > Zibo Produces the Best PCB Type Hammer Crusher/Breaker/Bucker/Kibbler

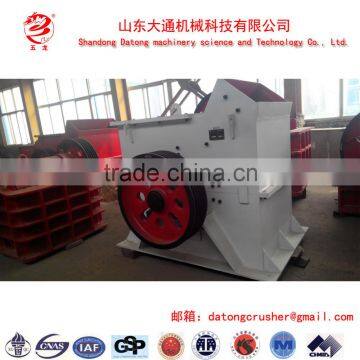

Zibo Produces the Best PCB Type Hammer Crusher/Breaker/Bucker/Kibbler

Name: Zibo Produces the Best PCB Type Hammer Crusher/Breaker/Bucker/Kibbler
Brand: SD-DaTong
Availability: InStock

FOB Price

US$ 1000.00 - 16000.00 / Set

1 Set(Min. Order)

Port QingDao
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Hammer Crusher
Application	Ore	Motor Type	AC Motor
Power(W)	90kw	Capacity(t/h)	56-190(t/h)
Place of Origin	Shandong, China	Brand Name	SD-DaTong
Model Number	PCB-1000*1500	Dimension(LWH)	196025701830
Weight	8t	Certification	ISO9001:2008
Warranty	One Year	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Application:
   It is applied to crush various material of medium hardness and weak abradability.Its compressive strength is not more than 100Mpa, moisture content is less than 15%,such as coal, salt , chalk, gypsum, limestone, etc.

Operating principle:
    The electric motor drives the rotor to run at a high speed in the crushing cavity.The material comes into the machine from the material inlet on the top, is crushed through the action of strike, impact, shear and grind of the hammer that is moving at a high speed.Under the rotor, there is a sifting plate.The material of which granulometric class is less than sifting hole is discharged through sifting plate.The material of which granulometric class is more than sift size will leave on the sifting plate and will continue to be stroke and ground.It is discharged out of the machine till it is meet the requirements.

Chracteristics:
    The machine has such characteristics as simple structure, convenient maintenance.big ratio of crushing, high efficiency, finished product epigranular,etc.

*PCB-10001500 Type Hammer Crusher**
Technical Parameter	Product model		PCB-1000*1500
	Feeding gate size	mm	1000*1500
	Discharging material granularity	mm	＜10-80
	Maximum feeding material granularity	mm	200
	Production capacity	t/h	56-190
	Motor power	kw	90
Product specifications	Boundary dimension	mm	196025701830

Main Features

1、Model for the latest products, a wide range of applications, with a compact structure, long service life, high efficiency.
2、The machine has such characteristics as simple structure, convenient maintenance.big ratio of crushing, high efficiency, finished product epigranular,etc.
3、Adjust the equipment more compact, more stable, fast, work efficiency is improved obviously.
4、First-class technology, reliable pre-sale customer service service quality. The products meet European CE certification standards.

Certifications

Detailed Images

Machine Parts

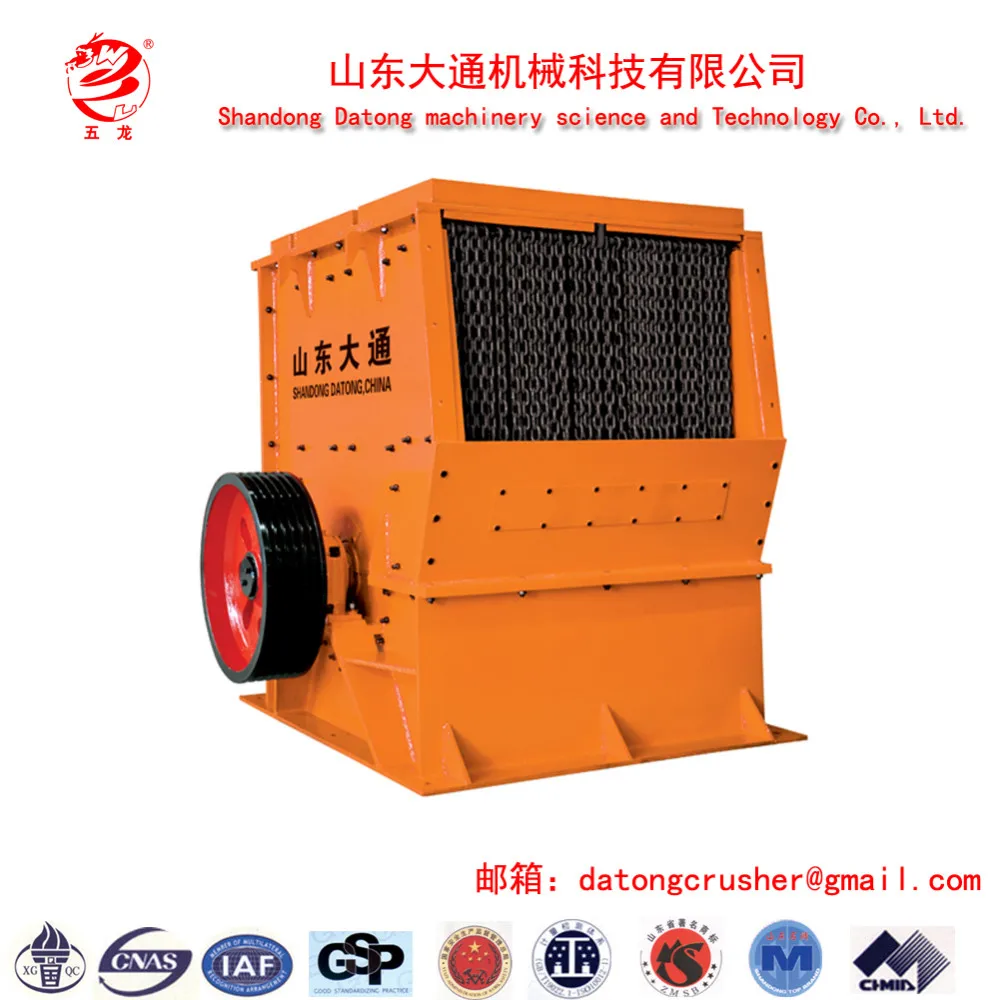

Name: PCB-1000*1500 Type Hammer Crusher

Brand: SD-DaTong

Original:Chine

Theelectric motor drives the eccentric shaft by belt pulley to make moving jaw toothed plate move upward and downward, so as to push the moving jaw toothed plate to the fixed jaw toothed plate, to crush the material or splitting the material by doing reciprocating motion of approaching and leaving.

Shandong Datong production workshop

The company has more than one large vertical lathe, boring machine, planer, automatic welding machine, CNC cutting machine and other processing equipment. A strong, scientific management, advanced technology, created a unique charm and unique quality of Datong Datong of Shandong brand products. Today, composite cone type, jaw crusher, fine jaw crusher, hammer, impact crusher, to roll series crusher and vibration sifting machine 11 series over 100 varieties of products with reliable production scale.

Real Customer Information

We in accordance with the requirements of customers, for customers provide a complete production line crusher, remove senior engineer to site installation and training machine, and provide a detailed proposal for operation training for customers, according to customer's site requirements and application, we will help customers to choose the right equipment, drilling rigs, loaders, trucks, excavators and other equipment.

Advantages Of SD-Datong Stone Production Line

Name: PCB-Hammer Crusher
Brand:SD-DaTong
Original: Chine
1、First-class technology;
2、Complete stone production line,the Crusher near to turn-key project
3、Fixed or mobile choice
4、With the approval of the chief executive of reliable quality, the products meet the European standards
5、Design, function is updated every year, taking into account the cost savings, the formation of its own unique design, improve the user's ability to think.
6、Invention patent technology.

Our Service

Pre-Sales Service

1、 Inquiry and consulting support.

2、Pre-sale service:Freely provide project designing, process designing, choosing suitable equipment for you.

3、 View our Factory.Field trips to sell products

After-Sales Service

1、After acceptance of the equipment, we will draft the construction program and detailed process, and complete the export process

2、After-sales service: We sent engineer to the scene to guide installation, debugging and training operators.

Packing & Delivery

Packaging
Size	1960(L) * 2570 (W) *1830(H)
Weight	8T
Packaging Details	We will load different sizes of packing according to different machine sizes, and the normal packing is in wooden cases (size: L *). If exported to European countries, wood frame will be fumigation. If the container is too tight, we will use the PE film according to the customer's special requirements.

Delivery
Size	1960(L) * 2570 (W) *1830(H)
Weight	8T
Delivery Details	We will follow the normal and safe packing and transportation to ensure the safe arrival of the goods. We export to many countries, has rich experience in loading the crusher, export standard containers are 20GP, 40GP, 40HQ container, or FR in the case of bulk parts
