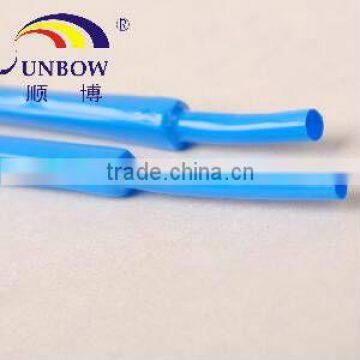

Help CenterUltra Thin Wall PVC Heat Shrinkable Tubing for Batteries
Related Products
-
Nonslip Fishing Rod Heat Shrink TubeNegotiableMOQ: 200 Meters -
PET Braided Expandable Sleeve for Fishing RodNegotiableMOQ: 500 Meters
-
PVC Heat Shrinkable Tubing for Battery PackingUS$ 0.01 - 2MOQ: 5000 Meters
-
Polyester Braided Flexible Tube for Fishing Rod CoverUS$ 0.01 - 2MOQ: 2000 Miles
-
With ISO 9001:2008 TS16949 Standard High Quality Silicone Rubber Cold Shrink TubingNegotiableMOQ: 500 Meters
PVC heat shrinkable tubing is produced with excellent and environmental protective PVC colloidal particle, treated by evaporation, then extruded to tubing when heated up and liquated by extruding machine, and coiling packed after cooling.
USAGE |
PVC heat shrinkable tubing possesses excellent flexibility, mechanical and dielectric capability, flame resistance, low temperature shrinkage etc. It is widely applied in outside insulating protection of outgoing wires of electrical appliances, motors, sensors and transformers, bunchy wires and electronic components, gaseous and liquid pipelines etc.
Property(Wall thickness: 0.10-0.12MM)
Property |
Test method |
Standard |
Tensile strength |
|
≥4000Pa/m2 |
Dielectric voltage withstand |
10seconds |
≥8KV |
Volume resistivity |
Normal temperature Relative temperature≤65% |
≥1015Ω/cm3 |
Resistance to second shrinkage |
185°C 15seconds |
≤20% |
Resistance to second shrinkage |
Dipping in 160°C silicone oil after recovered with capacitor for 3 minutes |
Excellent appearance |
