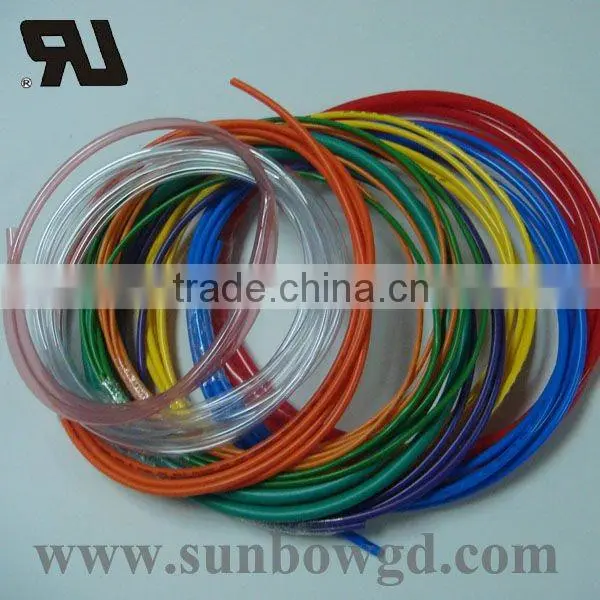

1.5mm red PVC insulation tube
USAGE
General purpose insulation tube, nonflammable, it is suitable for insulation purpose of terminal lug,
small electrical parts, lead wires of toy motor and transformer etc.
SPECIFICATION
ITEM |
PERFORMANCE |
ITEM |
PERFORMANCE |
Continuous operating temperature |
-20°C~105°C |
Potential rating(V) |
300V,600V |
Tensile strength (Mpa) |
≥10.4 |
Potential rating(V) |
no breakdown |
Ultimate elongation(%) |
≥100 |
Corrosion of bare copper |
NO Corrosion |
Optional Flame |
VW-1 |
Heat shock |
NO Cracking |
Aging in circulating air oven |
7day at136.0±1.0°C |
Cold bend |
NO Cracking |
After aging Tensile strength(Mpa) |
≥7.28 |
Maximum longitudinal change |
±5% |
Ultimate elongation (%) |
≥70 |
|
|
DIMENSION
Size |
Nominal Inside Diameter |
Inside Diameter Range |
Thickness(300V) |
Thickness(600V) |
||
AVG |
Range |
AVG |
Range |
|||
AWG |
mm |
mm |
mm |
mm |
mm |
mm |
24 |
0.559 |
0.46-0.66 |
0.35 |
0.30-0.40 |
0.5 |
0.45-0.55 |
23 |
0.635 |
0.54-0.74 |
0.35 |
0.30-0.40 |
0.5 |
0.45-0.55 |
22 |
0.686 |
0.59-0.79 |
0.35 |
0.30-0.40 |
0.5 |
0.45-0.55 |
21 |
0.787 |
0.69-0.89 |
0.4 |
0.35-0.45 |
0.5 |
0.45-0.55 |
20 |
0.864 |
0.76-0.96 |
0.4 |
0.35-0.45 |
0.50 |
0.45-0.55 |
19 |
0.956 |
0.86-1.06 |
0.4 |
0.35-0.45 |
0.50 |
0.45-0.55 |
18 |
1.067 |
0.97-1.27 |
0.4 |
0.35-0.45 |
0.5 |
0.45-0.55 |
17 |
1.19 |
1.09-1.29 |
0.4 |
0.35-0.45 |
0.65 |
0.60-0.72 |
16 |
1.34 |
1.24-1.44 |
0.4 |
0.35-0.45 |
0.65 |
0.60-0.72 |
15 |
1.5 |
1.30-1.70 |
0.4 |
0.35-0.45 |
0.65 |
0.60-0.72 |
14 |
1.68 |
1.48-1.88 |
0.4 |
0.35-0.45 |
0.65 |
0.60-0.72 |
13 |
1.93 |
1.73-2.13 |
0.4 |
0.35-0.45 |
0.65 |
0.60-0.72 |
12 |
2.16 |
2.06-2.36 |
0.4 |
0.35-0.45 |
0.65 |
0.60-0.72 |
11 |
2.41 |
2.21-2.61 |
0.4 |
0.35-0.45 |
0.65 |
0.60-0.72 |
10 |
2.69 |
2.49-2.89 |
0.4 |
0.35-0.45 |
0.65 |
0.60-0.72 |
9 |
3 |
2.70-3.30 |
0.5 |
0.45-0.55 |
0.65 |
0.60-0.72 |
8 |
3.38 |
3.08-3.68 |
0.5 |
0.45-0.55 |
0.65 |
0.60-0.72 |
7 |
3.76 |
3.46-4.06 |
0.5 |
0.45-0.55 |
0.65 |
0.60-0.72 |
6 |
4.22 |
3.92-4.52 |
0.5 |
0.45-0.55 |
0.65 |
0.60-0.72 |
5 |
4.720 |
4.42-5.02 |
0.5 |
0.45-0.55 |
0.65 |
0.60-0.72 |
4 |
5.28 |
4.98-5.08 |
0.5 |
0.45-0.55 |
0.65 |
0.60-0.72 |
3 |
5.94 |
5.64-6.24 |
0.5 |
0.45-0.55 |
0.65 |
0.60-0.72 |
2 |
6.6 |
6.38-6.98 |
0.5 |
0.45-0.55 |
0.65 |
0.60-0.72 |
1 |
7.470 |
7.02-7.82 |
0.5 |
0.45-0.55 |
0.65 |
0.60-0.72 |
0 |
8.38 |
7.98-8.78 |
0.5 |
0.45-0.55 |
0.65 |
0.60-0.72 |
5/16inches |
7.52 |
7.46-8.32 |
|
|
0.65 |
0.60-0.72 |
3/8 |
9.53 |
9.13-9.93 |
|
|
0.65 |
0.60-0.72 |
1.5mm red PVC insulation tube
Q : Are you a factory or trading company ?
A: We are a factory , can offer best quality product and reasonable price for you
Q: Can you accept sample order?
A: Yes, we accept samples with little and reasonable charge.
Q: What is your MOQ?
A: Normally,500 Meter per color.
Q:What is your delivery time?Can we short it in 7 days or less?
A: 3 days for sample, 3-25 days for mass production. (depend quantity)
Q: What is your payment terms?
A: T/T,Paypal(3% surcharge),Western Union
Q: How can I get my order?How can I know you sent the goods.
A: We will send you the goods by UPS, DHL, Fedex, Oversea Shipment or other forwarder, all with tracking number.
Q:How about your quality?
A: Try a small order, you will have your judgement!
WELCOME TO CONTACT LILY FREELY
1.5mm red PVC insulation tube
