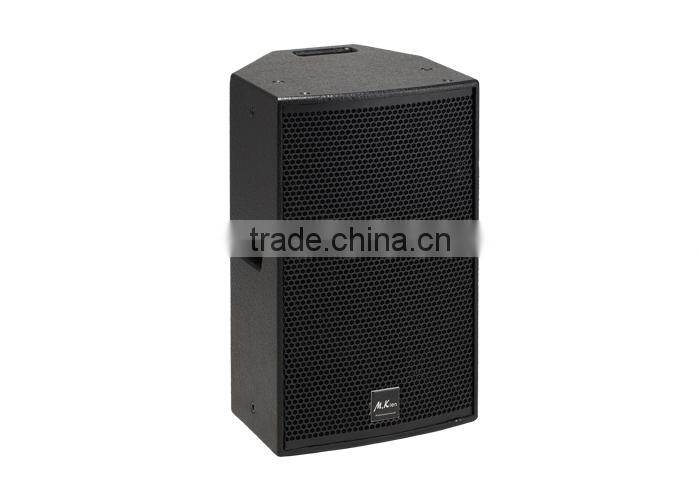

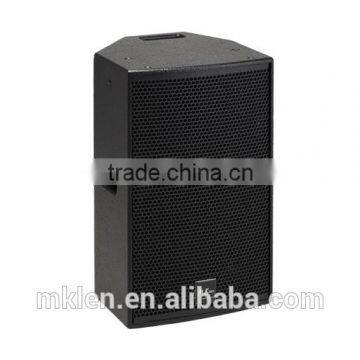

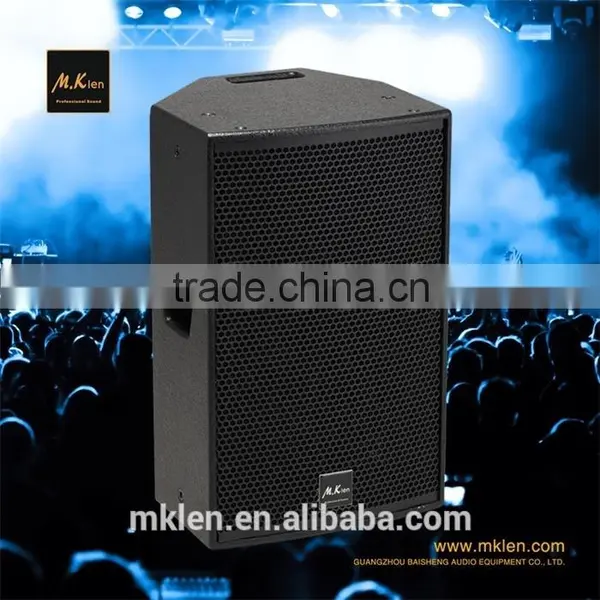

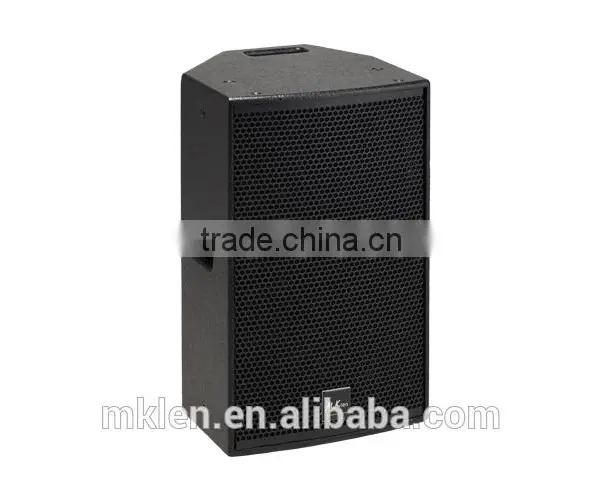

Help CenterRF-20TT+, Neodymium Speaker, 10 Inch Passive 2-way Full Range Loudspeaker, Professional Speaker
Related Products
-
RF-22TT+, Trade Assurance, 12 Inch Neodymium Loudspeaker, Stage Monitor SpeakerNegotiableMOQ: 10 Pieces -
RF-25TT+, Trade Assueance, 15 Inch Neodymium Speaker, Stage MonitorsNegotiableMOQ: 10 Pieces
-
RCF10, Trade Assurance, B&C Speaker, 10 Inch Passive 2-way Full Range LoudspeakerNegotiableMOQ: 10 Pieces
-
RCF12, Trade Assurance, 12 Inch Passive 2-way Full Range Loudspeaker, Pro AudioNegotiableMOQ: 10 Pieces
-
RCF15, B&c Driver, 15 Inch Passive 2-way Full Range Loudspeaker, Professional SpeakerNegotiableMOQ: 10 Pieces
[ Factory, EXW price, quickly shipment, alibaba trade assurance, 10 years of OEM ]:
RF-20TT+ loudspeaker descriptions:
1. RF-20TT+ is a versatile , 2-way passive system, designed to provide exceptional club sound reinforcement and stage monitoring from a very compact enclosure.
2. It features a powerful 10''(250mm) low frequency driver and a 1''(25mm) HF compression driver mounted on a constant directivity 80° x 60° horn.
3. Depending on the application, the HF horn can be rotated to allow the multi-angle enclosure to be used in either its vertical or horizontal orientation.
RF-20TT+ loudspeaker features:
1.Versatile, passive 2-way full range system, 1x10''LF + 1x1.7''HF, all Neodymium drivers, 300W - 600W.
2. Full sound, powerful bass, low distortion, pure and natural tone quality, light weight, easy to install safely.
3. The box is made of Birch plywood with the new Black Galaxy environmental protection JBL painting.
4. Best chioce for nightclubs, bars, Disco, theaters, concert halls, Band, multi-function halls, stage performance, wedding, home party, touring performance, etc.
RF-20TT+ loudspeaker specifications:
| TYPE | Compact ,two-way passive |
| FREQUENCY RESPONSE | 70Hz-20kHz±3dB |
| DRIVERS | LF:1x10″(250mm)/2.5″(65mm)voice coil LF driver |
| SENSITIVITY | 98dB/W/M |
| MAXIMUM SPL | 119dB continuous,125dB peak |
| NOMINAL IMPEDANCE | 8 ohms |
| RATED POWER | 300W RMS,600W peak |
| LF PASSBAND | 1x10'' , 8 ohms, Neodymium |
| HF PASSBAND | 1x1.7 , 8 ohms, Neodymium |
| FITTINGS |
8×M8,4xM8 threaded inserts 1×mounting pole socket |
| DISPERSION (-6dB) | 80°horizontal, 60°vertical |
| CONNECTORS | 3×Neutrik NL4 |
| DIMENSIONS (HxWxD) | 480x300x300mm |
| WEIGHT | 15kg |

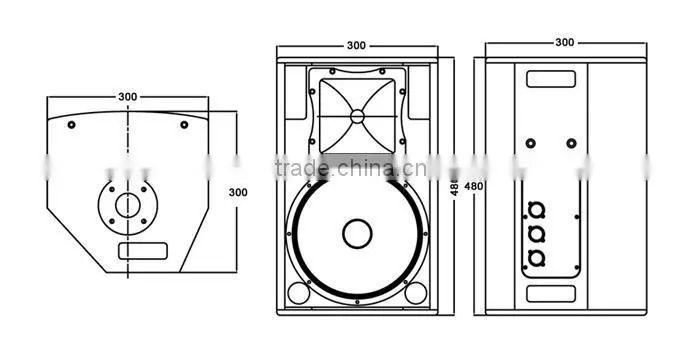

RF-20TT+ loudspeaker box design:
RF-20TT+ speaker driver configuration:

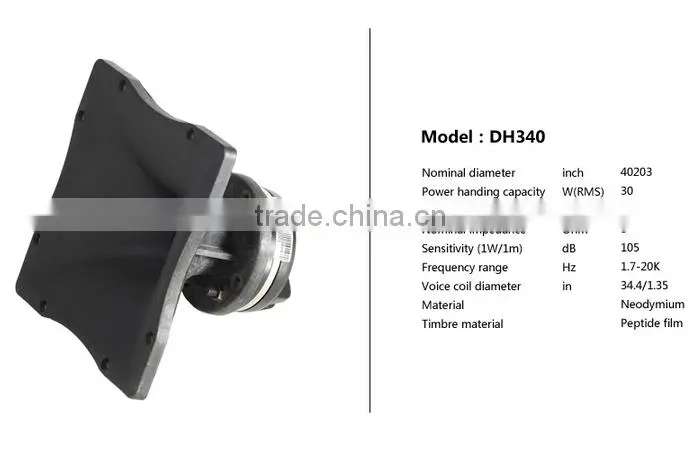

HF:

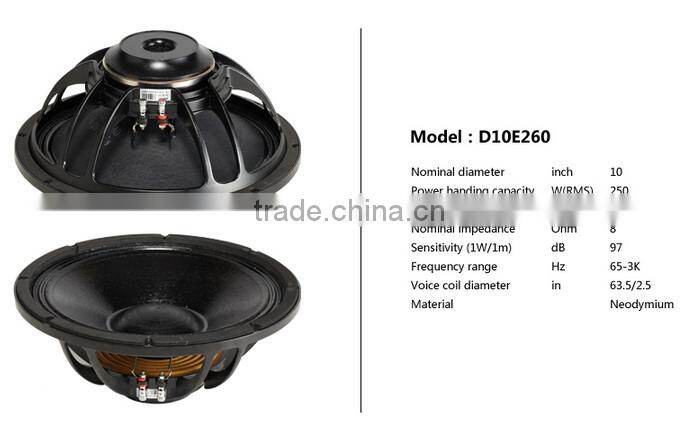

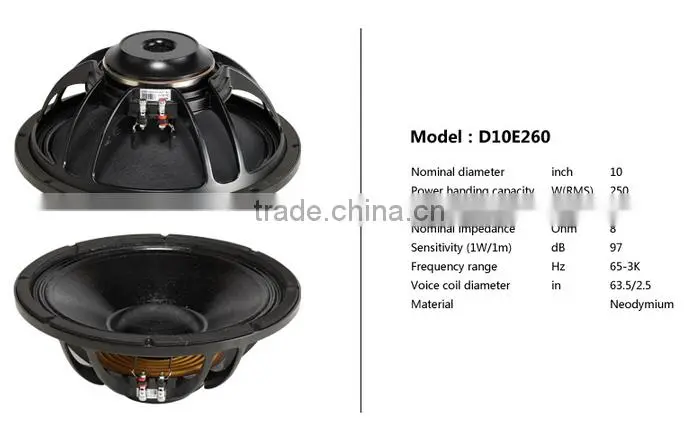

LF:
♥ OEM /ODM orders are warmly welcome ,we can make the varied designs according to your need. Besides, we service alibaba trade assurance.
♥ All the goods are inspected before shipment, so we can ensure the best quality of products .
♥Free warranty service for one year ,within this period ,you can enjoy free maintenance service by warranty cards and invoice if a failure occurs under normal operation.
♥ If you have any problems,please feel free to let us know, by e-mail, telephone ,skype, WhatsApp or the others ,we will reply you as soon as we can.
