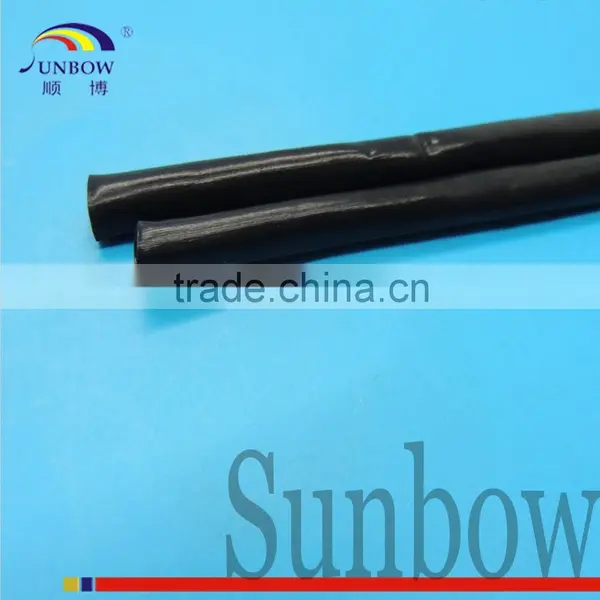

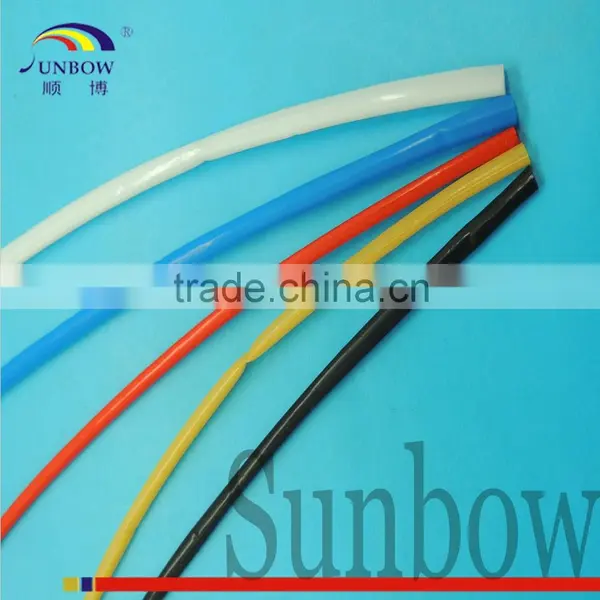

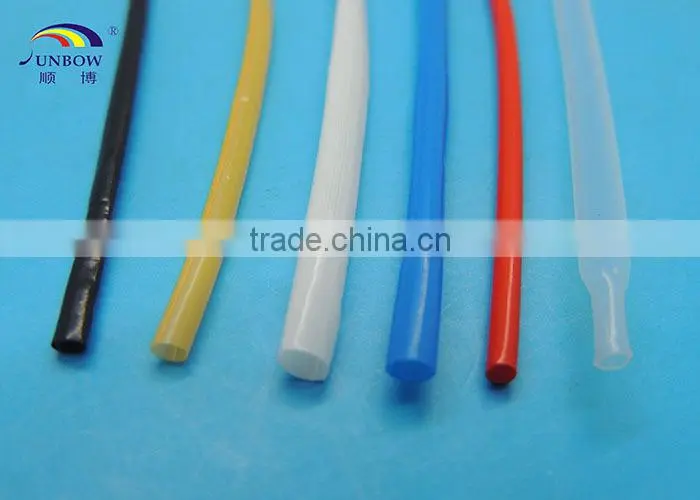

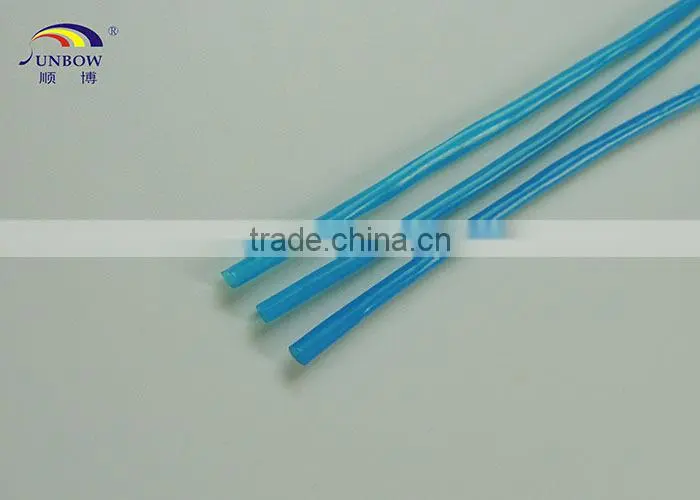

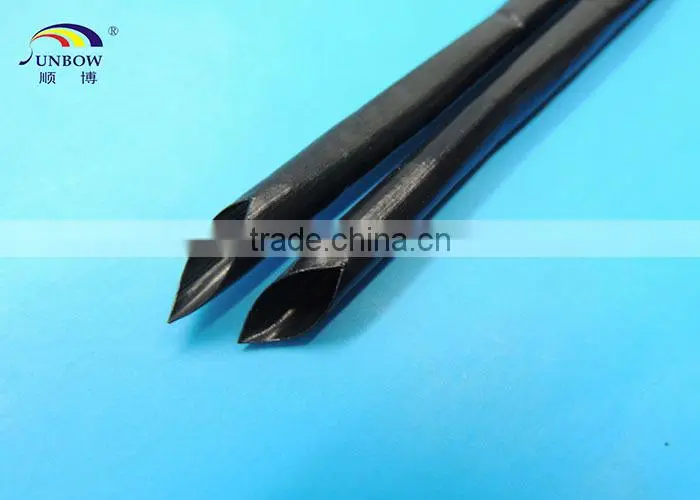

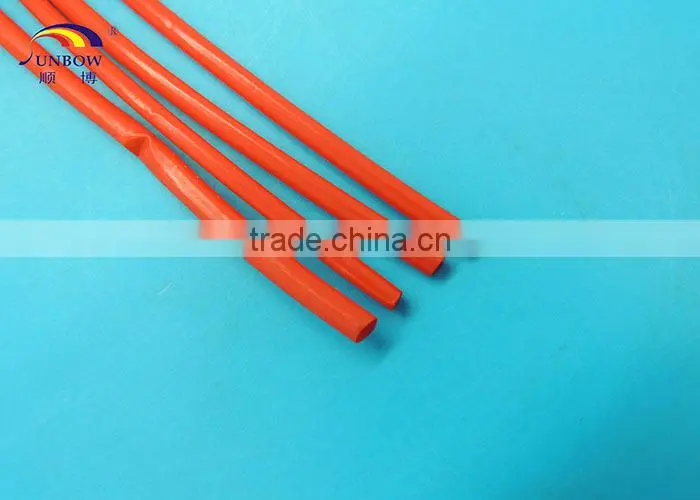

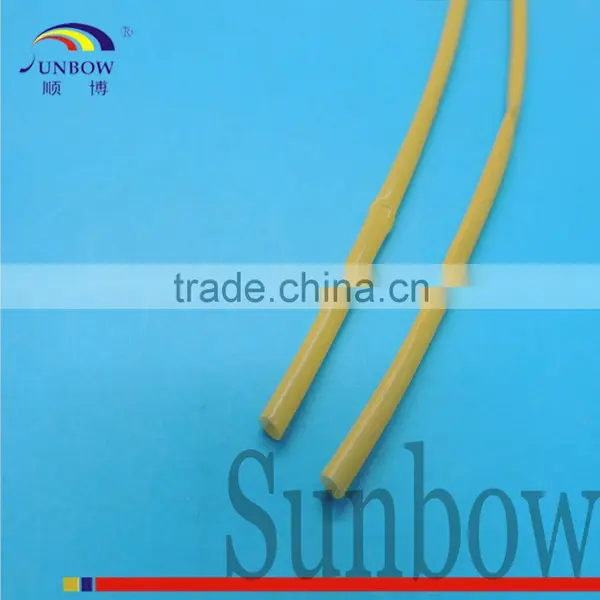

High Temperature Resistant Flexible PTFE Heat Shirink Tube
INTRODUCTION
High Temperature Resistant Flexible PTFE Heat Shirink Tube is applied imported polytetrafluoroethylene (PTFE). PTFE heat shrinkable tube has excellent chemical resistance, heat resistance, weather and corrosion resistance. It possesses excellent rigid and transparent. RoHS and Reach compliant.
WORKING CONDITIONS
Model Number: SB-PTFE-HST
Working Temperature: -80ºC ~ 260ºC
Shrink temperature: 320ºC ~ 380ºC
Shrink ratio: 1.7:1 /4:1
APPLICATION
High Temperature Resistant Flexible PTFE Heat Shirink Tube is widely used in electrical, computer, electro thermal, aerospace, military, and telecommunication etc. Such as mini-transformer, special sensor, artificial blood vessel.
SPECIFICATION
Melting |
≥450ºC |
Dielectric Constant (*)50HZ |
2.1 |
Rigidity |
85 |
Copper Corrosion |
No Corrosion |
Antibiotic Property, Erosion Resistance Property |
Excellent |
Toughness (Fold, Bend, Tear etc.) |
Excellent |
Tensile Strength MPA (KGF/cm) |
20.5 |
Breakdown Strength (KV/mm) |
30 |
Appearance |
Smooth, No Visible Fur and Defects, No Impurity |
Longitudinal Change (%) |
≤5% |
Elongation |
VW-1 |
Resistance |
Wear Resistant, Anti-acid and Anti-virus, Corona Discharge, Solvent Resistance, etc |
Environment |
No Hazardous to Humans and Environment |
DIMENSION
|
Size (mm) |
As Supplied Inside Diameter |
As Supplied Wall Thickness |
After Recovery Inside Diameter |
After Recovery Wall Thickness |
||
Thin Wall |
Thick Wall |
Thin Wall |
Thick wall |
|||
φ0.5 |
0.7±0.2 |
0.10±0.05 |
0.15±0.05 |
≤0.40 |
0.15±0.05 |
0.25±0.05 |
φ1.0 |
1.0±0.2 |
0.10±0.05 |
0.15±0.05 |
≤0.50 |
0.15±0.05 |
0.25±0.05 |
φ1.5 |
1.5±0.2 |
0.10±0.05 |
0.20±0.05 |
≤0.90 |
0.15±0.05 |
0.25±0.05 |
φ2.0 |
2.0±0.2 |
0.10±0.05 |
0.20±0.05 |
≤1.30 |
0.15±0.05 |
0.30±0.05 |
φ2.5 |
2.5±0.2 |
0.10±0.05 |
0.20±0.05 |
≤1.50 |
0.15±0.05 |
0.30±0.05 |
φ3.0 |
3.0±0.2 |
0.15±0.05 |
0.20±0.05 |
≤1.80 |
0.20±0.05 |
0.30±0.05 |
φ3.5 |
3.5±0.2 |
0.15±0.05 |
0.20±0.05 |
≤2.0 |
0.20±0.05 |
0.30±0.05 |
φ3.8 |
3.5±0.2 |
0.15±0.05 |
0.20±0.05 |
≤2.0 |
0.20±0.05 |
0.30±0.05 |
φ4.0 |
4.0±0.3 |
0.15±0.05 |
0.20±0.05 |
≤2.5 |
0.20±0.05 |
0.30±0.05 |
φ4.5 |
4.5±0.3 |
0.15±0.05 |
0.20±0.05 |
≤2.8 |
0.20±0.05 |
0.30±0.05 |
φ5.0 |
5.0±0.3 |
0.15±0.05 |
0.20±0.05 |
≤3.0 |
0.20±0.05 |
0.30±0.05 |
φ6.0 |
6.0±0.3 |
0.15±0.05 |
0.25±0.05 |
≤3.8 |
0.25±0.05 |
0.38±0.05 |
φ7.0 |
7.0±0.3 |
0.15±0.05 |
0.25±0.05 |
≤4.0 |
0.25±0.05 |
0.38±0.05 |
φ8.0 |
8.0±0.3 |
0.15±0.05 |
0.25±0.05 |
≤4.8 |
0.25±0.05 |
0.38±0.05 |
φ9.0 |
9.0±0.3 |
0.15±0.05 |
0.25±0.05 |
≤5.0 |
0.25±0.05 |
0.38±0.05 |
|
Size (mm) |
As Supplied Inside Diameter |
After Recovery Wall Thickness(mm) |
After Recovery Inside Diameter(mm) |
|
Thin Wall |
Thick Wall |
|||
Φ1.5 |
1.5±0.2 |
0.05 |
0.1 |
0.40±0.1 |
Φ2.0 |
2.0±0.2 |
0.05 |
0.12 |
0.50±0.1 |
Φ3.0 |
3.0±0.2 |
0.05 |
0.12 |
0.7±0.1 |
Φ4.5 |
4.5±0.2 |
0.05 |
0.12 |
1.2±0.1 |
Φ6.0 |
6.0±0.2 |
0.12 |
0.12 |
1.5±0.1 |
Φ7.0 |
7.0±0.3 |
0.12 |
0.15 |
2.8±0.1 |
SUNBOW STATEMENTS
1) We promise our clients excellent quality, reasonable price, perfect service and on-time delivery. We are committed to becoming a globally-outstanding and recognized leader in insulation sleeving industry, a preferred and qualified supplier of world-class manufacture and a well-known enterprise all over the world;
2) We promise all our products supplied are of high quality, environmental-friendly, safe and reliable. We always make our contribution to human and social harmony;
3) We promise that all our products follow close to the line of all applicable laws, rules and regulations, and any other related requirements;
4) We improve our equipment performance, make innovation in our technologies and upgrade our specifications continuously. We are keeping improving our products quality, saving energy, pursueing low-carbon economy and improving environmental-friendly and safe performance of the products;
5) We are committed to providing our staffs with effective and comprehensive training and corresponding resources to improve their skills and their awareness of health, safety and environmental protection. We apply ourselves to improve our staffs' professional skills and quality to ensure that they can improve working performance and career competitiveness.
YOU CAN SEND YOUR DETAILED INQUIRY FOR FREE SAMPLES AND PLEASE CLICK "SEND" NOW!
