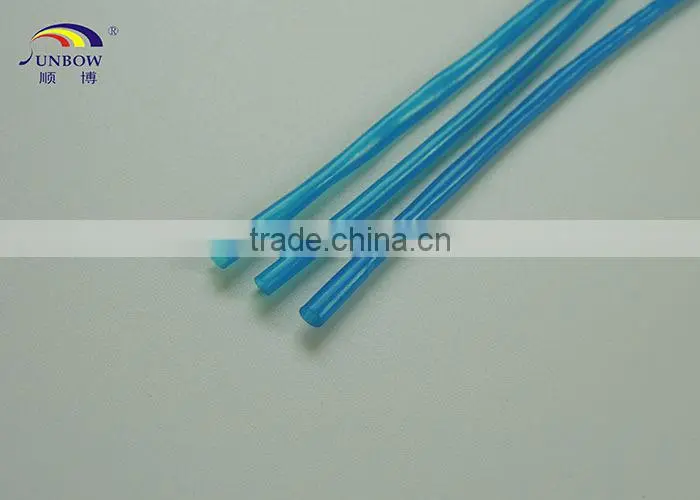

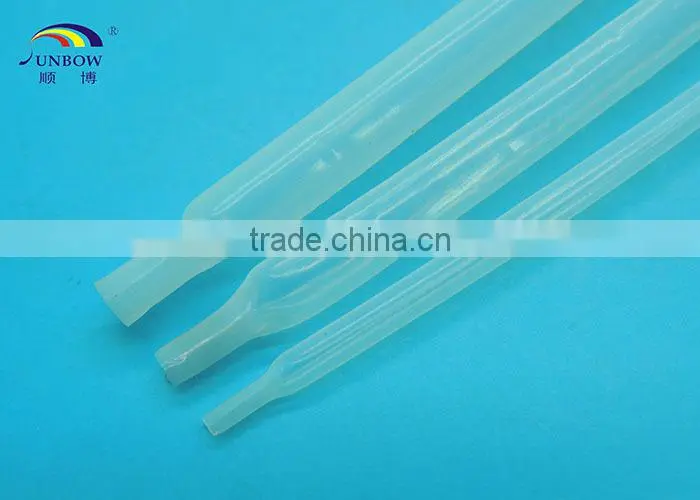

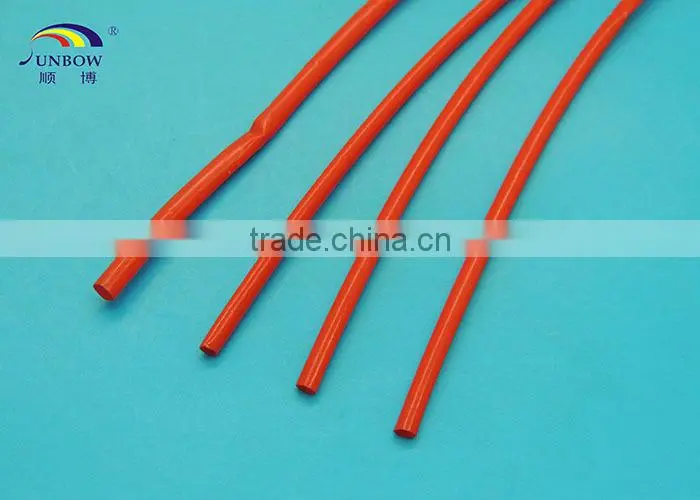

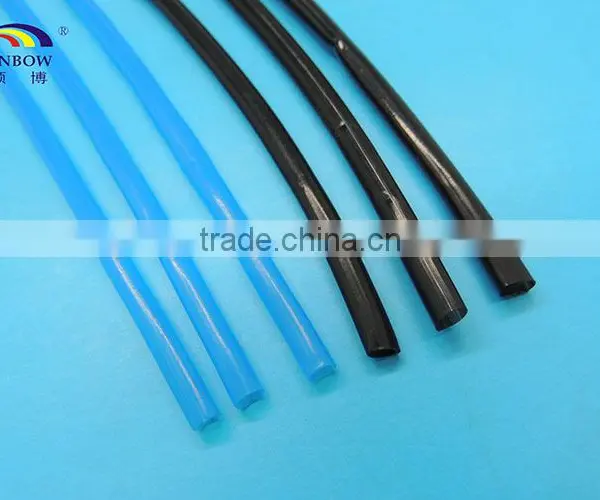

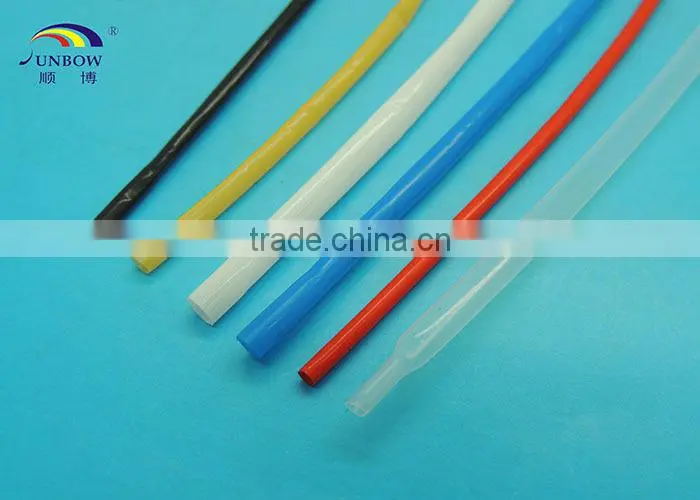

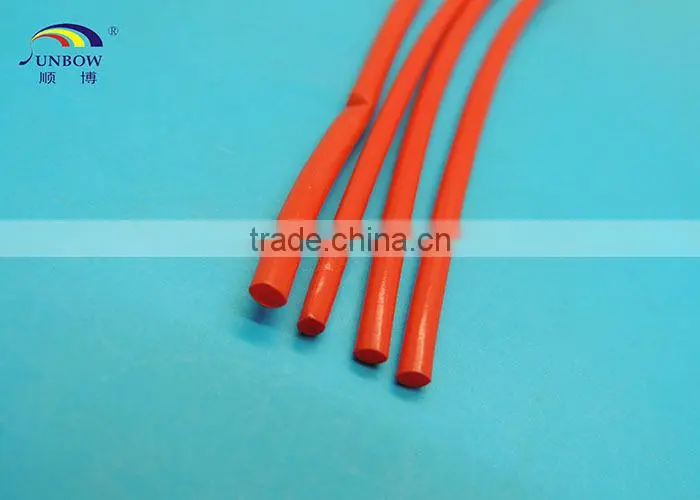

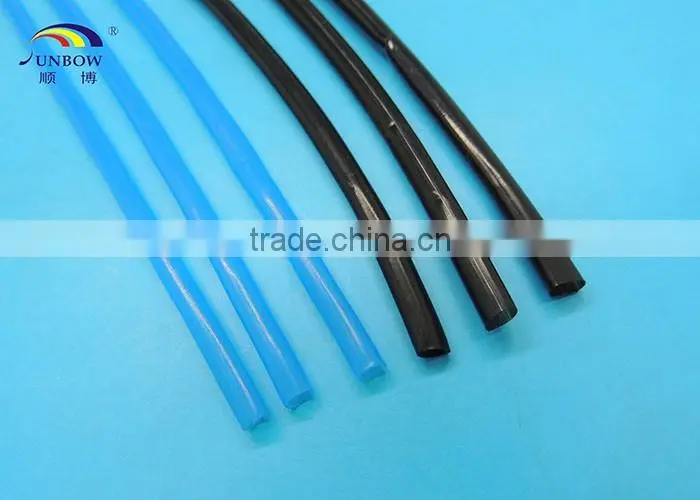

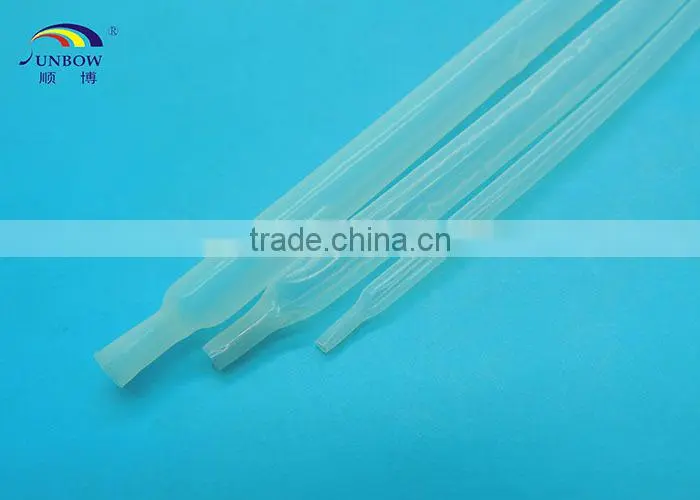

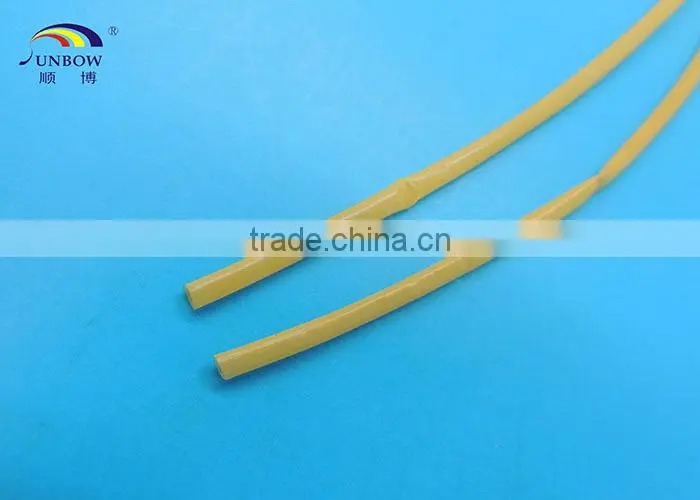

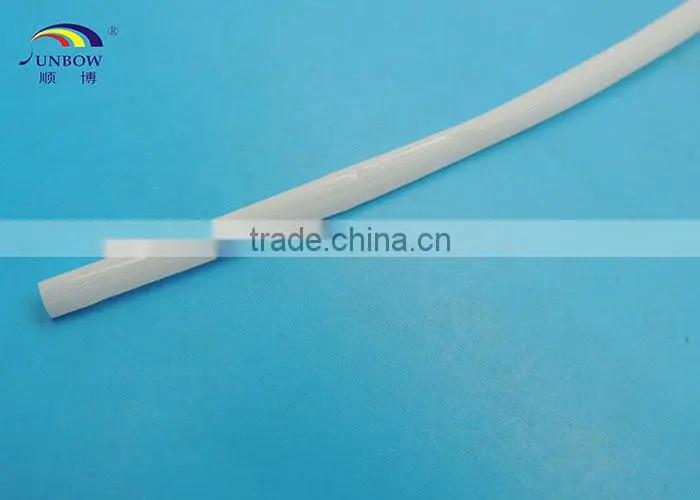

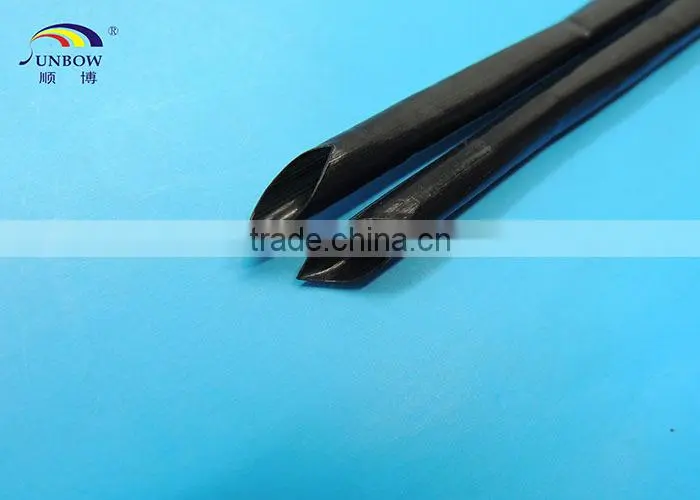

SUNBOW Thin Wall Heat Resistant Flame Retarding Kynar/PVDF Heat Shrink Tubing
1. Model
SB-PVDF-HST
2. Working Temperature
-55C ~ 175C
3. Product Description
SUNBOW Thin Wall Heat Resistant Flame Retarding Kynar/PVDF Heat Shrink Tubing is a thin wall heat shrink tube which is made of modified polyvinylidene fluoride. It has clear and flame retardant properties and can be used in high temperature condition for a long time.
4. Characteristics
1) clear and flame retardant
2) high temperature resistance
3) cutting resistance
4) wearproof, oil resistance and chemical solvent resistance
5) ROHS UL 224 VW-1 flame retardant rating
5. Specification
| Performance | Parameters | Testing Method |
| Ratio | 1.78g/cm3 | ASTM D 791 |
| Tensile Strength | ≥30MPa | ASTM D 2671 |
| Breaking Elongation(after aging) | ≥100% | 250°c*168h |
| Volume Resistivity | ≥1013Ω cm | IEC 60093 |
| Flammability | UL 224 VW-1 | UL 224 VW-1 |
| Cold Bending Resistance | No Crack | -55°c*4h |
| Heat Shock | No Crack | 250°c*4h |
| Copper Corrosion | No Corrosion | 180°c*168h |
| Copper stability | No Degradation | 180°c*168h |
6. Dimension
| Specification (before shrink) | Specification (after shrink) | Shape | Package (m/roll) | ||
| Metric ID (mm) | English ID (inch) | Metric ID (mm) | Wall Thickness (mm) | ||
| Φ1.2 | 3/64 | 0.6 | 0.25±0.05 | round | 200 |
| Φ1.6 | 1/16 | 0.8 | 0.25±0.05 | round | 200 |
| Φ2.4 | 3/32 | 1.2 | 0.25±0.05 | round | 200 |
| Φ3.2 | 1/8 | 1.6 | 0.25±0.05 | round | 100 |
| Φ4.8 | 3/16 | 2.4 | 0.25±0.05 | round | 100 |
| Φ6.4 | 1/4 | 3.2 | 0.25±0.05 | round | 100 |
| Φ9.5 | 3/8 | 4.8 | 0.25±0.05 | flat | 50 |
| Φ12.7 | 1/2 | 6.4 | 0.25±0.05 | flat | 50 |
| Φ19.1 | 3/4 | 9.5 | 0.25±0.05 | flat | 50 |
| Φ25.4 | 1 | 12.7 | 0.25±0.05 | flat | 50 |
| Φ38.1 | 1-1/2 | 19.1 | 0.25±0.05 | flat | 50 |
7. Application
SUNBOW Thin Wall Heat Resistant Flame Retarding Kynar/PVDF Heat Shrink Tubing is widely used in high temperature conditions, welding points, terminal and connection cables which can be easily eroded by industrial fuel, solvent and chemical solvents.
