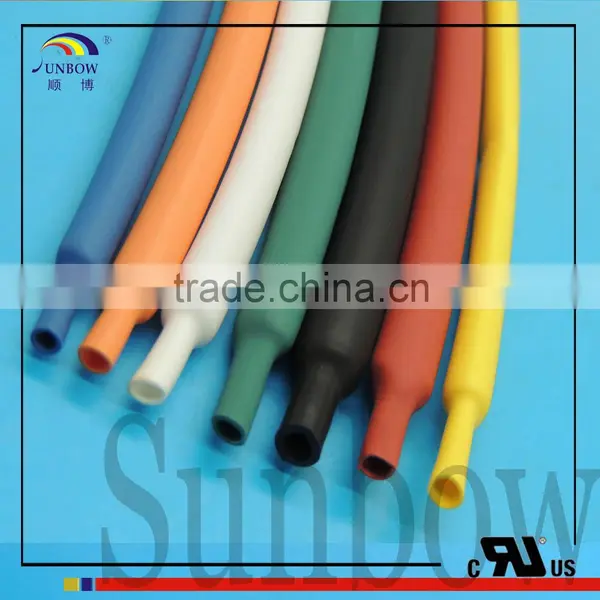

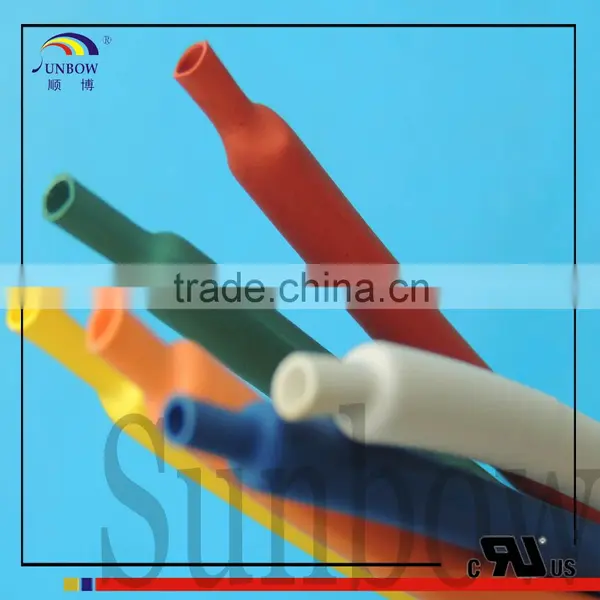

Halogen free Flame-retardant normal wall heat shrinkable tube 25mm#SB-RSFR-125H
Model Number: SB-RSFR-125H
Working temperature:-45-125 degree
Structure
Halogen free flame-retardant heat shrinkable tube is made of eco-friendly cross-linking polyolefin material under irradiation.It has environment-friendly,flexible,flame retardant,quick shrink and stable performances.Also,it has electrical insulation,welding point anticorrosion and antirust and mechanical performances.It has passed UL,RoHS,REACH certifications for 300 V and 600 V.
Usage
Widely used in electronics,telecommunication,automobiles,shipping and other manufacturing industries.
Dimension
| Inside diameter | As supplied(mm) | After Recovery | Standard Package m/sool |
Application Range(mm) | ||
| Inner Diameter | Wall thickness | inner diameter | wall thickness | |||
| ∅0.6 | 0.9±0.2 |
0.20±0.05 | ≤0.40 | 0.33±0.10 | 400 | 0.4-0.7 |
| ∅0.8 | 1.1±0.2 | 0.20±0.05 | ≤0.50 | 0.33±0.10 | 400 | 0.6-0.8 |
| ∅1.0 | 1.5±0.2 | 0.20±0.05 | ≤0.65 | 0.36±0.10 | 400 | 0.75-0.9 |
| ∅1.5 | 2.0±0.2 | 0.20±0.05 | ≤0.85 | 0.36±0.10 | 400 | 0.95-1.4 |
| ∅2.0 | 2.5±0.2 | 0.23±0.05 | ≤1.00 | 0.45±0.10 | 400 | 1.1-1.8 |
| ∅2.5 | 3.0±0.2 | 0.23±0.05 | ≤1.30 | 0.45±0.10 | 400 | 1.35-2.3 |
| ∅3.0 | 3.5±0.2 | 0.23±0.05 | ≤1.50 | 0.45±0.10 | 400 | 1.6-2.7 |
| ∅3.5 | 4.0±0.2 | 0.23±0.05 | ≤1.80 | 0.45±0.10 | 400 | 1.85-3.2 |
| ∅4.0 | 4.5±0.2 | 0.25±0.05 | ≤2.00 | 0.45±0.10 | 400 | 2.1-3.6 |
| ∅4.5 | 5.0±0.2 | 0.28±0.05 | ≤2.30 | 0.56±0.10 | 200 | 2.35-4.0 |
| ∅5.0 | 5.5±0.2 | 0.28±0.05 | ≤2.50 | 0.56±0.10 | 200 | 2.6-4.5 |
| ∅6.0 | 6.5±0.2 | 0.28±0.05 | ≤3.00 | 0.56±0.10 | 200 | 3.1-5.4 |
| ∅7.0 | 7.5±0.2 | 0.28±0.05 | ≤3.50 | 0.56±0.10 | 100 | 3.7-6.3 |
| ∅8.0 | 8.5±0.3 | 0.30±0.08 | ≤4.00 | 0.56±0.10 | 100 | 4.2-7.2 |
| ∅9.0 | 9.5±0.3 | 0.30±0.08 | ≤4.50 | 0.56±0.10 | 100 | 4.7-8.0 |
| ∅10.0 | 10.5±0.3 | 0.30±0.08 | ≤5.00 | 0.56±0.10 | 100 | 5.2-9.0 |
| ∅11.0 | 11.5±0.3 | 0.30±0.08 | ≤5.50 | 0.56±0.10 | 100 | 5.7-10 |
| ∅12.0 | 12.5±0.3 | 0.30±0.08 | ≤6.00 | 0.56±0.10 | 100 | 6.2-11 |
| ∅13.0 | 13.5±0.3 | 0.30±0.08 | ≤6.50 | 0.56±0.10 | 100 | 6.7-12 |
| ∅14.0 | 14.5±0.3 | 0.35±0.10 | ≤7.00 | 0.70±0.10 | 100 | 7.3-13 |
| ∅15.0 | 15.5±0.4 | 0.35±0.10 | ≤7.50 | 0.70±0.10 | 100 | 7.8-14 |
| ∅16.0 | 16.5±0.4 | 0.35±0.10 | ≤8.00 | 0.70±0.10 | 100 | 8.3-15 |
| ∅17.0 | 17.5±0.4 | 0.35±0.10 | ≤8.50 | 0.70±0.10 | 100 | 8.8-16 |
| ∅18.0 | 19.0±0.5 | 0.35±0.10 | ≤9.00 | 0.70±0.10 | 100 | 9.3-17 |
| ∅20.0 | 22.0±0.5 | 0.35±0.10 | ≤10.00 | 0.83±0.15 | 100 | 10.4-19 |
| ∅22.0 | 24.0±0.5 | 0.40±0.12 | ≤11.00 | 0.83±0.15 | 100 | 11.4-21 |
| ∅25.0 | 26.0±0.5 | 0.40±0.12 | ≤12.50 | 0.90±0.15 | 50 | 12.8-24 |
| ∅28.0 | 29.0±0.5 | 0.45±0.12 | ≤14.00 | 0.90±0.15 | 50 | 14.4-29 |
| ∅30.0 | 31.5±1.0 | 0.45±0.12 | ≤15.00 | 1.00±0.15 | 50 | 16-29 |
| ∅35.0 | 36.5±1.0 | 0.45±0.12 | ≤17.50 | 1.00±0.15 | 50 | 18-34 |
| ∅40.0 | 41.5±1.0 | 0.45±0.12 | ≤20.00 | 1.00±0.15 | 25 | 21-39 |
| ∅45.0 | 46.5±1.0 | 0.50±0.15 | ≤22.5 | 1.00±0.15 | 25 | 23.5-44 |
| ∅50.0 | ≥50 | 0.50±0.15 | ≤25.0 | 1.10±0.15 | 25 | 26-49 |
| ∅60.0 | ≥60 | 0.60±0.15 | ≤30.0 | 1.20±0.15 | 25 | 35-55 |
| ∅70.0 | ≥70 | 0.65±0.15 | ≤35.0 | 1.30±0.20 | 25 | 40-65 |
| ∅80.0 | ≥80 | 0.65±0.15 | ≤40.0 | 1.30±0.20 | 25 | 45-75 |
| ∅90.0 | ≥90 | 0.65±0.15 | ≤45.0 | 1.30±0.20 | 25 | 50-85 |
| ∅100.0 | ≥100 | 0.65±0 | ≤50.0 | 1.30±0.20 | 25 | 55-95 |
Shenzhen Sunbow insulation Materials MFG Co.,Ltd, established in 2003,mainly engaged in the research& development ,
manufacture and sales of various insulation sleeving.
With occupied area 10000 squre meters,we had R&D engineers,had a batch of advantageous equipment and testing
instruments.Now we have excess of 10 independent patents,gained high-tech enterprise in Shenzhen.
Packing is by rolls or cut upon request. 5 rolls per ctn.
1. Why choose us?
We are the No.1 fibeglass sleeve coated silicone resin in China.
2. What material do you use?
Fiberglass yarn and silicone resin,PVC,silicone,PE,PET
Rohos,Reach,UL certificated
3. How's the package?
Packed by roll then rolls by carton. Also can cut and pack as requested.
4. Where is your factory?
In Shenzhen. The loading port here is Yantian or Shekou.
5. How many employees are there in your company?
More than 100.
6. How many people are there in your R&D department?
More than 10 desingers,.
7. How do you control the quality?
We have 10 QC team.
Each process has one QC. We check carefully before shipment.
8. What’s your quality guarantee?
2 years.
9. What’s your sample lead time?
can ship right now if in the stock.5 working days if the items are in stock.
10. Is the sample free charge?
Yes,it is free but the express fee should be paid by buyer.
11.What’s your mass production lead time?
2-7 working days.
12. What’s your payment terms?
L/C at sight, T/T in advance,Western Union,Paypal.
Shenzhen Sunbow Insulation Materials MFG Co.,Ltd.(Head Office)
ADD:Sunbow industrial Park ,No.8,2 second Industrial Park,Xiacun Community,Gonming,Guangming New District,Shenzhen
Tel:+86 755 27160885/27160865
FAX:+86 755 27160896
Email:sales at
Halogen free Flame-retardant normal wall heat shrinkable tube 25mm#SB-RSFR-125H
