[ Factory, EXW price, quickly shipment, trade assurance, 10 years of OEM ]:
Descriptions:
1.Four way passive, utdoor line array system,2*10''LF+2*6.5''MF+2*1.7''HF,800W-1600W power.
2.Great dynamic volume, full sound, reply spectrum signal perfectly.
3.Outdoor/indoor line array system,best choice for disco, club, concert halls, church, theaters, stage, touring concert, outdoor plaza, gymnasium and large scale outdoor performances.
4.The hanging system adopt newest humanized design,making the whole system easy to install and safely.
Specifications:
|

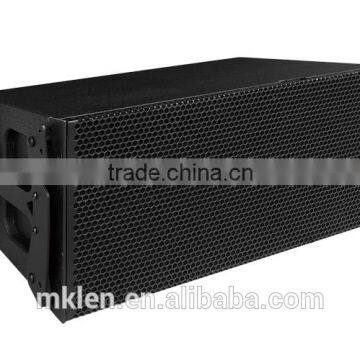

M100MKII is a line array loudspeaker for long throw distance sound reinforement.Using the M100MKII Flying Frame it can be flown in vertical columns with up to 16 cabinets. M100MKII is a four-way designed by housing fitted with two 10''LF drivers,two 6.5''MF drivers and two 1.7'' HF drivers.The cylindrical wave segements of each cabinet can couple without gaps coherently.Angels between adjacent cabinets can be set in the range from 0°to 5°. | |
| TYPE | compact,four-way passive |
| FREQUENCY RESPONSE(-10dB) | 65Hz-19Hz |
| FREQUENCY RESPONSE(-3dB) | 70Hz-19Hz |
| SYSTEN INPUT POWER RATING | 750W RMS, 1500W peak |
| MAX SPL | 128dB count 134dB peak |
| HORIZONTAL COVERAGE ANGEL | ≥75° |
| VERTICAL COVERAGE ANGEL |
change according to different quantity configuration |
| LF POWER HANDING | 2x250W cont,1000W peak |
| MF POWER HANDING | 2x120w cont,480w peak |
| HF POWER HANDING | 2x45w cont,180w peak |
| SENSITIVITY(LF/MF/HF) | 97/96/106dB |
| LF TO MF CROSSOVER FREQ | 300-600Hz |
| MF TO HF CROSSOVER FREQ | 1700Hz passive or zctive |
| LF PASSBAND | 2x10'',8 ohms,Ferrite driver |
| MF PASSBAND | 2x6.5'',16 ohms,Ferrite driver |
| HF PASSBAND | 2x1.7'',16 ohms,Neodymium driver |
| CONNECTORS | Neutrik:2xEP8 |
| INSTALL DIM(HxWxD) | 300x445x1002mm |
| MET WEIGHT | 43kg |
M100MKII line array:
♥ OEM /ODM orders are warmly welcome ,we can make the varied designs according to your need. Besides, we service alibaba trade assurance.
♥ All the goods are inspected before shipment, so we can ensure the best quality of products .
♥Free warranty service for one year ,within this period ,you can enjoy free maintenance service by warranty cards and invoice if a failure occurs under normal operation.
♥ If you have any problems,please feel free to let us know, by e-mail, telephone ,skype, WhatsApp or the others ,we will reply you as soon as we can.
