[ Factory, EXW price, quickly shipment, alibaba trade assurance, 10 years of OEM ]:
Descriptions:
1.two-way passive,dual 6.5'' line array system,400W-800W power.
2.Great dynamic volume, full sound, long throw distance, reply spectrum signal perfectly.
3. Line array system,best choice for multi-function hall, stage,gymnasium and large scale performances.
4.The hanging system adopt newest humanized design,making the whole system easy to
install and safely.
Specifications:
|

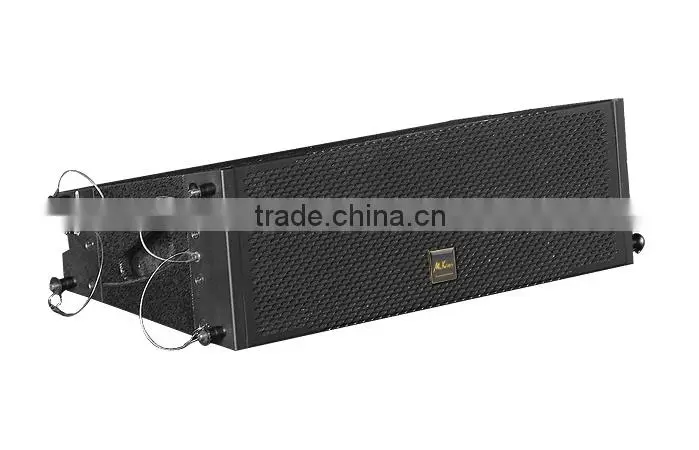

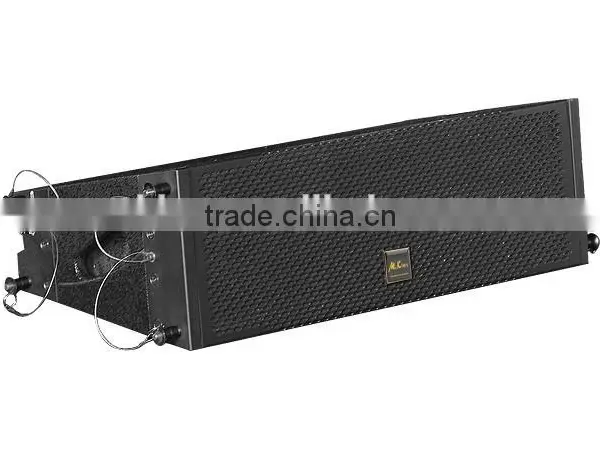

M60MKII is a line array loudspeaker for long throw distance sound reinforcement. Using the M60MKII Flying Frame it can be flown in vertical columns with up to 16 cabinets. M60MKII is a Two-way design housing fitted with two 6.5" LF drivers and one HF 1.7" drivers. The cylindrical wave segments of each cabinet can couple without gaps coherently angles between adjacent cabinets can be set in the range from 0° to 5°. | |
| Type | Compact, Two-way passive |
| Frequency Response (-10dB) | 70 Hz-18k Hz |
| Frequency response(-3dB) | 75 Hz-18kHz |
| Rated power | 400W RMS, 800W Peak |
| Max Calculated SPL | 124 dB Cont 130dB Peak |
| Horizontal coverage | ≥100° |
| Vertical coverage |
Vertical coverage angel according to the different quantity configuration |
| LF Power Handing | 2x200W Cont, 800W Peak |
| HF Power Handing | 1x45W Cont, 90W Peak |
| Sensitivity (LF/HF) | 98/105dB |
| LF to HF crossover Freq | 1750Hz |
| LF Passband | 2x6.5" , 8ohms/pcs, Ferrite |
| HF Passband | 1x1.7" , 8ohms/pcs, Ferrite |
| Connectors | Neutrik: 2*NL4 |
Install Dim |
(H)225X(W)350X(D)680mm |
| Net weight | 18kg |
| Range Inputs | ±1: LF |
| ±2: HF | |
Professionalline array speakers:

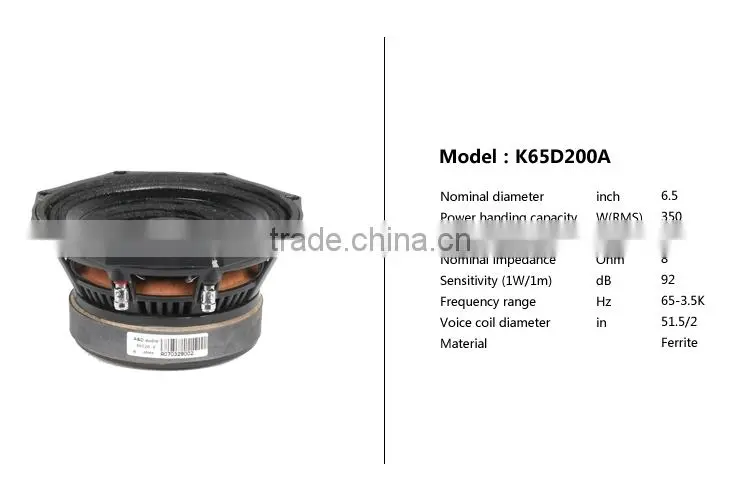

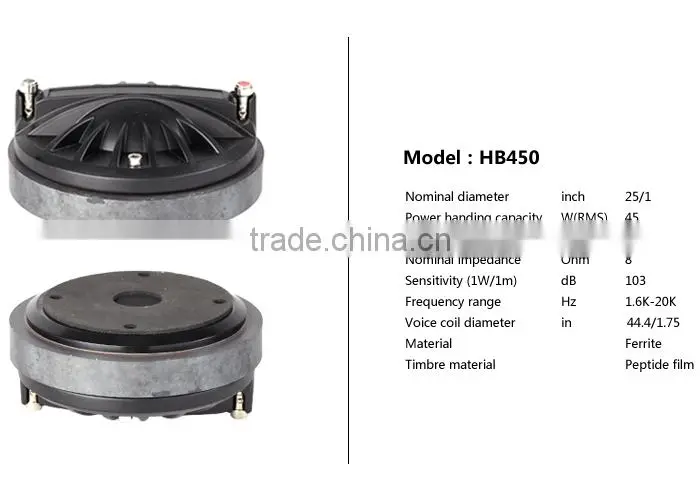

driver configuration:
♥ OEM /ODM orders are warmly welcome ,we can make the varied designs according to your need. Besides, we support Alibaba Trade Assurance.
♥ All the goods are inspected before shipment, so we can ensure the best quality of products .
♥ Free warranty service for one year ,within this period ,you can enjoy free maintenance service by warranty cards and invoice if a failure occurs under normal operation.
♥ If you have any problems,please feel free to let us know, by e-mail, telephone ,skype, WhatsApp or the others ,we will reply you as soon as we can.
