M100MKII dual 10" loudspeaker line array
- 300 Piece / Pieces per Month
- Guangzhou/ Huangpu
- Credit Card PayPal
Product Details
Place of Origin: | Guangdong, China | Brand Name: | M.Klen | Model Number: | M100MKII |
Product Description
1. M100MKII is a line array loudspeaker for long throw distance sound reinforcement.
2. Using the M100MKII Flying Frame it can be flown in vertical columns with up to 16 cabinets.
3. M100MKII is a Four-way design housing fitted with two 10" LF drivers, Two 6.5" Mid drivers and Two HF 1.7" drivers.
4. The cylindrical wave segments of each cabinet can couple without gaps coherently angles between adjacent cabinets can be set in the range from 0° to 5°.
M100MKII line array features:
♣ A double 10" 3-way passive stage speaker, 750-1500watts, with two 10" LF Neodymium, two 6.5" MF and two 1.7" HF drivers.
♣ Strong penetrating, high fidelity and low distortion, clear, pure and natural tone quality.
♣ With multilayer plywood, environmental textured black painting, newest humanzied design, simple and esay for rigging.
♣ Widely used in AV application system, outdoor & indoor performance, large wedding, stage, theater, clubs, discos ect.
M100MKII line array specifications:
TYPE | Compact, Four-way passive |
Frequency response(-10dB) | 65 Hz-19kHz |
Frequency response(-3dB) | 70 Hz-19kHz |
System Input Power Rating | 750W Continuous 1500W Peak |
Maximum Calculated SPL | 128dB Cont 134dB Peak |
Horizontal Coverage | ≥75° |
Vertical Coverage | Vertical coverage angle hange according to the different quantity configuration. |
LF Power Handing | 2 × 250W Cont, 1000W Peak |
MF Power Handing | 2 × 120W Cont, 480W Peak |
HF Power Handing | 2 × 45W Cont, 180W Peak |
Sensitivity (LF/MF/HF) | 97/96/106dB |
LF to MF crossover Freq | 300-600Hz |
MF to HF crossover Freq | 1700Hz Passive or Active |
LF Passband | 2×10"K10E260, 8ohms, Ferrite |
MF Passband | 2×6.5"M6C810-16, 16ohms,Ferrite |
HF Passband | 2×1.7"DH450E-16, 16ohms, Neodymium |
Connectors | Neutrik: 2*EP8 |
Dimensions | (H)300x(W)445x(D)1002MM |
Weight | 43 kg |
Range Inputs | ±1:LF(1) |
| ±2:LF(2) |
| ±3:MF |
| ±4:HF |
♦ Our factory supports Alibaba Trade Assurance, 100% product quality protection.
♦ OEM or ODM orders are warmly welcomed, we could produce varies speakers according to your drawings.
♦ Offer 1year free warranty, except the man-made damaged.
♦ All the products will be tested and inspected before the delivery.

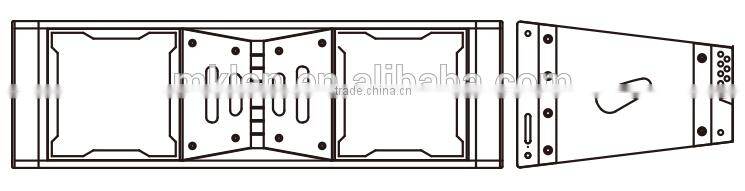

M100MKII line array box design:
